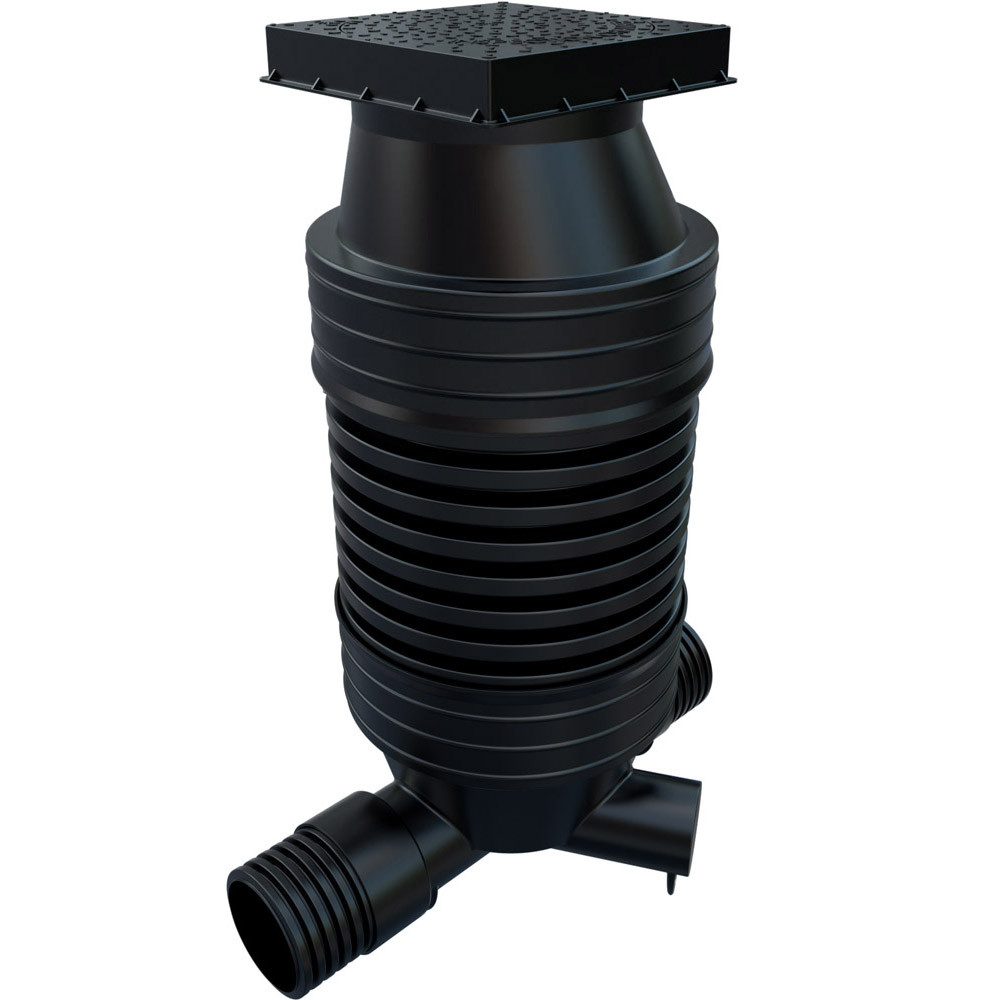

Accesso 1.5m Deep 600mm PPIC Inspection Chamber with 225mm Outlet

Name: Accesso 1.5m Deep 600mm PPIC Inspection Chamber with 225mm Outlet
Brand: Turtle
SKU: AIC600225B/1.5
Price: 689.94 GBP
Availability: InStock

Code:

AIC600225B/1.5

Brand:

Turtle

This 1.5m Deep 600mm PPIC Inspection Chamber with a 225mm Outlet is UK-made, easy to install and requires no construction or wet trades. It comes delivered as a comprehensive single-piece unit and delivers considerable onsite savings compared to precast concrete and more tradi... Read More

View full product details

View questions about this product

£689.94 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Jerry Reeve

Description

Relatively lightweight with no machinery or lifting equipment needed, this model has 225mm Twinwall main channel rocker pipe connections, as well as two optional side inlets that are moulded blanked. This allows for seamless opening and fitting with 150mm Twinwall rocker pipes, or a wall seal can accomplish 110mm or 160mm smooth pipe connections.

Features & Benefits: Turtle Enviro Accesso 600mm Single Piece Adoptable Inspection Chamber for 225mm Twinwall - 1500mm Depth

Single unit with no assembly needed
Effortless to install without machinery or lifting equipment
Stepped base with a 90mm step from side to main channel
Access shafts can be cut onsite to necessary depth
1475mm Inlet Invert and 1240mm Inlet Soffit Depth
1230mm x 918mm x 1530mm (Length x Width x Height)
225mm Twinwall Rocker pipes on main channel for pipe connections
Weighs 34kg

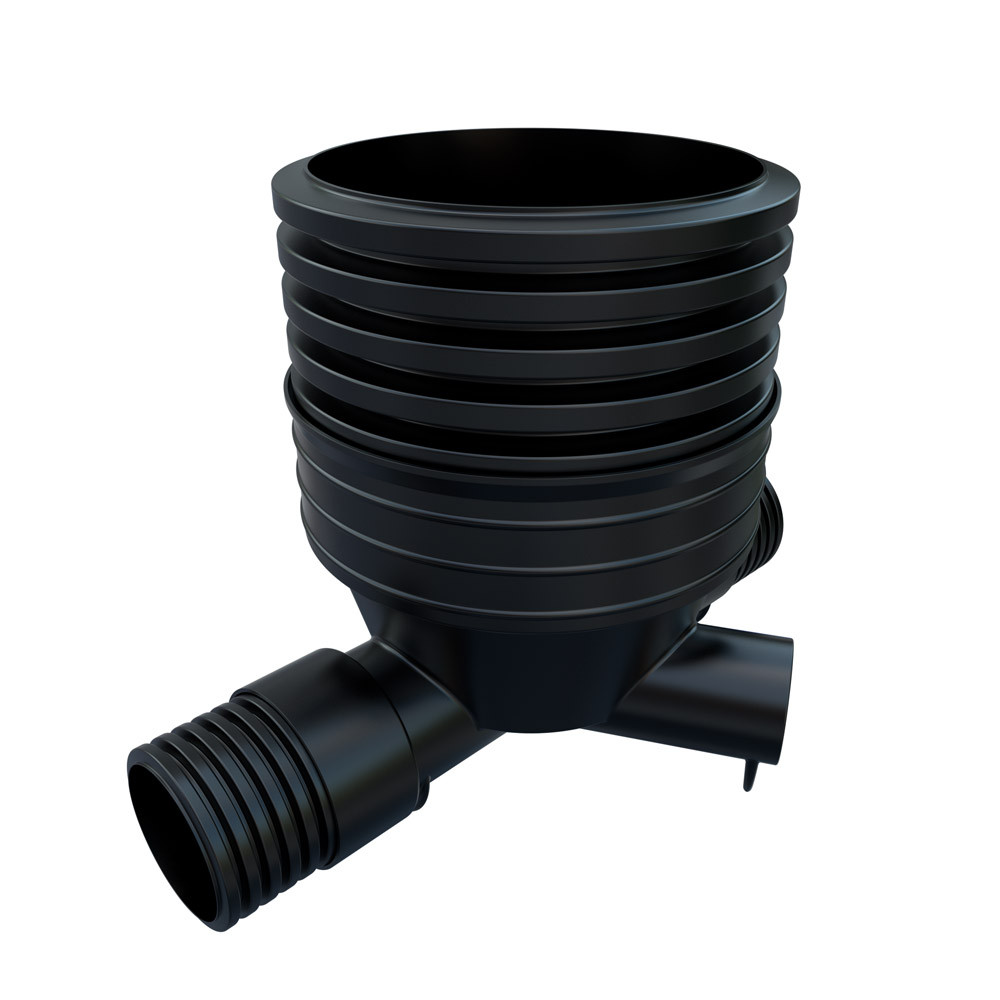

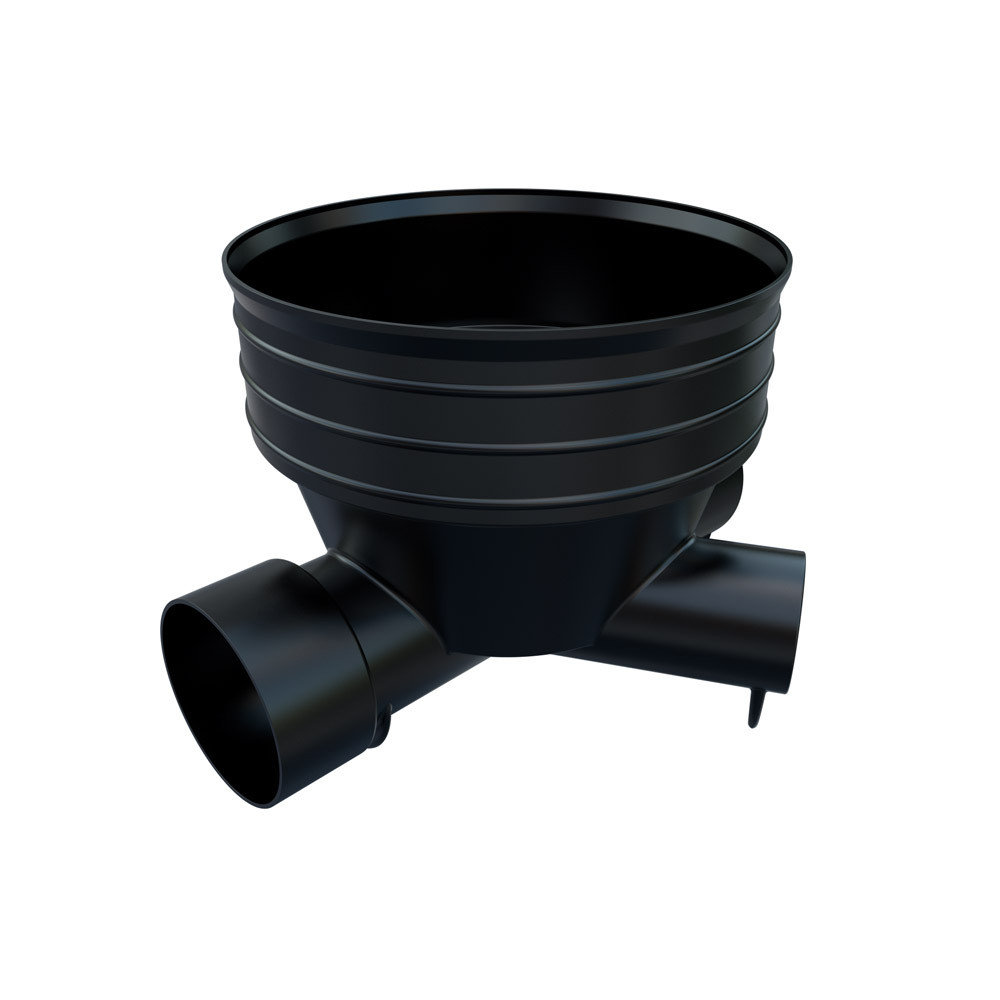

This Single-Piece Adoptable Inspection Chamber has a 600mm chamber diameter and a 1.5m depth. Chamber bases can be used individually for shallow invert installations or PCC Manhole bases for a preformed option to labour-demanding benching. With an injection moulded chamber base, this product includes a stepped base that complies with Design and Construction Guidance (DCG) needs for Adoptable Sewers and Sewers for Adoption (SfA7).

Standards & Certification

Meets DCG requirement for Adoptable Sewers

Please note:

A range of Accesso pipework adaptors are also available to suit alternative connections. Notably, the side inlet connections, if required, are not compatible with 150mm MetroDrain pipework.
The depth of this product refers to the distance between the top and bottom of the unit. The invert, meanwhile, refers to the distance between the top of the unit and the bottom of the inside of the connecting inlet pipework.
