Turtle Accesso 450mm Adoptable Inspection Chamber Base - 110mm

Name: Turtle Accesso 450mm Adoptable Inspection Chamber Base - 110mm
Brand: Turtle
SKU: AIC110450B
Price: 188.34 GBP
Availability: InStock

Code:

AIC110450B

Brand:

Turtle

This Accesso 450mm Adoptable Inspection Chamber Base for 110mm Pipework is compatible with shallow invert installations and can be used at a PCC Manhole base. It acts as a preformed alternative to labour-rigorous benching. Quick and straightforward to install without construct... Read More

View full product details

View questions about this product

£188.34 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Alexnder Wotherspoon

Description

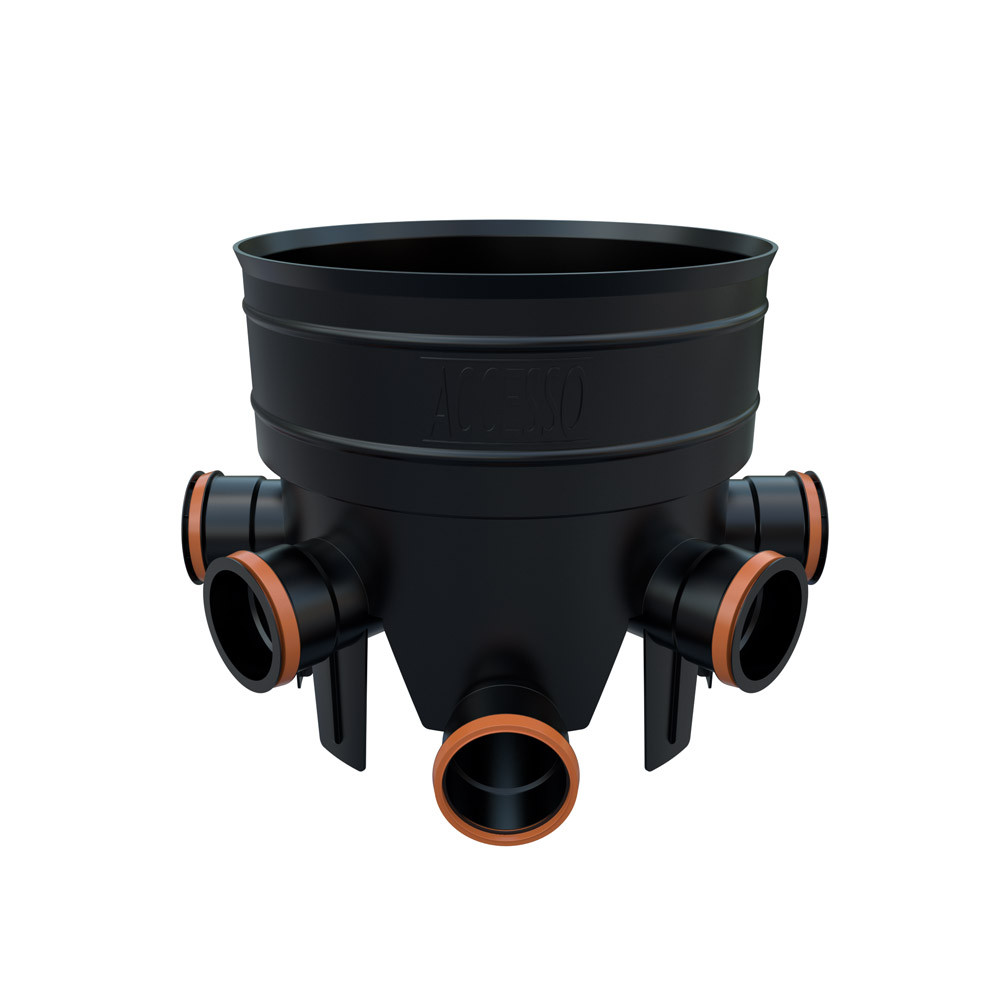

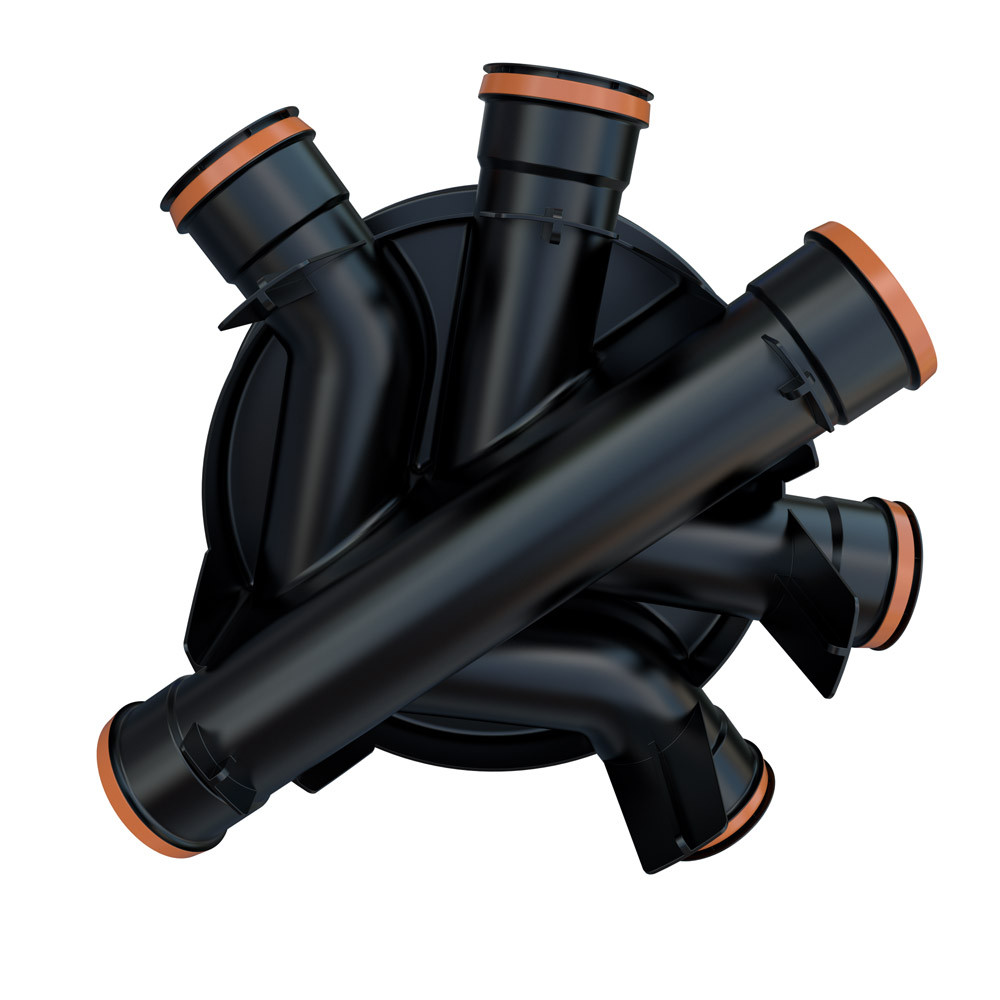

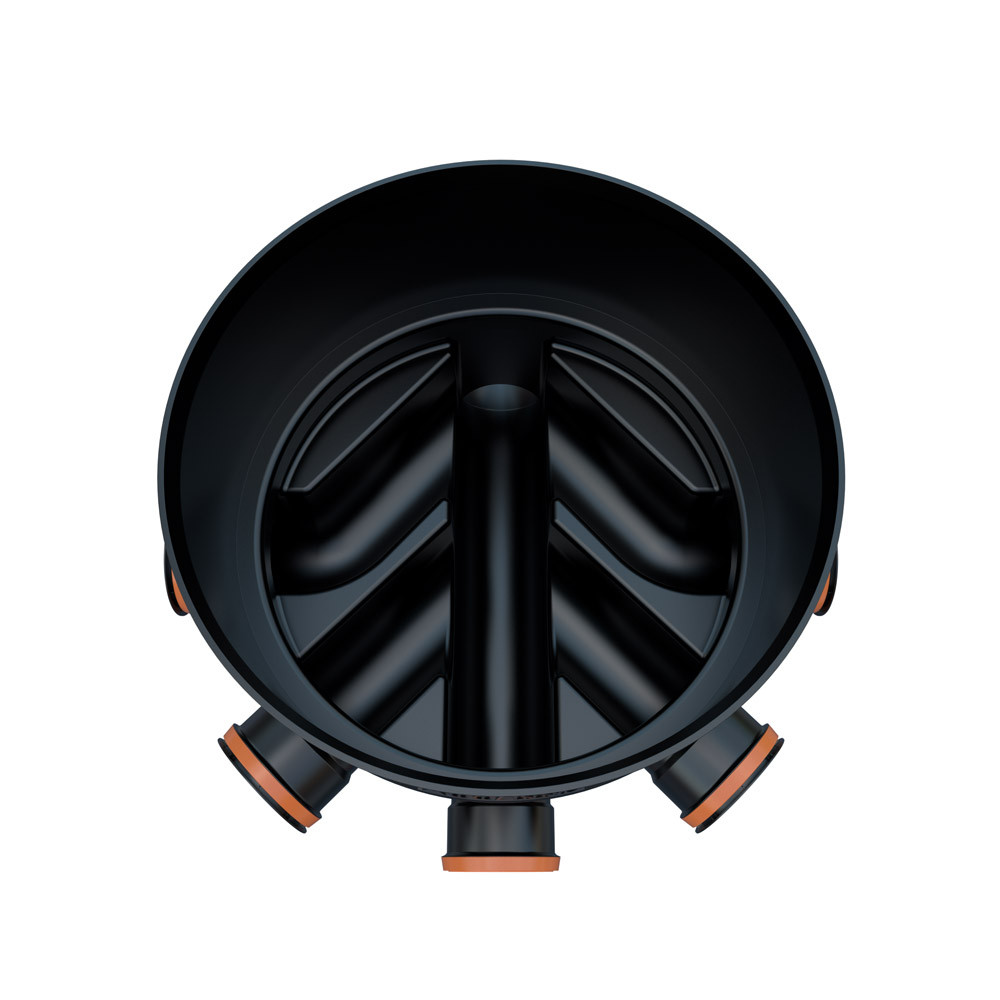

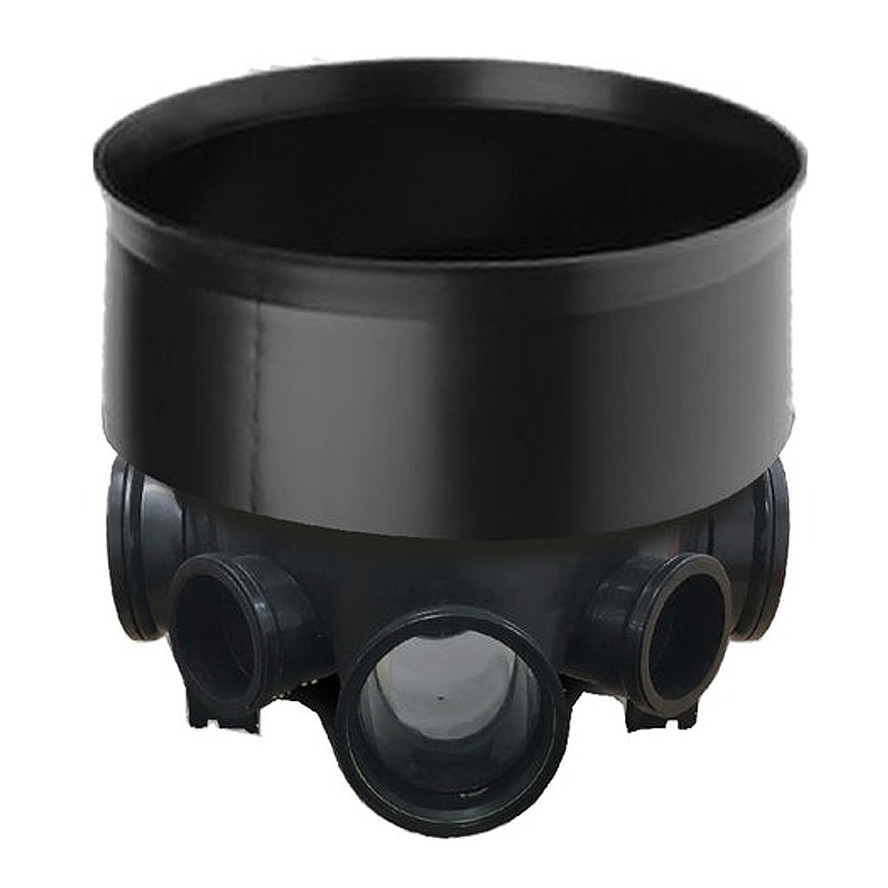

This product includes 110mm EN 1401 main-channel socket connections and four 110mm inlet socket connections. Two of the extra inlets are at 90° angles, and the other two are at 45° to the main channel. The side inlets have fitted blanking plugs that can be taken out when necessary.

Features & Benefits: Turtle Accesso 450mm Adoptable Inspection Chamber Base - 110mm

Saves onsite costs versus precast concrete and other traditional construction methods
Base only single unit
Lightweight for rapid installation
Base and four standard depths available
Six 110mm sockets
Stepped base with 65mm step from side to main channel
Range of adaptors available to work with other pipework
645mm x 680mm x 495mm (Length x Width x Height)
Design Life of 60 years

This 450mm Chamber Base is also suited for use with the Accesso 450mm Chamber Riser and the Accesso 450mm Sealing Ring, which forms an Adoptable Inspection Chamber.

Standards & Certification

This base meets the Design and Construction Guidance (DCG) requirements for Adoptable Sewers and Sewers for Adoption (SfA7).

Please note:

Pre-assembled chambers at a range of depths are also available, which are supplied as complete units, making them quicker and easier to install. A range of Accesso pipework adaptors are also available to suit alternative connections.
The depth of this product refers to the distance between the top and bottom of the unit. The invert, meanwhile, refers to the distance between the top of the unit and the bottom of the inside of the connecting inlet pipework.
