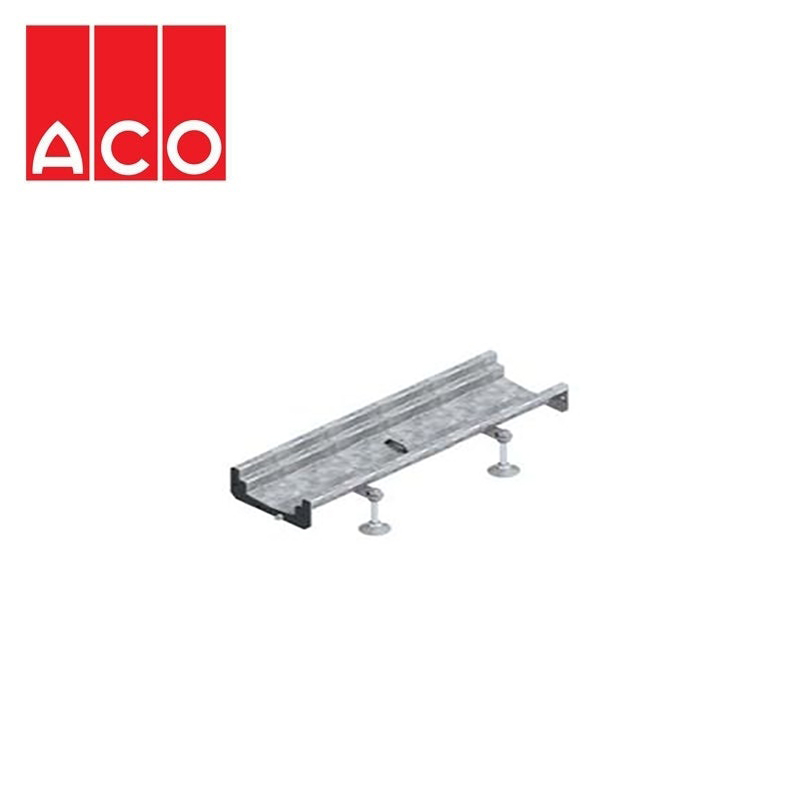

Low Profile Shallow Channel Drain 50mm Invert 1000mm - ACO Deckline125

Code:
105255
Brand:
Free UK Delivery

This low profile shallow drainage channel from ACO is part of the ACO Deckline 125 range. This ACO deckline 125 range is an invert channel drainage system that is manufactured from galvanised steel. The ACO Building Drainage Deckline 125 galvanised steel channel drainage syst... Read More

Create a wishlist

"Great service"

Kay Pysden

Description

This low profile shallow drainage channel from ACO is part of the ACO Deckline 125 range. This ACO deckline 125 range is an invert channel drainage system that is manufactured from galvanised steel.

The ACO Building Drainage Deckline 125 galvanised steel channel drainage system is a further development of our current highly successful Deckline channel solution. The highly flexible Deckline 125 system offers improved performance for most applications and is available off the shelf.

The ACO Deckline 125 channel drainage range is perfect for areas in which excavation is limited, or structural slabs are in use. They are designed for optimum efficiency in low-flow rate applications. The ACO shallow drainage channels are used in a wide range of different applications, from agricultural and industrial to domestic and commercial situations.

Key Features:

Length: 1000mm
Overall Width: 153mm
Overall Height: 63mm
Invert Height: 50mm
Material: Galvanised Steel

  • Channels manufactured from hot-dipped galvanised steel to BS EN ISO 1461:2009
  • Grating choice includes galvanised steel perforated, slotted and composite black and white to Load Class C250 to BS EN 1433. All gratings supplied complete with lockings
  • Vee-bottomed profiled channel for enhanced flow efficiency at low flow rates
  • Fully tested and classified to BS EN 1433 - Drainage Channels for Vehicular & Pedestrian Areas
  • CE marking indicating that Deckline 125 has met the Essential Requirements of BS EN 1433 - load bearing capacity, water tightness and durability

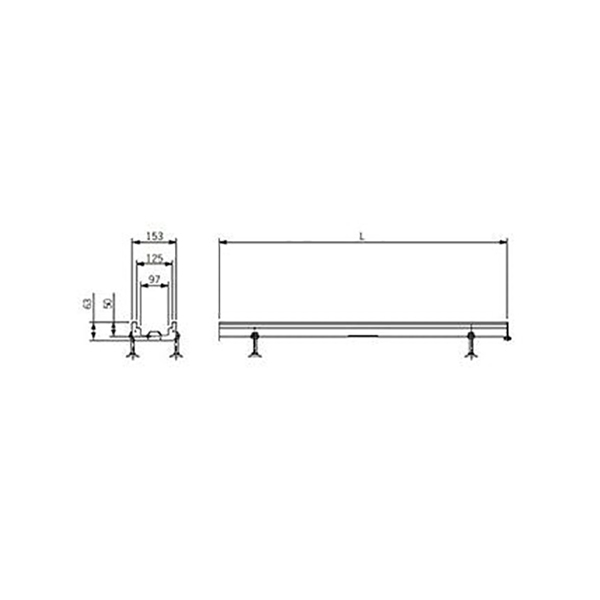

Dimensions

Length 1m Depth 63mm Width 153mm

Details

Material Galvanised Steel Product Type Channel Base Range Deckline Load Rating C250
