ACO Freedeck Adjustable Shallow Section End Plate - Galvanised Steel

Code:
36950
Brand:

With an adjustable height from 55mm up to 77mm, this shallow section end plate is from ACO's FreeDeck range of superior balcony and roof drainage systems which combines point drainage and line drainage. The ACO FreeDeck system utilises an open sided channel for the accumulation... Read More

£9.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Great all round service."

Robert Green

Description

With an adjustable height from 55mm up to 77mm, this shallow section end plate is from ACO's FreeDeck range of superior balcony and roof drainage systems which combines point drainage and line drainage.

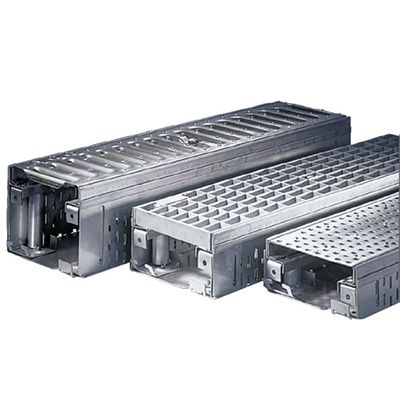

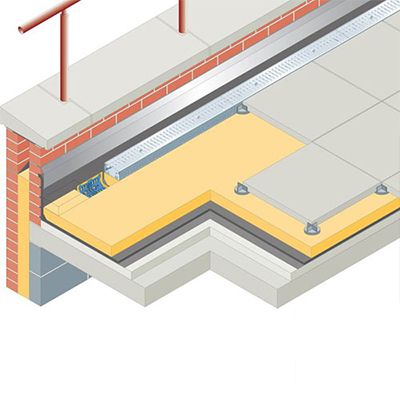

The ACO FreeDeck system utilises an open sided channel for the accumulation and conveyance of rainwater to drainage points within a suspended or raised deck structure. Intercepting rainwater at three points, it is diverted at surface run-off, percolation within the deck and rainwater outlet points.

Features & Benefits: ACO Freedeck Adjustable Shallow Section End Plate - Galvanised Steel

  • Made from galvanised steel material
  • Adjustable height from 55mm to 77mm
  • 130mm width
  • Used for rainwater drainage and safe access in a variety of applications
  • Protects and maintains the building fabric
  • For all types of suspended deck construction
  • Practical within all installations throughout building life
  • Details into all kinds of flat roof finishes
  • Provides level access drainage
  • Compliant with national access regulations

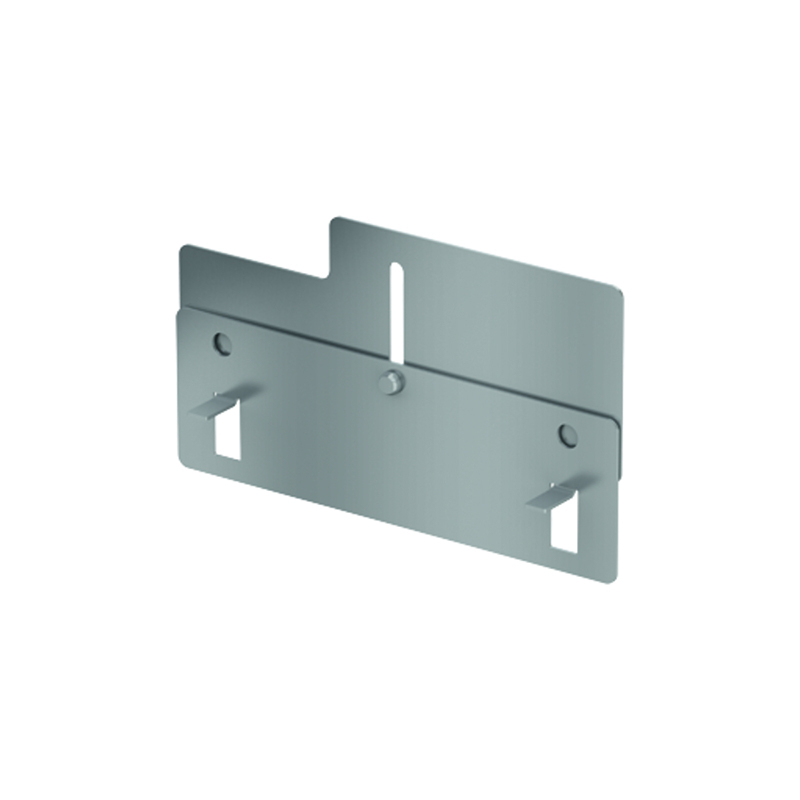

This end plate is made from galvanised steel and can be fitted with the channel which is simply positioned directly onto the insulation layer or waterproofing membrane. Boosting weathered protection of the building fabric and safety for foot traffic, it can provide efficient drainage where the pavings need to be placed 'open or closed joint'.

Standards & Certification

  • Scottish Building Standards: DOMESTIC AND NON DOMESTIC HANDBOOK: Section 4
  • Northern Ireland Building Regulations: DFP Technical Booklet R: 2006 ACCESS TO AND USE OF BUILDING: Section 7
  • England and Wales Building Regulations: ACCESS TO AND USE OF BUILDING: Approved Document M

Details

Colour Silver Material Galvanised Steel Application Decking
Balcony
Range ACO FreeDeck
