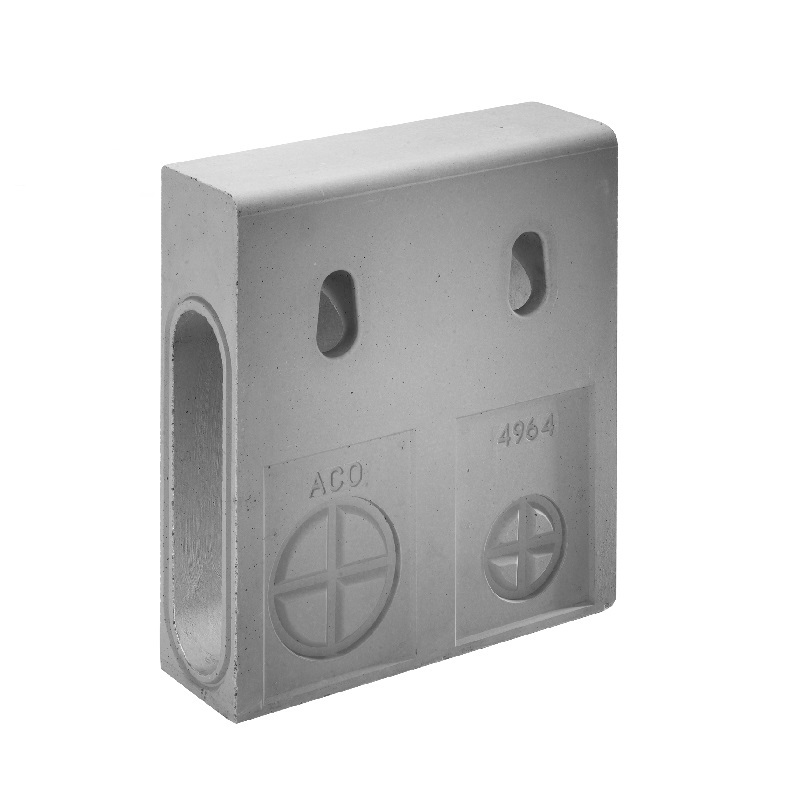

ACO KerbDrain 480 Bus Stop Kerb Unit (180mm Upstand) - 500mm

Code:
4964
Brand:
ACO

With a profile to complement a standard HB1 kerb stone, this half-battered KerbDrain® Bus Stop Kerb Unit with a 180mm Upstand is part of ACO's range of durable and dependable two-in-one kerb and drainage solutions, designed and developed from start to finish to match the rigou... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

5% off ACO channel drains

USE CODE: ACODRAINAGE5
CODE COPIED
Ends: 30 Nov 2024 23:59
Description Specification Downloads Q&A

Description

With a profile to complement a standard HB1 kerb stone, this half-battered KerbDrain® Bus Stop Kerb Unit with a 180mm Upstand is part of ACO's range of durable and dependable two-in-one kerb and drainage solutions, designed and developed from start to finish to match the rigours of surface water drainage projects.

Marrying together sustainability, durability, and versatility, the KerbDrain® system serves as a building block for a huge range of water management solutions. Suitable for a slew of large catchment areas and applications in challenging conditions, including major and minor highways, car parks, and commercial and urban landscaping, as well as projects which require long runs to an outlet, the KerbDrain® 480 range is an excellent starting point for your project. This particular unit provides high clearance for bus stops.

Features & Benefits: ACO KerbDrain 480 Bus Stop Kerb Unit (180mm Upstand) - 500mm

  • Ideal for C250 and D400 Loading
  • 44.90kg weight

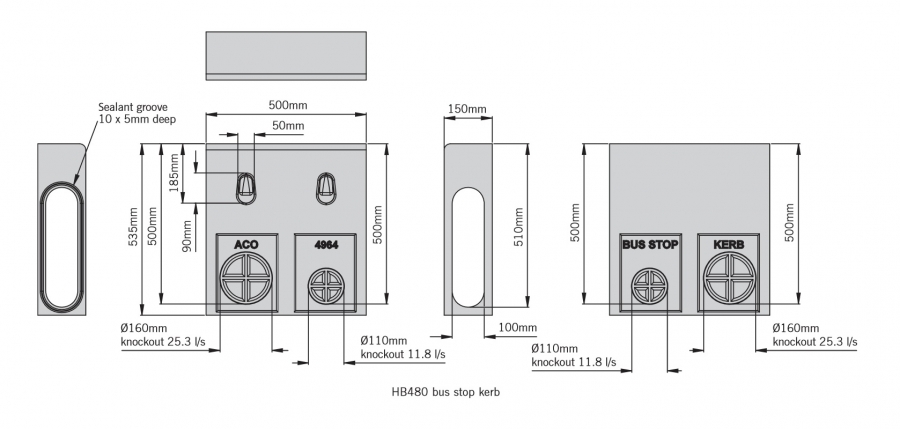

  • 500mm length x 150mm width x 535mm depth with a 510mm invert
  • Manufactured from sustainable materials
  • High daily installation rate
  • 50% higher impact resistance than OPC kerb units
  • Safe manual and mechanical handling
  • Certified for all highways applications and SuDS-compliant
  • Strong and reliable award-winning one-piece design
  • Excellent strength and hydraulic performance

Utilising sustainable materials without sacrificing strength, this drainage unit exhibits a 50% higher impact resistance than standard OPC kerb units, a serious consideration in challenging urban projects. It is certified for all highway applications, keeping confidence high from the second it is installed and staying strong throughout its long service life. This high-impact resistance and longevity originate from its deceptively simple award-winning one-piece design, maximising hydraulic performance and reducing failure points. In addition to safe manual and mechanical handling, it has a high daily installation rate and is fully Sustainable Drainage Systems (SuDS) compliant.

Dimensions

Length 500mm Depth 535mm Width 150mm

Details

Material Concrete Product Type Kerb Unit Range KerbDrain Load Rating D400
