ACO KerbDrain HB305 Half Battered 1.8m External Radius Kerb - 470mm

Code:
4990
Brand:

With a profile to match a standard HB1 kerb stone, this ACO KerbDrain® HB305 Half Battered 1.8m External Radius Kerb is an excellent all-in-one kerb and drainage system specifically designed and developed to meet the challenges of any surface water drainage project. Modern mat... Read More

£95.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Nov 26th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

5% off ACO channel drains

USE CODE: ACODRAINAGE5
CODE COPIED
Ends: 30 Nov 2024 23:59

Description

With a profile to match a standard HB1 kerb stone, this ACO KerbDrain® HB305 Half Battered 1.8m External Radius Kerb is an excellent all-in-one kerb and drainage system specifically designed and developed to meet the challenges of any surface water drainage project. Modern materials, sustainable design, and a high degree of versatility combine to form an integral part of any water management solution.

Ideally suited for draining medium-sized catchments, this system is suitable for all sorts of applications, including major and minor highways, car parks, and commercial and urban landscaping. This unit is produced from sustainable and sturdy materials, showcasing an impact resistance up to 50% higher than OPC kerb units, and is certified for all highway applications, keeping confidence high from start to finish. This enhanced durability comes from its simple, award-winning, one-piece design, maximising hydraulic performance. In addition to safe manual and mechanical handling, this unit boasts a high daily installation rate and is fully Sustainable Drainage Systems (SuDS) compliant.

Features & Benefits: ACO KerbDrain HB305 Half Battered 1.8m External Radius Kerb - 470mm

  • Certified for all highways applications and SuDS-compliant
  • Excellent strength and hydraulic performance
  • High daily installation rate
  • Safe manual and mechanical handling
  • Strong and reliable award-winning one-piece design
  • 50% higher impact resistance than OPC kerb units
  • Manufactured from sustainable materials
  • Suitable for C250 and D400 Loading
  • 27kg weight
  • 470mm length x 150mm width x 305mm depth with a 280mm invert (Type 1)

Making use of sustainable materials without sacrificing strength, the whole KerbDrain® range boasts a 50% higher impact resistance than standard OPC kerb units, a significant selling point for challenging urban projects. Units are certified for all highway applications, boosting confidence from installation and throughout their long service life. This high level of impact resistance and longevity originates from the range's deceptively simple award-winning one-piece design, maximising hydraulic performance and reducing failure points.

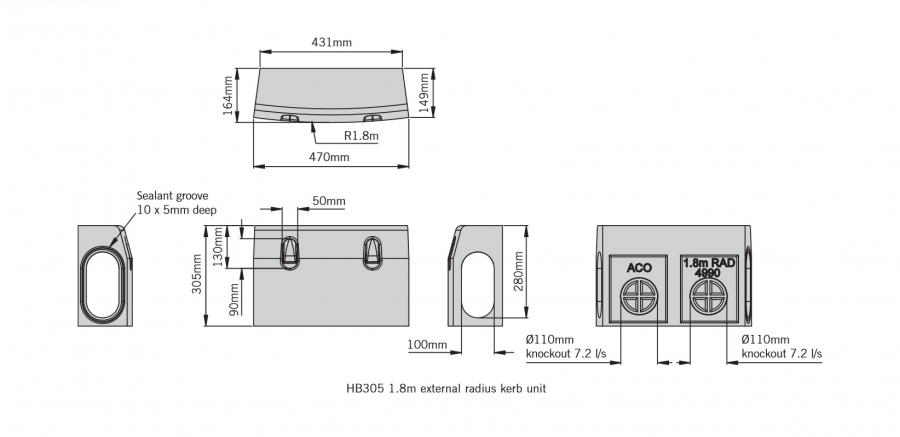

Dimensions

Length 470mm Depth 305mm Width 150mm

Details

Material Concrete Product Type Kerb Unit Range KerbDrain Load Rating D400
