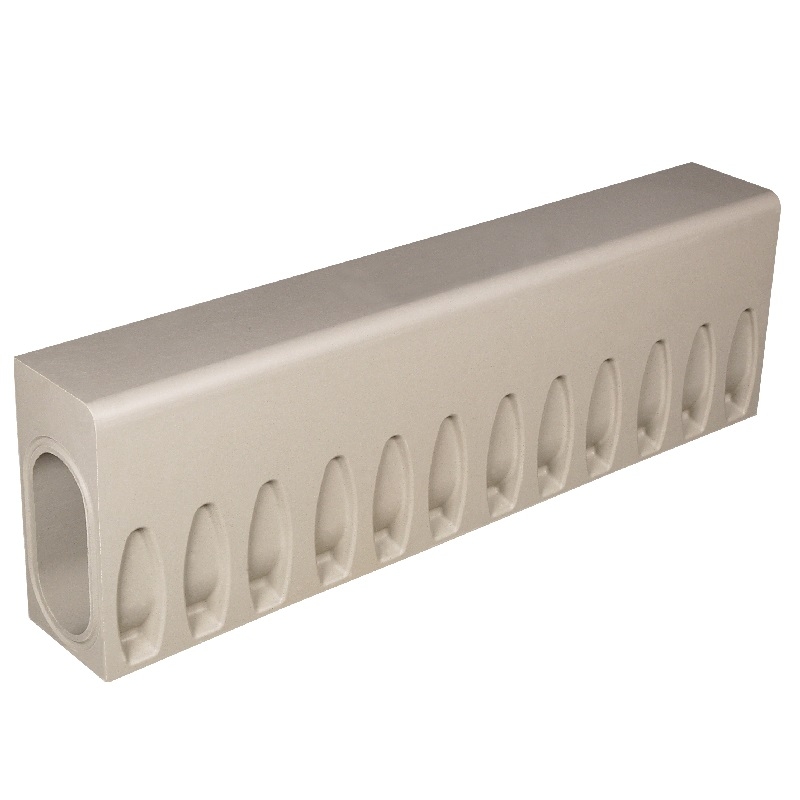

ACO KerbDrain HB405 Half Battered Centre Stone Kerb Unit - 1000mm

Code:
4236-HB405
Brand:
ACO

With a profile to match a standard HB1 kerb stone, this ACO KerbDrain® Half Battered Centre Stone Kerb Unit system is part of a solid and reliable all-in-one kerb and drainage solution designed and developed specifically to meet the challenge of any surface water drainage proj...Read More

View full product details
View questions about this product
£125.00 Incl. VAT Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Jul 4th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"A great service and product"

Stephen Williamson
Description Specification Downloads Q&A

Description

With a profile to match a standard HB1 kerb stone, this ACO KerbDrain® Half Battered Centre Stone Kerb Unit system is part of a solid and reliable all-in-one kerb and drainage solution designed and developed specifically to meet the challenge of any surface water drainage project. Combining modern materials, solid design, and a high level of versatility, it forms an integral part of any water management solution.

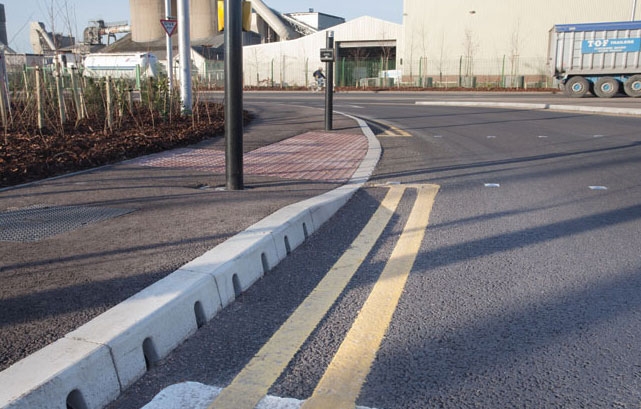

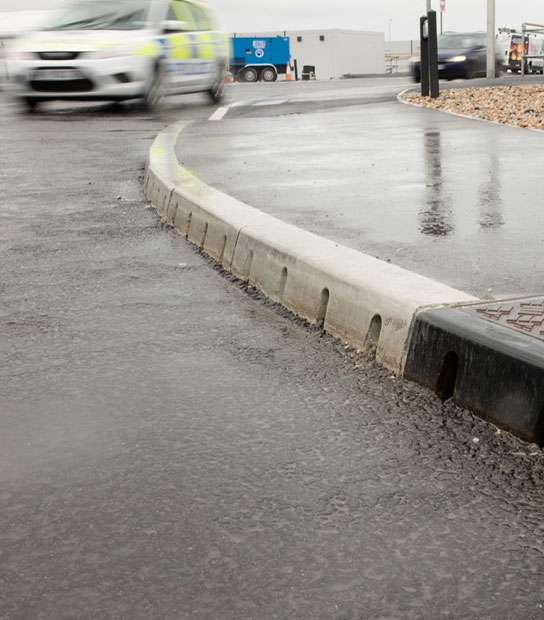

Suitable for a plethora of applications, including major and minor highways, car parks, and commercial and urban landscaping, this KerbDrain® HB405 Unit is an excellent starting point for your project, perfect for draining large catchment areas and bridging the hydraulic gap between the 305 and 480 half battered ranges for optimal drainage.

Features & Benefits: ACO KerbDrain HB405 Half Battered Centre Stone Kerb Unit - 1000mm

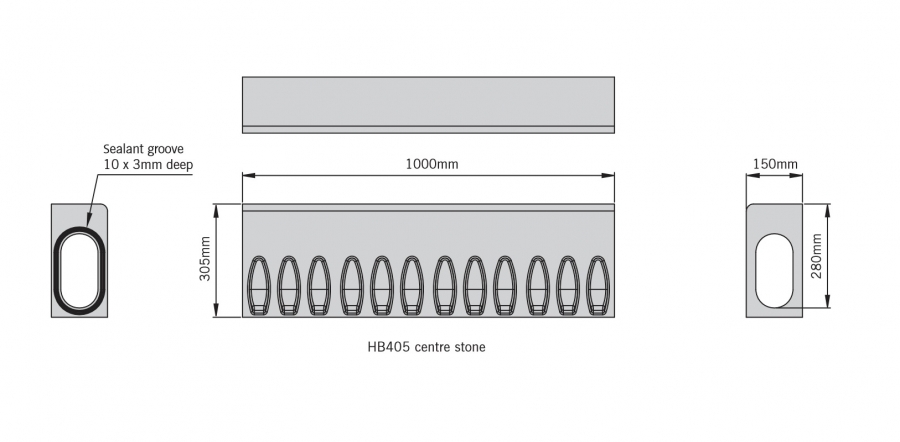

  • 1000mm length x 150mm width x 305mm depth with a 280mm invert
  • 60.10kg weight
  • Suitable for C250 and D400 Loading
  • 50% higher impact resistance than OPC kerb units
  • Manufactured from sustainable materials
  • Certified for all highways applications and SuDS-compliant
  • Excellent strength and hydraulic performance
  • Strong and reliable award-winning one-piece design
  • Safe manual and mechanical handling
  • High daily installation rate

Utilising sustainable, sturdy materials, this unit boasts a 50% higher impact resistance than standard OPC kerb units and is certified for all highway applications, keeping your confidence high from start to finish. This substantial durability comes from its deceptively simple award-winning one-piece design, maximising hydraulic performance and reducing failure points. In addition to safe manual and mechanical handling, it boasts a high daily installation rate and is fully Sustainable Drainage Systems (SuDS) compliant.

Dimensions

Length 1m Depth 305mm Width 150mm

Details

Material Concrete Product Type Kerb Unit Range KerbDrain Load Rating D400
