ACO M100d Grating Dimensions
Length : 1000mm
Width (Overall) : 123mm
Weight : 6.6kg
Base Dimensions
Length : 1000mm
Width (Overall) : 135mm
Depth (Overall) : 150mm
Invert : 130mm
Invert Type : 1/3
Weight : 11kg
Description

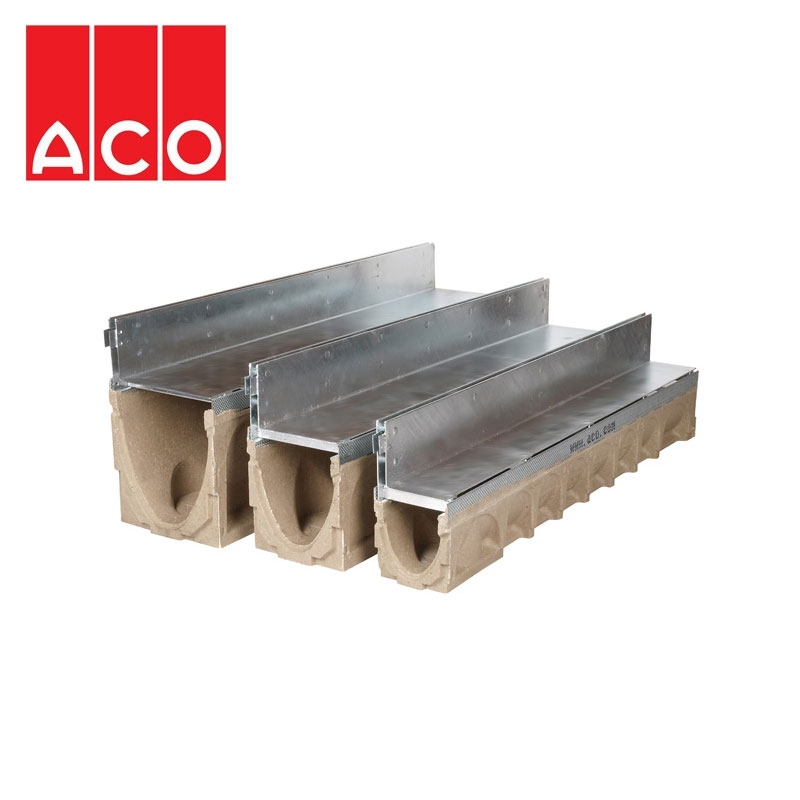

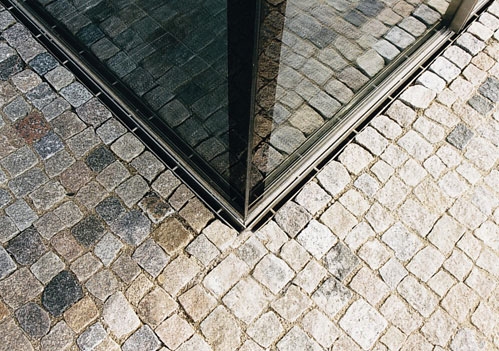

Designed as standard with a heelguard 10mm off set drainage inlet, ACO Brickslot is a subtle and unobtrusive grating which when combined with ACO MultiDrain MD galvanised and stainless steel channels, can be used as a solution to complement discreet drainage applications and is ideal for use against building facades.
Compatible with most paving materials, the vertical sides of the grating enable pavements to be laid directly to the units edge. Once installed the system is totally secure and not vulnerable to vandalism or loose gratings. This makes the system suitable for applications such as schools and playgrounds where grating removal can become a hazard.

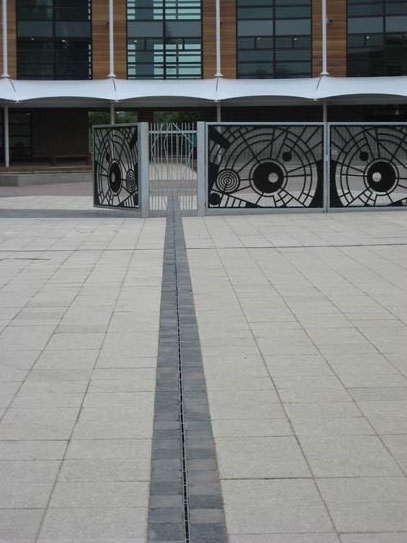

The channel and ACO Brickslot grating together provide and unobtrusive continous slot drainage system, with high hydraulic efficiency for fast removal of surface water. ACO Brickslot gratings are available in galvanised or stainless steel and suitable for use with the 100mm, 150mm and 200mm wide channels in the ACO MultiDrain MD range.
The system includes an ACO Brickslot access unit to ensure easy maintenance and access to the drainage system, and is also fully compatible with the range of ACO MultiDrain MD accessories.
Question:
Do you sell plastic channel drains with a slot at the top not a grid? Lightweight use. Plastic would be good
Answer:
Yes we do, This is under product code 319561
