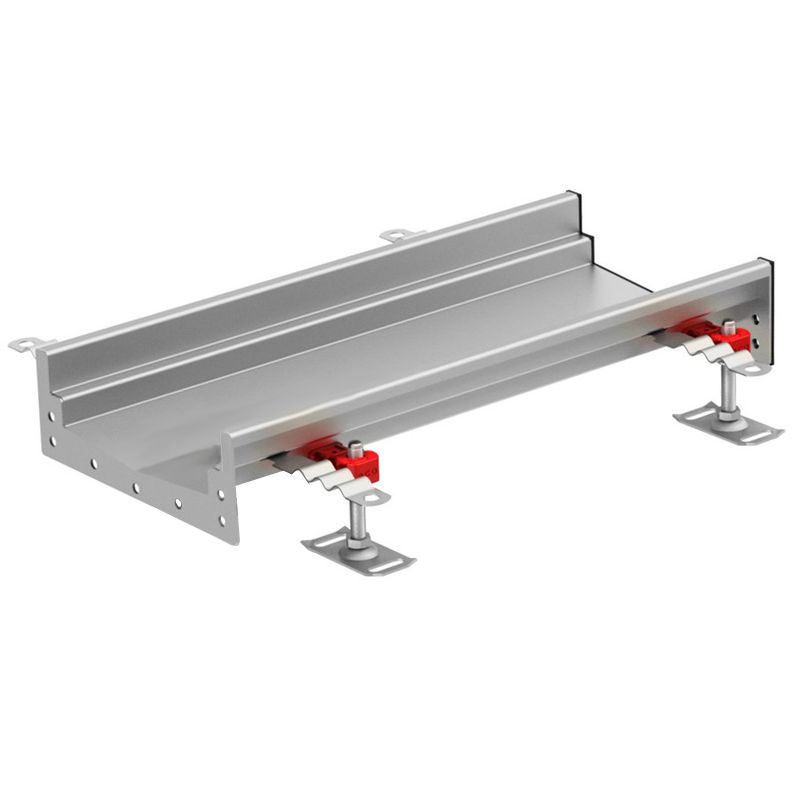

Internal Channel Drain 110mm Invert 2000mm Length - ACO Modular 125

Name: Internal Channel Drain 110mm Invert 2000mm Length - ACO Modular 125
Brand: ACO
SKU: 105139
Price: 345.00 GBP
Availability: InStock

Code:

105139

Brand:

ACO

View full product details

View questions about this product

Length

Invert

£345.00 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Brendan Skillen

Description

From ACO's Modular 125 range, this Stainless Steel Internal Level Invert Channel Drain is perfect for internal applications, such as kitchens, hospitals and more. With a significant investment in a state-of-the-art manufacturing plant, ACO has taken full advantage to ensure their building drainage is manufactured to exceptional standards, offering improved performance and versatility for most applications off the shelf.

Made from 304-grade stainless steel, this channel drain is available in different lengths and inverts to ensure you have the right parts to create a smooth-flowing system. Its vee-bottomed profile also enhances flow efficiency and low flow rates, making it ideal if you're expecting a continuous passing of liquids through the system as time passes. You can opt for vertical or horizontal gullies to ensure the matter enters the system more efficiently and to suit your requirements for neater disposal.

Features & Benefits: Internal Channel Drain 110mm Invert 2000mm Length - ACO Modular 125

Made from 304-grade stainless steel
Full testing and classification to BS EN 1433 standards
Suitable for vehicular and pedestrian areas
CE marking indicates Modular 125 meets Essential Requirements of BS EN 1433
Watertight and durable structure
Vee-bottomed profiled channel enhances flow efficiency at low flow rates
Comes with levelling feet, fixing ties, neoprene gasket and fixings
Compatible with a variety of gratings, including unique optional grating security locks
2000mm length x 153mm width x 123mm depth with a 110mm invert
5.4kg weight

Additionally, this channel drain is pairable with a range of compatible ACO gratings with load class A15 to C250. So, you can ensure you have a complete system in position that is fully tested and classified to BS EN 1433, complete with a CE marking to indicate these requirements have been met. An extended range of constant depth or sloping invert channels and accessories, as well as a standard range of components from stock, is also available.

Please note:

This product is not suitable for suspended timber floors.
Channel gratings are not included and need to be purchased separately.
The Modular 125 channel system is off-the-shelf, stocked and manufactured in Grade 304 Stainless Steel. It is available in 316-grade stainless steel only to order.
