Home Channel Drainage Main Road & Traffic Area Channel Drainage - D400 Class ACO Channel Drainage ACO MonoDrain 135mm x 150mm x 1000mm Channel - Black

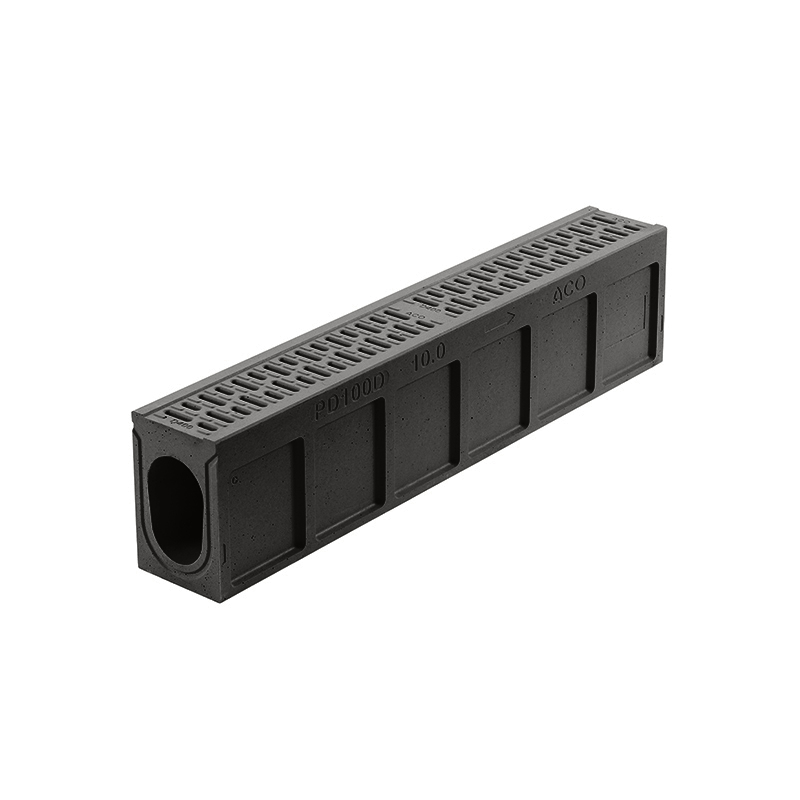

ACO MonoDrain 135mm x 150mm x 1000mm Channel - Black

Code:
20640
Brand:
ACO

With a 135mm constant depth, this ACO MonoDrain channel unit offers the shallowest depth available across the ACO range. This one-piece Vienite channel drain system combines grates into the channels for a single efficient, safe and secure water drainage solution. By integrating... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

5% off ACO channel drains

USE CODE: ACODRAINAGE5
CODE COPIED
Ends: 30 Nov 2024 23:59
Description Specification Downloads Q&A

Description

With a 135mm constant depth, this ACO MonoDrain channel unit offers the shallowest depth available across the ACO range. This one-piece Vienite channel drain system combines grates into the channels for a single efficient, safe and secure water drainage solution.

By integrating this base and grate in one unit, you can diminish the risk of the grating dislodging below the weight of traffic and reduce the risk of stolen grates. Quicker to install than separate grate and base drains, this ACO MonoDrain boosts long-term performance and integrity in D400 load class areas.

Features & Benefits: ACO MonoDrain 135mm x 150mm x 1000mm Channel - Black

  • Black colour
  • Efficient, safe and secure surface water drainage
  • Reduced risk of dislodged or stolen gratings
  • Quick and easy to install
  • Made from ACO's recycled polymer concrete, Vienite
  • 8mm Heelguard grate to minimise danger to pedestrians and debris entry
  • 1000mm length x 150mm width x 135mm depth

Both the grate and channel base are made from ACO's recycled polymer concrete, Vienite. This durable concrete material ensures stability and offers a secure, rigid grate that can withstand stationary weight and traffic in regions such as commercial developments and town centres, as well as pedestrian, light-duty landscaping areas and car and HGV parks. With an external face to firmly embed the channel base more into the concrete, the 8mm Heelguard grates minimise danger to pedestrians and debris entry.

By using this ACO MonoDrain, you can simplify the specification and installation process and spend less time on-site. It has a 1000mm length, 150mm width and a sleek black finish, which can complement your project. There is also a range of accessories available, such as foul air traps, gully units, sumps and lockable rodding access points, to help you get more from this system.

Standards & Certification

  • Certified to: BS EN 1433-2002 Class D400

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

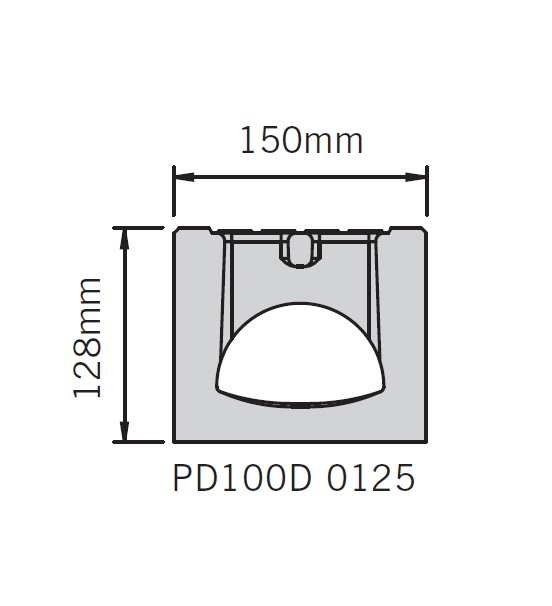

Dimensions

Length 1m Depth 128mm Width 150mm

Details

Material Concrete Product Type Channel Base and Grate Features Shallow Channel Range MONODrain
Load Rating D400

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
