ACO MonoDrain 135mm x 150mm x 1000mm Channel - Grey

Code:
26640
Brand:
ACO

This ACO MonoDrain 135mm is the shallowest depth channel drain across the PD100D MonoDrain range, crafted from durable, resilient Vienite material. The MonoDrain range incorporates the grate and channel to create a secure, effective and safe water drainage system with an integ... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Dec 5th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Good delivery times"

customer
Description Specification Downloads Q&A

Description

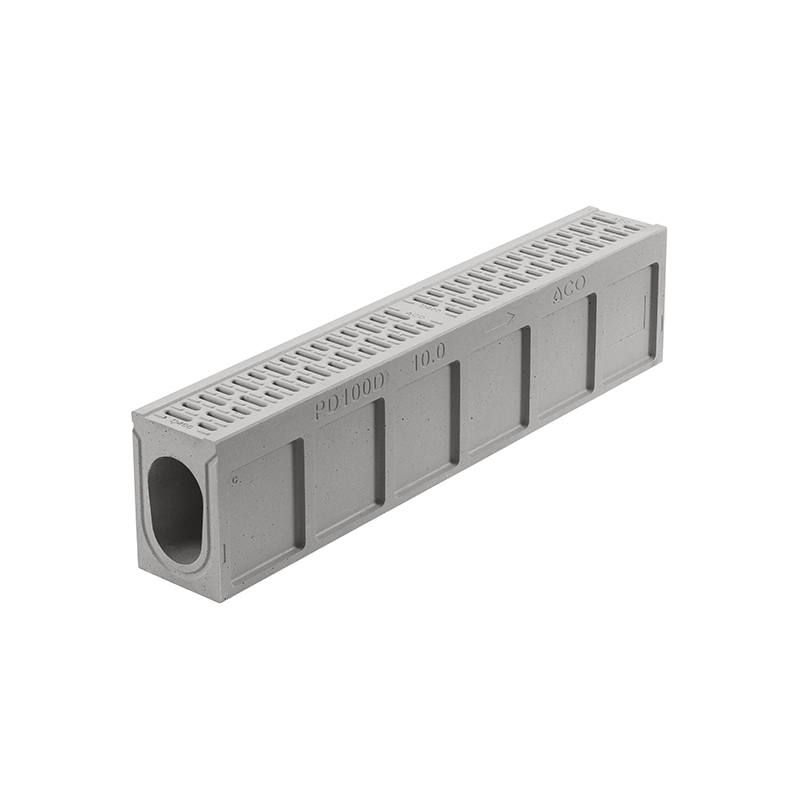

This ACO MonoDrain 135mm is the shallowest depth channel drain across the PD100D MonoDrain range, crafted from durable, resilient Vienite material. The MonoDrain range incorporates the grate and channel to create a secure, effective and safe water drainage system with an integral anti-theft design to prevent stolen products and damage.

With a Loading Class of D400, this grey base and grate unit provides an alternative to galvanised or stainless-steel grates, offering a similar aesthetic for concrete or stone installations. The shallow channel drain features no connectors or access and can be installed with ease, thanks to the simplified specification and design.

Features & Benefits: ACO MonoDrain 135mm x 150mm x 1000mm Channel - Grey

  • Crafted from durable, resilient Vienite material
  • Integral anti-theft grating design
  • Simplifies specification and design
  • Proven performance and durability
  • Safe and secure installation
  • An easy alternative to galvanised or stainless-steel grates
  • 1000mm length x 150mm overall width x 135mm overall depth
  • 110mm invert depth
  • D400 Loading Class

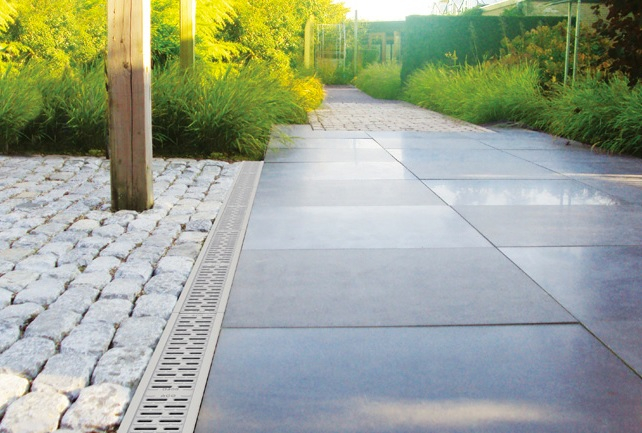

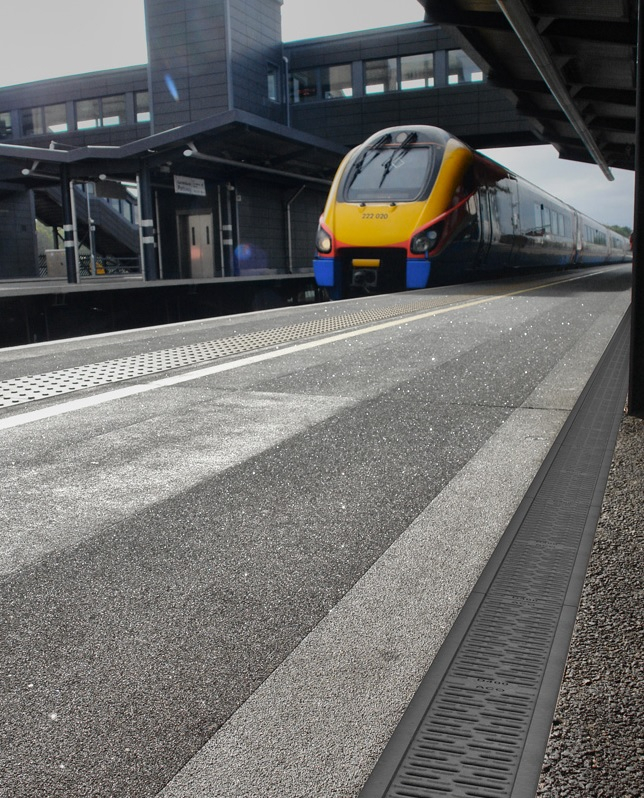

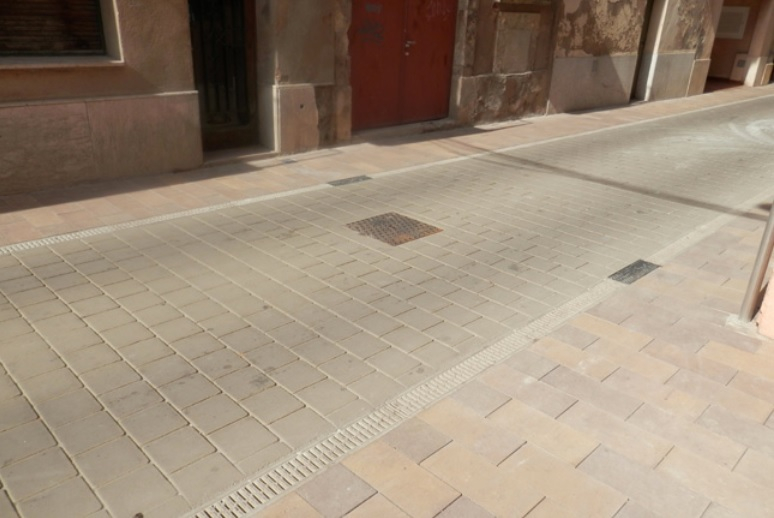

The Vienite material offers stability, allowing grates to withstand traffic and stationery weight in various areas, including HGV parks, light-duty landscaping and pedestrian areas, town centres and commercial developments. ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002 Class D400

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

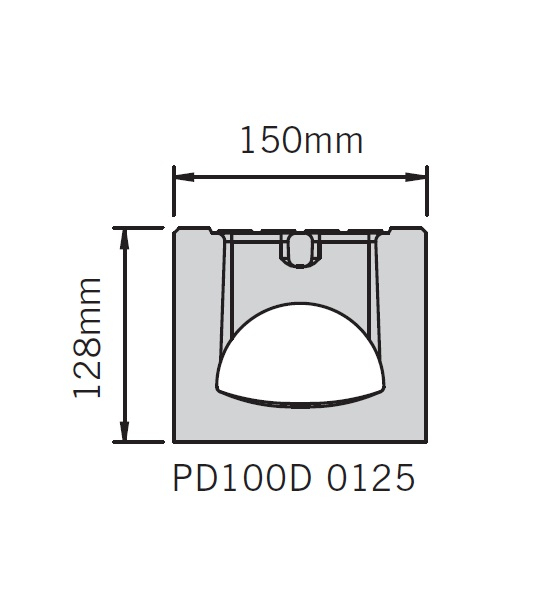

Dimensions

Length 1m Depth 135mm Width 150mm

Details

Colour Grey Material Concrete Product Type Channel Base and Grate Features Shallow Channel
Invert 110mm Range MONODrain Load Rating D400
