ACO MonoDrain 185mm x 150mm x 1000mm Channel - Natural

Code:
28600
Brand:
ACO

A solid and dependable all-in-one option, this Channel Unit is a main component of ACO's MonoDrain single-piece drainage system. With a depth of 185mm, it combines grates and channels into a single, safe, secure and effective unit to eliminate the chances of gratings dislodgin... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

5% off ACO channel drains

USE CODE: ACODRAINAGE5
CODE COPIED
Ends: 30 Nov 2024 23:59
Description Specification Downloads Q&A

Description

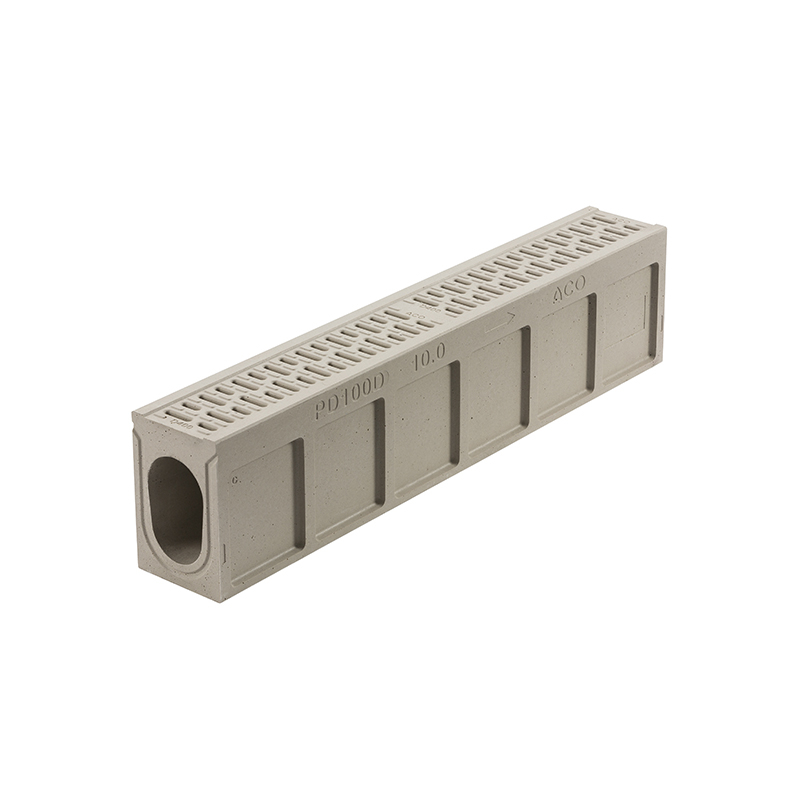

A solid and dependable all-in-one option, this Channel Unit is a main component of ACO's MonoDrain single-piece drainage system. With a depth of 185mm, it combines grates and channels into a single, safe, secure and effective unit to eliminate the chances of gratings dislodging under traffic weight or loosening over time.

This all-in-one channel and grate unit comes in a natural colour, providing a discreet, unobtrusive option that blends seamlessly with your applications. It is easy to install, fit and maintain, crafted from Vienite® - ACO's proprietary, tried and tested material. Equipped with high chemical resistance and build quality, the unit is rated for D400 loads. The MonoDrain base includes external faces that work to bed into the concrete below soundly and securely, offering a protective 8mm Heelguard that limits the ingress of debris and danger to pedestrians.

Features & Benefits: ACO MonoDrain 185mm x 150mm x 1000mm Channel - Natural

  • Easy to install, fit and maintain
  • Sturdy, durable Vienite® construction for longevity
  • Excellent single-piece channel drainage system
  • Integrates the base and grate into a single unit, limiting the risk of dislodging
  • 8mm Heelguard prevents fall risks and debris build-up
  • Rated for D400 loads

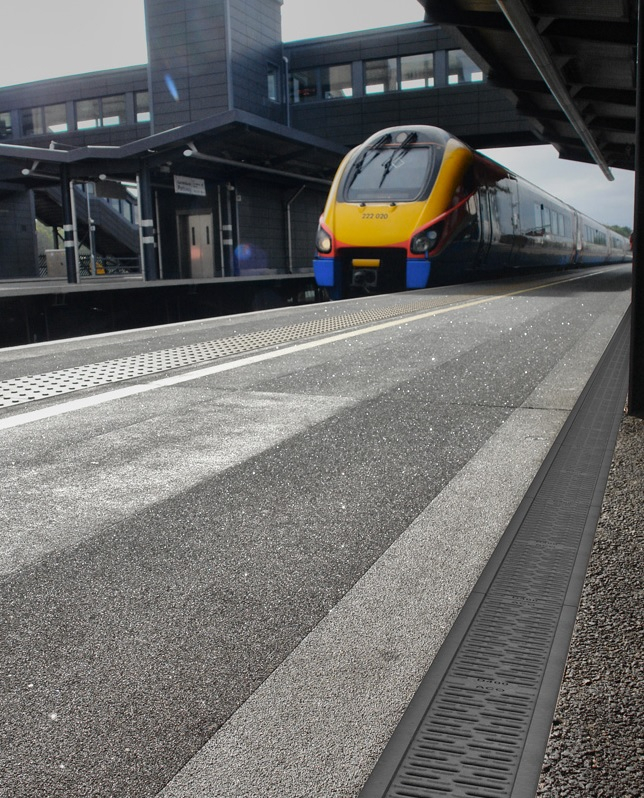

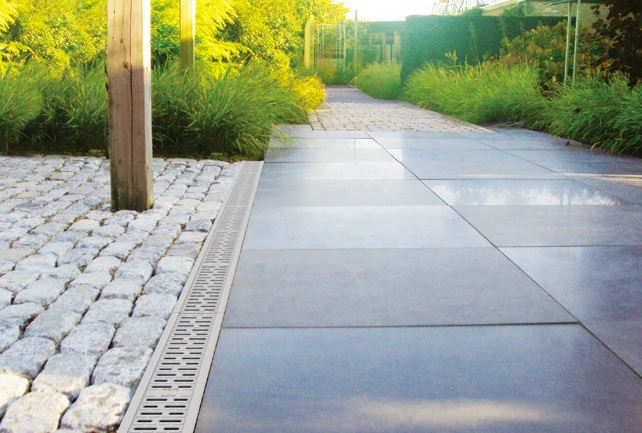

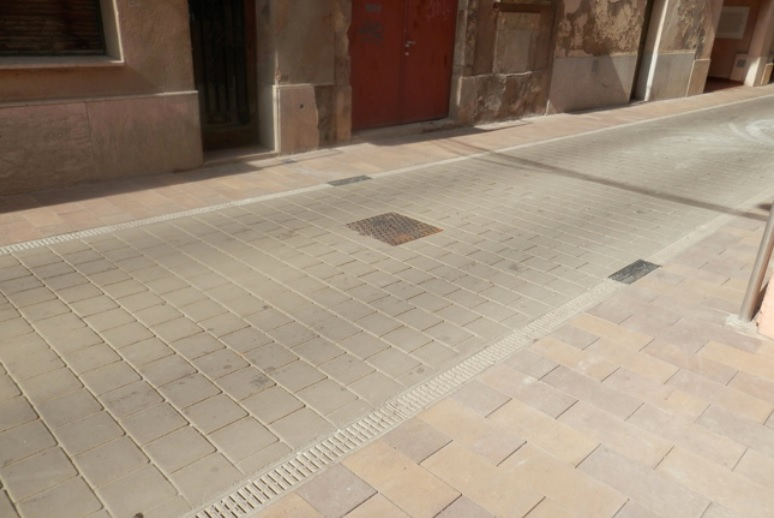

The Vienite material offers stability, allowing grates to withstand traffic and stationery weight in various areas, including HGV parks, light-duty landscaping and pedestrian areas, town centres and commercial developments. ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

Dimensions

Length 1m Depth 185mm Width 150mm

Details

Material Vienite Product Type Channel Base and Grate Range MONODrain Load Rating D400

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
