ACO MonoDrain 225mm x 150mm x 1000mm Channel - Natural

Code:
28610
Brand:
ACO

An all-in-one channel and grate in a natural colour, this Channel Unit is easy to install, fit and maintain. It includes a Vienite® structure, ACO's proprietary, tried and tested material, for a rugged and reliable option with high build quality and chemical resistance. With a... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Dec 5th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"simple ordering process"

Steven Hymans
Description Specification Downloads Q&A

Description

An all-in-one channel and grate in a natural colour, this Channel Unit is easy to install, fit and maintain. It includes a Vienite® structure, ACO's proprietary, tried and tested material, for a rugged and reliable option with high build quality and chemical resistance. With a 225mm depth, it also has a rating for D400 loads.

ACO's MonoDrain single-piece drainage system combines the grate and channel into a single unit that is secure, safe and effective. By doing so, the likelihood of gratings dislodging under traffic weight or loosening throughout use is significantly reduced. The MonoDrain base features external faces to firmly bed into the concrete below and a protective 8mm Heelguard to decrease debris ingress and danger to pedestrians.

Features & Benefits: ACO MonoDrain 225mm x 150mm x 1000mm Channel - Natural

  • Incorporates a channel and grate into a single unit
  • Limited risk of dislodging
  • Easy to fit, install and maintain
  • Rated for D400 loads
  • Excellent single-piece channel drainage system
  • Natural Vienite® construction is ideal for longevity with chemical resistance
  • Includes 8mm Heelguard to avoid fall risks and debris build-up

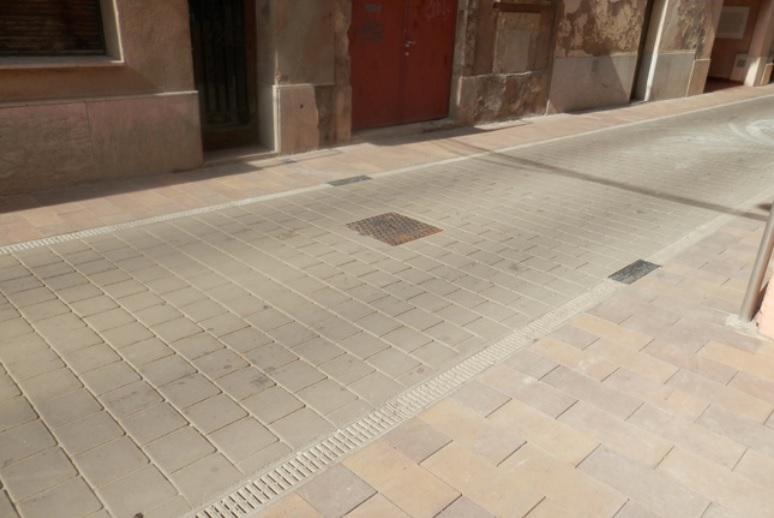

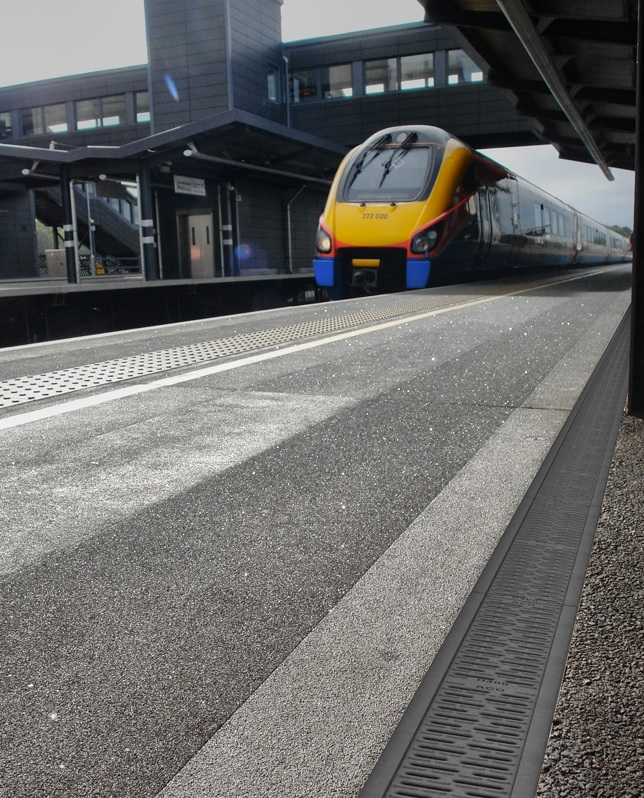

The Vienite material offers stability, allowing grates to withstand traffic and stationery weight in various areas, including HGV parks, light-duty landscaping and pedestrian areas, town centres and commercial developments. ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

Dimensions

Length 1m Depth 225mm Width 150mm

Details

Material Vienite Product Type Channel Base and Grate Range MONODrain Load Rating D400

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
