Home Channel Drainage Main Road & Traffic Area Channel Drainage - D400 Class ACO Channel Drainage ACO MonoDrain 265mm x 150mm x 1000mm Channel - Grey

ACO MonoDrain 265mm x 150mm x 1000mm Channel - Grey

Code:
26620
Brand:
ACO

From ACO's MonoDrain combined single-piece drainage system, this 265mm deep Channel Unit is stable and long-lasting with an all-in-one design. It brings the grate and channel together to create a single, effective unit with enhanced safety and security. Combined grate and base... Read More

View full product details
View questions about this product
£140.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Dec 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Can’t beat the range and choice"

Logan
Description Specification Downloads Q&A

Description

From ACO's MonoDrain combined single-piece drainage system, this 265mm deep Channel Unit is stable and long-lasting with an all-in-one design. It brings the grate and channel together to create a single, effective unit with enhanced safety and security. Combined grate and bases prevent gratings from dislodging under traffic weight or loosening during use.

Constructed from ACO's proprietary, tried and tested Vienite® material in grey, this unit has a seamless appearance and can be installed, fitted and maintained with ease. It also offers superb chemical resistance and build quality, rated for D400 loads.

Features & Benefits: ACO MonoDrain 265mm x 150mm x 1000mm Channel - Grey

  • Rated for D400 loads
  • Excellent single-piece channel drainage system
  • Forms a single base and grate unit to avoid dislodging
  • Installed, fitted and maintained with ease
  • Grey Vienite® construction is sturdy and resilient, ideal for longevity
  • 8mm Heelguard minimises fall risks and debris build-up

The MonoDrain base features external faces to bed into the concrete below firmly, alongside the protective 8mm Heelguard for a lower chance of debris entry and reduced danger to pedestrians.

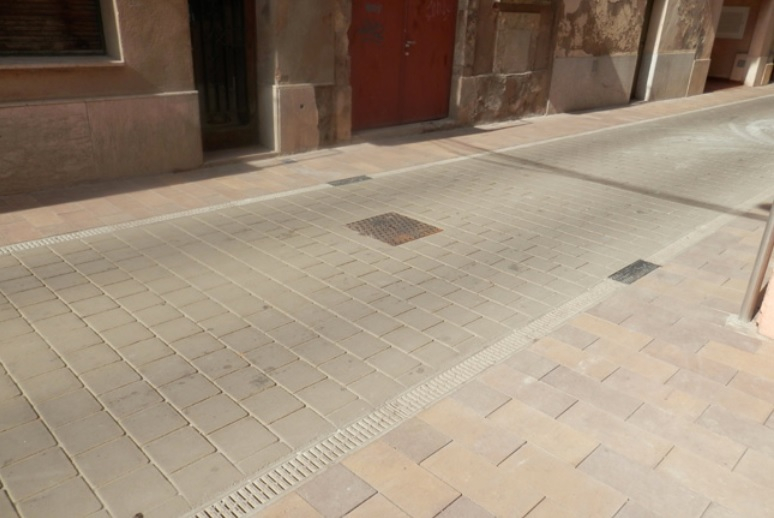

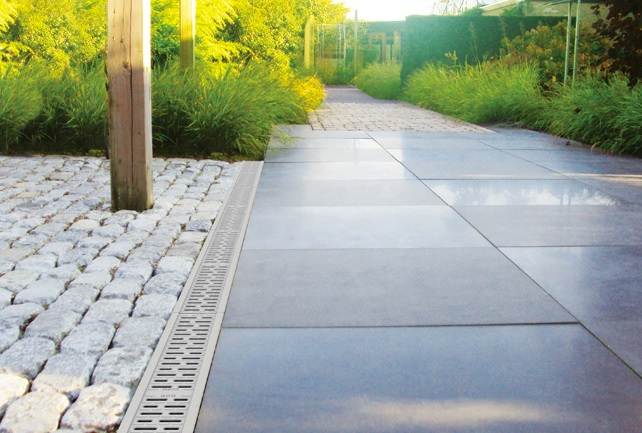

The Vienite material offers stability, allowing grates to withstand traffic and stationery weight in various areas, including HGV parks, light-duty landscaping and pedestrian areas, town centres and commercial developments. ACO MonoDrain products ensure you can simplify the specification process and installation for less time on site.

Standards & Certification

  • Certified to: BS EN 1433-2002

Please note:

  • This unit is 1000mm long and 150mm wide and features no connectors or access. For maintenance and access, you will require a shallow depth access unit installed at every 5m of channel drainage.
  • ACO MonoDrain is unsuitable for public roads, highways and motorways. For this, we recommend ACO RoadDrain.

Dimensions

Length 1m Depth 265mm Width 150mm

Details

Material Vienite Product Type Channel Base and Grate Range MONODrain Load Rating D400

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
