ACO MonoDrain 305mm x 150mm x 500mm Access Unit - Black

Name: ACO MonoDrain 305mm x 150mm x 500mm Access Unit - Black
Brand: ACO
SKU: 20633
Price: 112.86 GBP
Availability: InStock

Code:

20633

Brand:

ACO

View full product details

View questions about this product

£112.86 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Geoff Rooth

Description

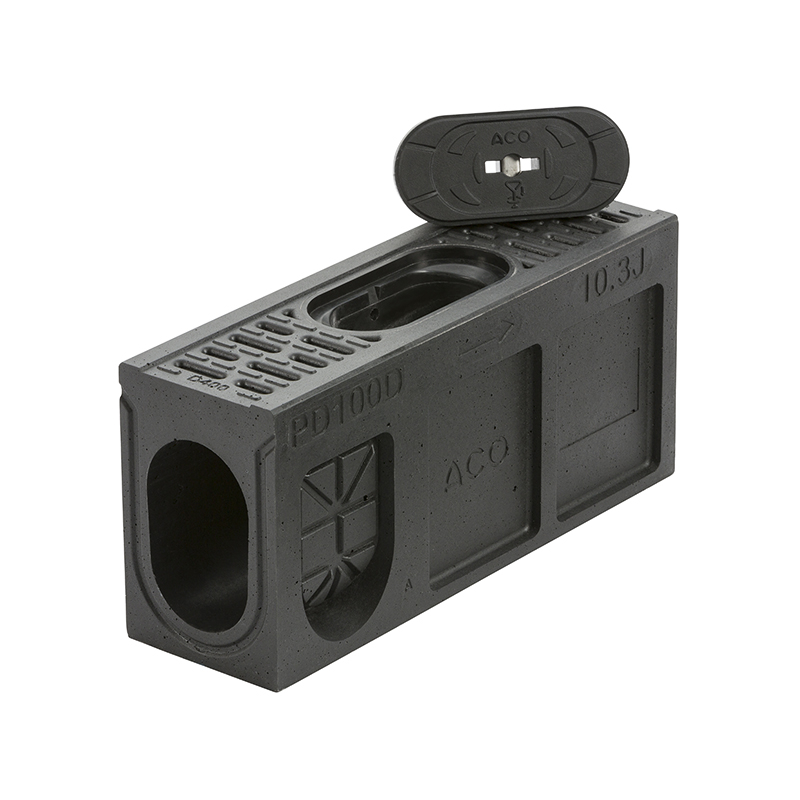

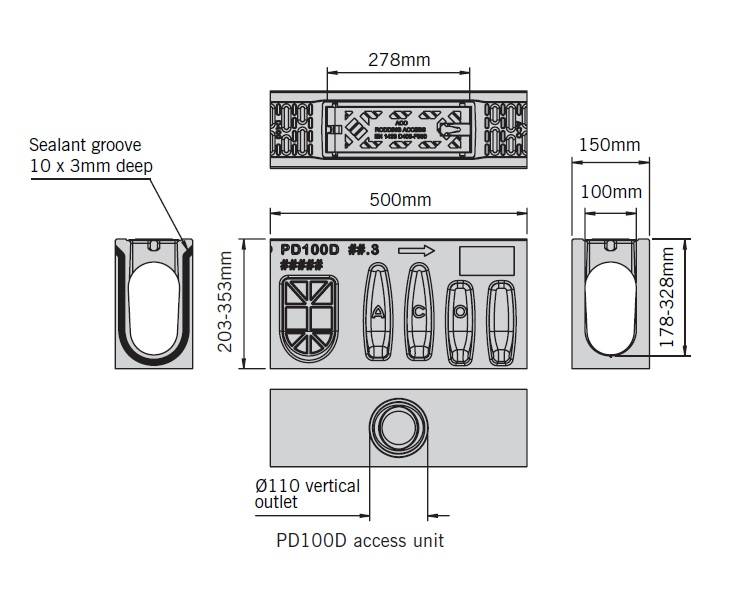

Part of the single-piece MonoDrain system, this ACO MonoDrain Access Unit in Black is designed for the same depth standard channels. The grate and base are integrated into a single unit, provided with a slot component for the easy cleaning and clearing of blockages. The access unit features a knockout section at either side of the channel for 90° connections, alongside a 110mm diameter knockout vertical connection.

Best installed at around five-metre increments to let drain rods and unblockers navigate and maintain the drainage system, this access unit is part of the MonoDrain one-piece system. Quicker to install than separate grate and base drains, MonoDrain combines bases and grates for safe and effective surface water drainage. Gratings are harder to move under the weight of traffic and less likely to get stolen, dislodged or loosened.

Features & Benefits: ACO MonoDrain 305mm x 150mm x 500mm Access Unit - Black

An easy way of clearing blockages and debris
Black to complement wider systems
Seamless access and use in D400 load class areas
Strong and sturdy Vienite structure
Equipped with knockout sections on either side of the channel for 90° connections
110mm diameter knockout vertical connection

Designed to last in D400 load class areas, including car and HGV parks, light-duty landscaping and pedestrian areas, town centres and other commercial developments, MonoDrain's durable and strong ACO-made recycled polymer Vienite concrete structure is reliable. External faces on the base fulfil secure bedding into concrete, and the 8mm Heelguard grates avoid debris access and lessen the danger of falling.

MonoDrain simplifies the specification process and installation to reduce time spent on site. The products complement applications perfectly. The 500mm channel units come in four constant depths of 185mm to 305mm and one shallow constant depth of 135mm.

Standards & Certification

Certified to: BS EN 1433-2002 Class D400

Please note:

ACO MonoDrain is not suitable for public roads, highways and motorways.
Accessories including lockable rodding access points, sumps, gully units and foul air traps let you get more from this system.
