ACO TotalFlow Gully Plastic Telescopic Top with Stainless Steel Loose Slot Grating - 149mm

Code:
106023
Brand:

The ACO TotalFlow range of cast iron gullies comprises a simple, compact range of gully products which are easy to specify, install and maintain. ACO TotalFlow gullies are particularly well suited to use in areas with high levels of pedestrian traffic including railway and bus ... Read More

£56.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, Nov 27th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"fast efficient service and product…"

GD

Description

The ACO TotalFlow range of cast iron gullies comprises a simple, compact range of gully products which are easy to specify, install and maintain.

ACO TotalFlow gullies are particularly well suited to use in areas with high levels of pedestrian traffic including railway and bus stations, airport terminals, public buildings and shopping centres.

The ACO TotalFlow Gully tops come in different materials, sizes and load classes to cover a wide range of applications within the Building Construction Industry. The gully tops are made out of nickel bronze, stainless steel, cast iron, plastic/metal combination and plastic. The TotalFlow Gully Body and Top are push-fit connected which saves time during assembly on-site.

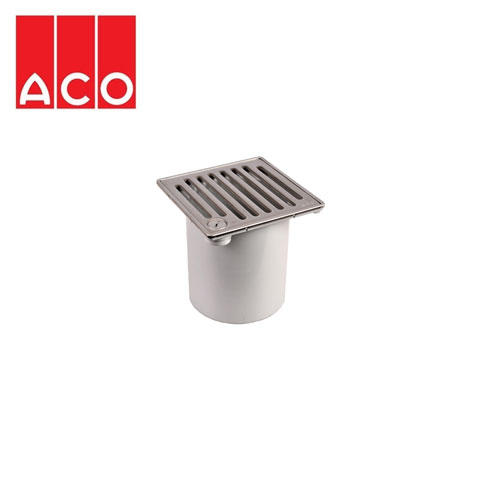

This ACO TotalFlow Plastic Telescopic Gully includes a stainless steel loose slot grating.

Please note: image is for reference only, this product does not come with a lockable slot grating.

Specifications

Material: Plastic housing and Stainless steel (304) grating
Top Side:
149mm
Overall Depth: 150mm
Grating Depth: 5mm
Load Class: K3
Grating Top Side: 104mm
Height Adjustable Range: 85mm
Weight: 0.7kg

Features and Benefits

  • Body manufactured from cast iron for optimum durability
  • The ideal solution for areas with high levels of pedestrian traffic
  • Wide range of gully tops in different materials including nickel, bronze and stainless steel
  • Easy to install
  • Manufactured to BS EN 1253
  • Simple, compact range makes specification easy
  • Suitable for use with a wide variety of flooring solutions

Applications

  • Railway and bus stations
  • Airport terminals
  • Shopping centres
  • Public buildings
  • Leisure and sports facilities
  • Sports stadia
  • Healthcare facilities
  • Educational establishments

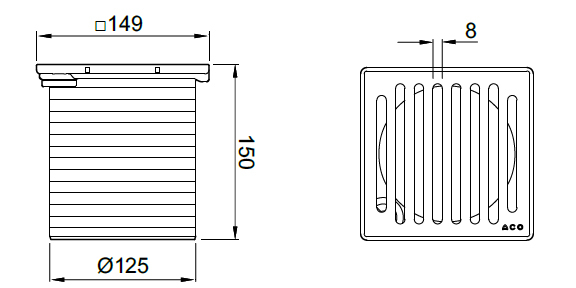

Dimensions

Length 149mm Depth 150mm Width 149mm

Details

Material Plastic Diameter 125mm Grate Design Features Loose Gully Type Telescopic
Purpose Kitchen Type Commercial Application Kitchen
