ACO HygieneFirst 304 Stainless Steel Kitchen Tray Extended Edge Channel 200mm Outlet

Code:
ACO-416-EXTEND-200MM-OUTLET
Brand:

Made from 1.5mm thick 304-grade stainless steel, this ACO HygieneFirst Kitchen Tray Extended Edge Channel is durable, easy to clean and pickle passivated for added corrosion resistance. It features a 200mm contoured outlet for improved drainage at low flow rates and is an idea... Read More

from
£285.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Delivery from: 15-20 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Dec 5th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Fantastic service"

Beverley Smth

Description

Made from 1.5mm thick 304-grade stainless steel, this ACO HygieneFirst Kitchen Tray Extended Edge Channel is durable, easy to clean and pickle passivated for added corrosion resistance. It features a 200mm contoured outlet for improved drainage at low flow rates and is an ideal asset to the HygieneFirst drainage system.

For use with tiled floors with thin bed installation, this Kitchen Tray Extended Edge Channel has a drainable sump, concrete fixing anchors for secure installations, and adjustable levelling feet ranging from 60mm to 110mm. It is compatible with food and drink manufacturing, pharmaceutical manufacturing, commercial kitchens, healthcare facilities and hygiene-sensitive applications, and is equipped with a waterproof membrane to connect to ACO 218 Gully bodies.

Features & Benefits: ACO HygieneFirst 304 Stainless Steel Kitchen Tray Extended Edge Channel 200mm Outlet

  • For use with tiled floors (thin bed installation) in various applications
  • 200mm contoured outlet for positive drainage at low flow rates
  • Durable, easy-to-clean and pickle passivated to resist corrosion
  • 1.5mm thick 304-grade stainless steel
  • Includes a drainable sump and concrete fixing anchors
  • 60mm to 110mm adjustable levelling feet
  • Waterproof membrane connected to ACO 218 Gully bodies
  • Reinforced channel base for tray channels >300mm give extra stability
  • Rounded corners equal or larger than 3mm

Created to prevent dangerous bacteria and pathogen food contamination occurring from drainage elements, ACO's HygieneFirst drainage system follows stringent hygiene requirements and principles for food contact surfaces implemented by BS EN 1672, BS EN ISO 14159 and EHEDG Document 8 requirements for drainage element design.

Standards & Certification

  • Applies to BS EN 1672, BS EN ISO 14159 and EHEDG Document 8 requirements

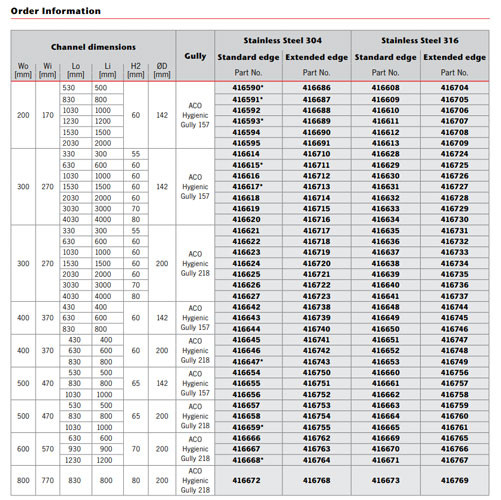

Dimensions

Length 330mm
430mm
530mm
630mm
830mm
930mm
1.03m
1.23m
1.53m
2.03m
3.03m
4.03m
Depth 55mm
60mm
65mm
70mm
80mm
Width 300mm
400mm
500mm
600mm
800mm

Details

Material Stainless Steel Product Type Kitchen Channel Floor Type Extended Application Kitchen
Outlet Size 200mm External Dimensions 1030mm x 300mm x 60mm
1030mm x 500mm x 65mm
1230mm x 600mm x 70mm
1530mm x 300mm x 60mm
2030mm x 300mm x 60mm
3030mm x 300mm x 70mm
330mm x 300mm x 55mm
4030mm x 300mm x 80mm
430mm x 400mm x 60mm
530mm x 500mm x 65mm
630mm x 300mm x 60mm
630mm x 400mm x 60mm
630mm x 600mm x 70mm
830mm x 400mm x 60mm
830mm x 500mm x 65mm
830mm x 800mm x 80mm
930mm x 600mm x 70mm
Range HygieneFirst
