Alusthetic Aluminium Double-Seal Recess 48mm Manhole Cover

Code:

ECOGRID-DS-DC-60

Brand:

Intended to blend seamlessly with the surrounding area, this Alusthetic Aluminium Double-Seal Recess 48mm Manhole Cover can be used externally with its durable extruded aluminium construction. It has been tested to EN124 for lorry load bearing, features a 3mm galvanised steel ... Read More

View full product details

View questions about this product

Internal Dimensions

from

£95.00 Incl. VAT

Earn points

Delivery from: 1-2 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

David Morrison

Description

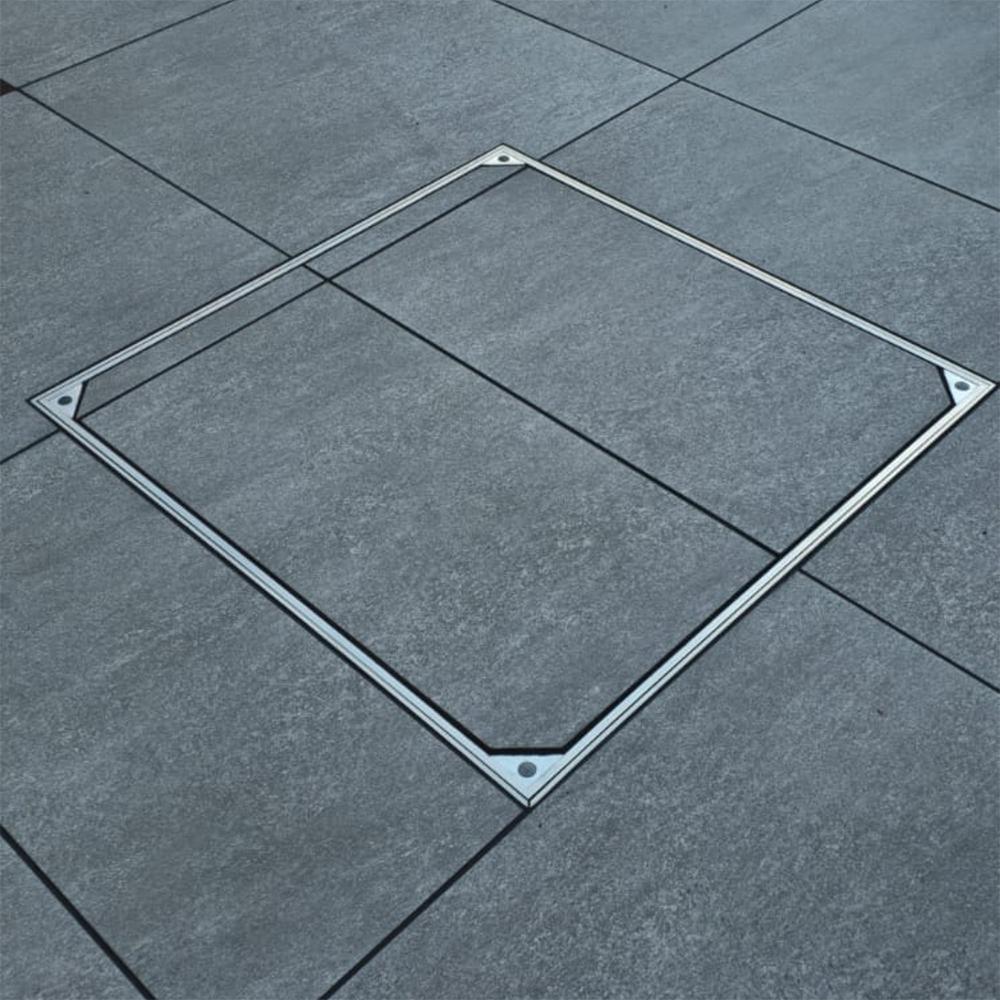

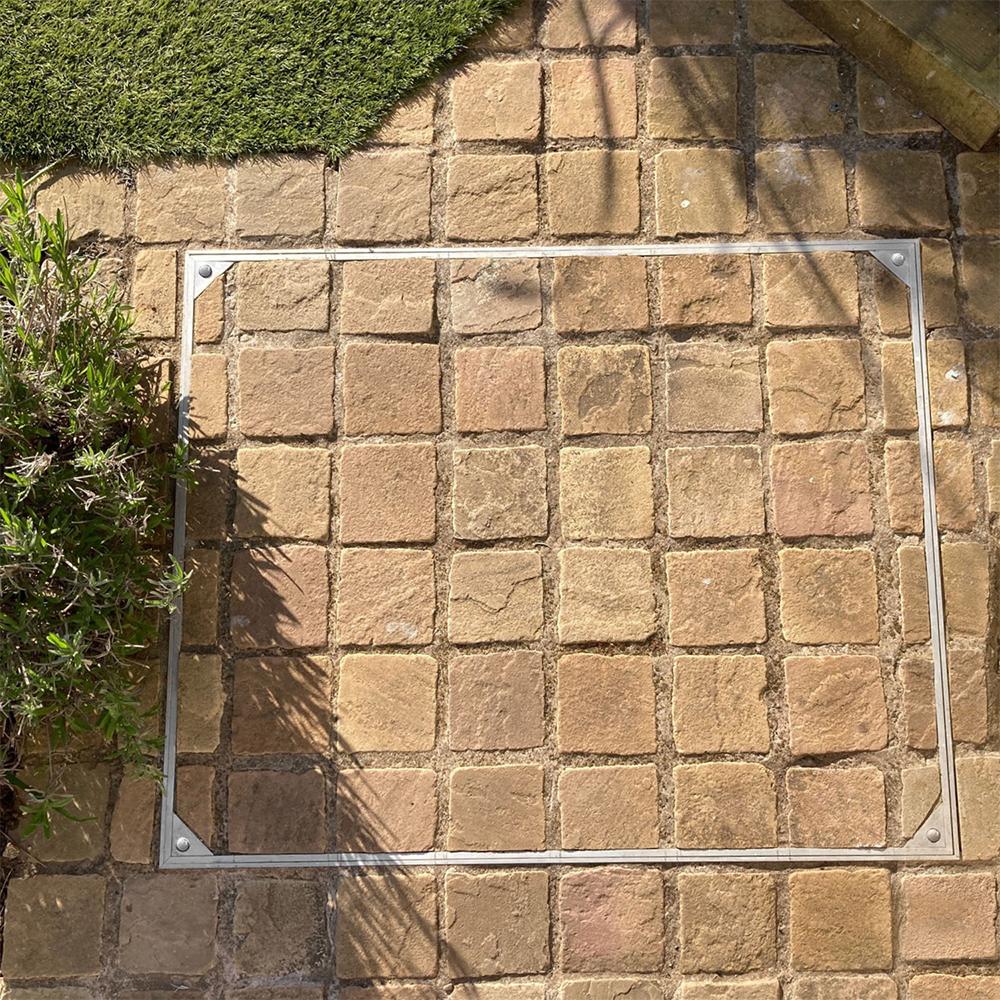

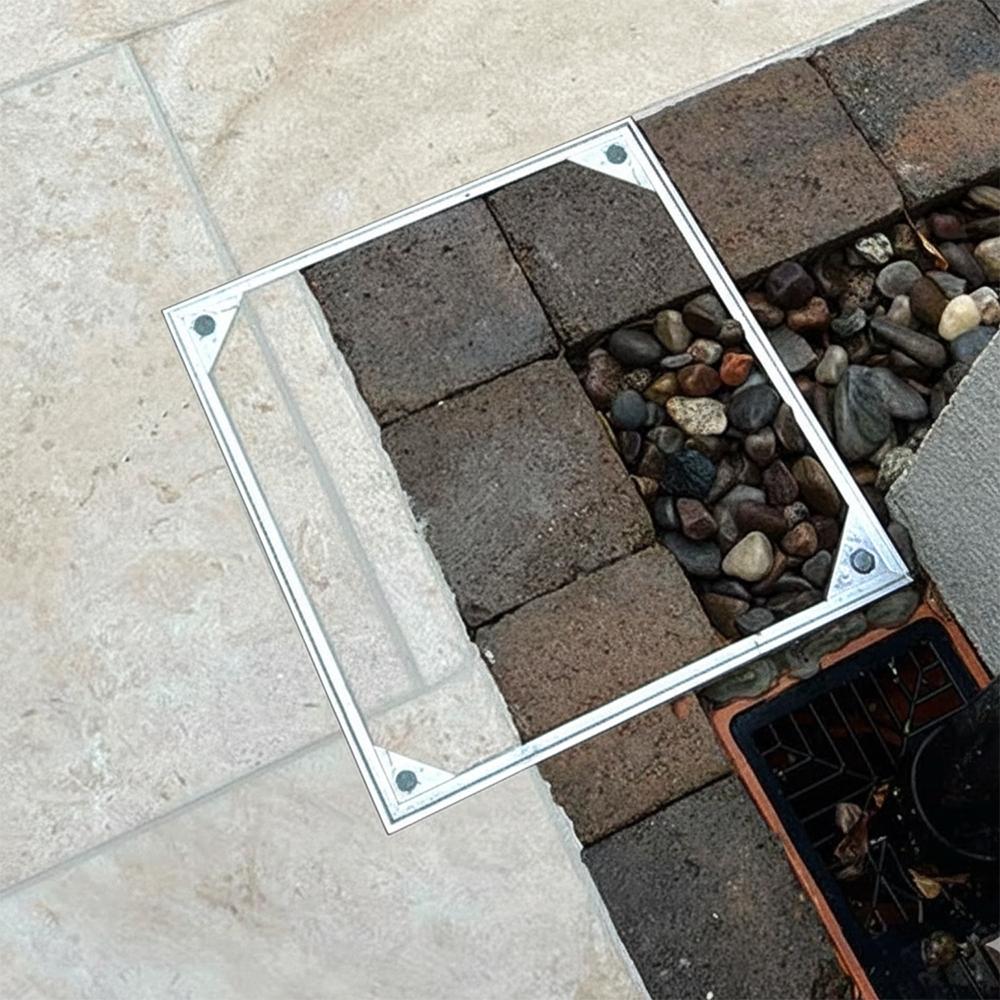

Rather than having a large silver cover that obstructs the view, the recessed frame can be filled with the substrate of its surroundings for a continuous finish. It disguises the cover and negates any unsightly appearances, ideal for grassy, tiled and paved surfaces.

Features & Benefits: Alusthetic Aluminium Double-Seal Recess 48mm Manhole Cover

Used externally with its durable extruded aluminium construction
Features a 3mm galvanised steel bottom plate and a reinforcement mesh to enhance strength
Can be filled with surrounding substrate to disguise the cover, ideal for grassy, tiled and paved surfaces
One seal at the base and a T-rubber seal on the outside frame to inhibit odours and dirt build-up

This product features two seals, one positioned at the base and the other being a T-rubber seal on the outside frame. Thanks to the T-rubber seal, tension between the frame and cover is decreased, inhibiting the escaping of odours and dirt build-up while maintaining a waterproof, odour-proof quality.

Please note:

Double-sealed manhole covers are not lockable. See our triple-sealed options if you require a lockable manhole cover.
Manhole cover measurements are taken from the clear opening. Internal dimensions of the hole are taken to give the size manhole cover that is needed. Double-sealed aluminium recessed manhole cover sizes include from 300mm x 300mm to 1000mm x 1000mm in 48mm and 68mm in-tray depths.

Specification

Dimensions

Length 300mm
450mm
600mm
750mm
900mm
1000mm Depth 48mm Width 1000mm
300mm
450mm
600mm
750mm
900mm

Details

Material Aluminium Product Type Manhole Cover Seal Double-Sealed Features Recessed

Profile Recessed Internal Dimensions 300mm x 300mm
450mm x 450mm
600mm x 450mm
600mm x 600mm
750mm x 600mm
750mm x 750mm
900mm x 600mm
900mm x 900mm
1000mm x 1000mm External Dimensions 1060mm x 1060mm
360mm x 360mm
510mm x 510mm
660mm x 510mm
660mm x 660mm
810mm x 660mm
810mm x 810mm
960mm x 660mm
960mm x 960mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

The EN124 lorry load capacity, what is the actual tonne loading? We need 5 tonnes will this inset manhole cover give us this?

Answer:

This is okay for traffic. On the double sealed I would suggest domestic level traffic on the triple sealed they can go a little heavier.

Question:

What are your returns policy, (as a worst case scenario).

Answer:

You can notify us of intent to return within 14 days of having the last item on your order delivered. You then have a further 14 days to get the product back to us.
