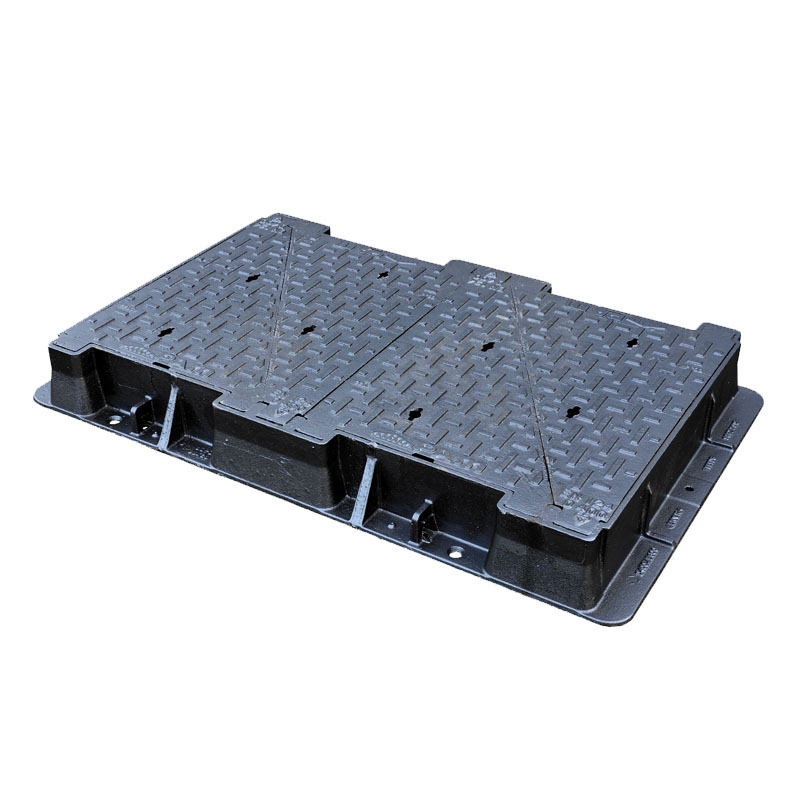

Hambaker Cast Iron Manhole Cover and Frame 1210mm x 685mm x 150mm - E600 Class

Code:
186114
Brand:
Free UK Delivery

For constant high performance across all conditions, this Hambaker Silent Knight E600 Cast Iron Manhole Cover and Frame is rated to EN124 Group 5 E600 load classification. It is suited to use in trunk roads where fast-moving traffic is continuous, and industrial areas prone to... Read More

Create a wishlist

"Excellent service"

George Bethell

Description

For constant high performance across all conditions, this Hambaker Silent Knight E600 Cast Iron Manhole Cover and Frame is rated to EN124 Group 5 E600 load classification. It is suited to use in trunk roads where fast-moving traffic is continuous, and industrial areas prone to very heavy wheel loads, including motorways, docks and container areas.

The double-triangular, non-rock cover and frame includes frame lifting points and a skid-resistant radial chequer design.

Features & Benefits: Hambaker Cast Iron Manhole Cover and Frame 1210mm x 685mm x 150mm - E600 Class

  • Rated to EN124 Group 5 E600 load classification
  • Suited to use in trunk roads where fast-moving traffic is continuous
  • For industrial areas prone to very heavy wheel loads such as motorways, docks and container areas
  • Double-triangular, non-rock cover and frame
  • Includes frame lifting points and a skid-resistant radial chequer design
  • LTS installation and durability features
  • 1210mm x 685mm clear opening and 1375mm x 850mm external dimensions
  • 150mm depth
  • 82kgs lid weight and 259kgs overall cover weight
  • 1.84N/sq. mm pressure bearing

Standards & Certification

  • Highways agency approved under HA104/09

Please note:

  • Customer-specific or generic badging options are available. Anti-theft locking options and a range of Safety Grids are also available.

Dimensions

Length
1210mm
Depth
150mm
Width
685mm

Details

Material
Cast Iron
Product Type
Manhole Cover and Frame
Weight Class
E600
Profile
Solid Top
Internal Dimensions
1210mm x 685mm
External Dimensions
1375mm x 850mm
Use Location
Cargo Handling Yards
Industrial Estates
Loading Bays
Load-Bearing Strength
60 Tonnes
