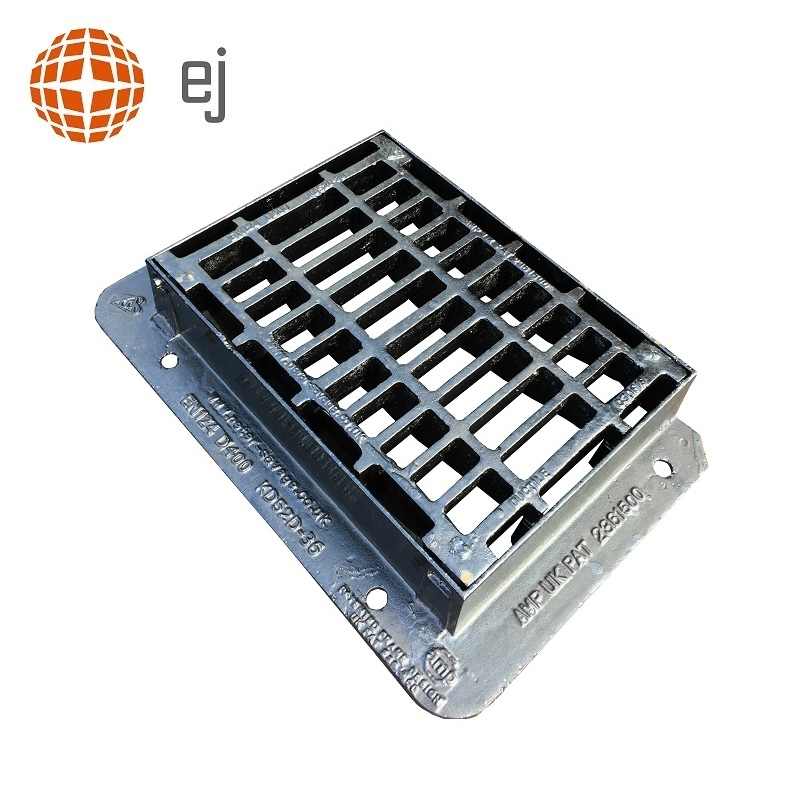

Cast Iron Reversible End Hinged Gully Grating & Frame 500 x 350mm D400

Name: Cast Iron Reversible End Hinged Gully Grating & Frame 500 x 350mm D400
Brand: EJ
SKU: KD52D
Price: 150.00 GBP
Availability: InStock
Rating: 4.5 (2 reviews)

Code:

KD52D

Brand:

For Group 4 use across carriageways and main roads exposed to fast-moving traffic, this EJ Cast Iron Straight Bar Hinged Gully Grating and Frame is constructed with the use of (A. M. P.'s) anti-movement technology and meets BS EN124 Class D400, making it suited to 40-tonne safe ... Read More

View full product details

View questions about this product

Internal Dimensions

£150.00 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Mr Allwright

Description

For Group 4 use across carriageways and main roads exposed to fast-moving traffic, this EJ Cast Iron Straight Bar Hinged Gully Grating and Frame is constructed with the use of (A.M.P.'s) anti-movement technology and meets BS EN124 Class D400, making it suited to 40-tonne safe test loads.

This product features a non-rock captive reversible side hinge that improves stability and makes operation quiet. It has been works safety tested to 44 tonnes, equivalent to +10%, and has a ductile iron structure for an advanced weight-to-strength ratio finished with a black coating.

Features & Benefits: Cast Iron Reversible End Hinged Gully Grating & Frame 500 x 350mm D400

For Group 4 use across carriageways and main roads exposed to fast-moving traffic
Class D400, suited to 40-tonne safe test loads
Non-rock captive reversible side hinge improves stability and makes operation quiet
Black coated ductile iron structure for an advanced weight-to-strength ratio
500mm x 350mm over grate and 650mm x 435mm external frame
100mm frame depth
982cm² waterway
42kgs weight

This Ultra product is manufactured to conform to the Design Manual for Roads Bridges Vol 4, Section 2, part 5. HA104/02 and BS 7903. Three-flanged products are for Group 3 areas.

Standards & Certification

Meets BS EN124 Class D400
Kitemarked for third party assurance of quality

Specification

Dimensions

Length 500mm Depth 100mm Width 350mm

Details

Material Cast Iron Product Type Gully Grid and Frame Shape Rectangular Weight Class D400

Profile Grid Internal Dimensions 500mm x 350mm External Dimensions 650mm x 435mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes
