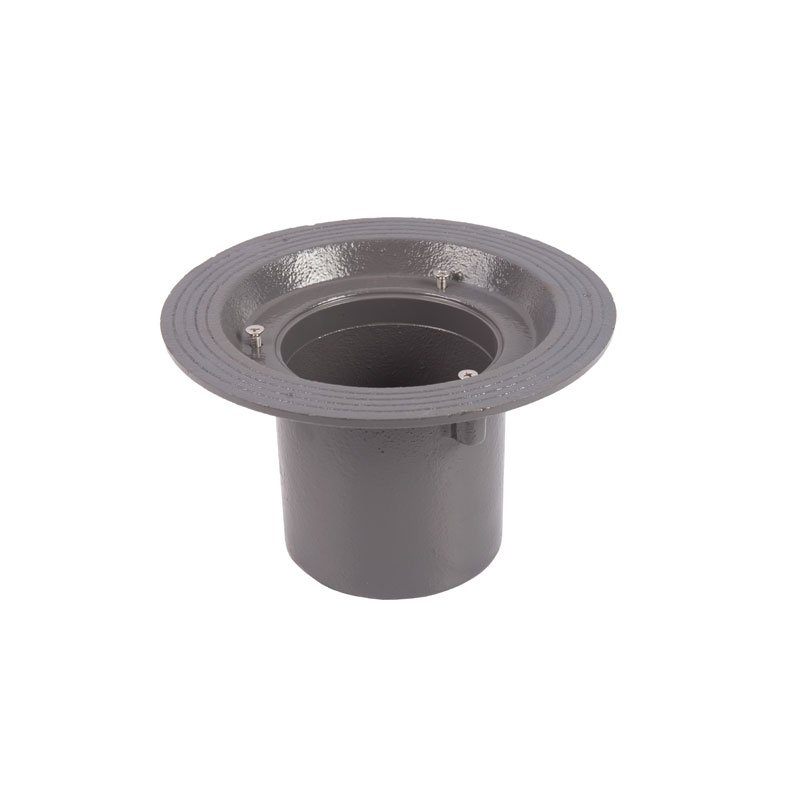

VortX Cast Iron Shower Drain Body Vertical 110mm Outlet

Code:
227125
Free UK Delivery

From the VortX range that makes fantastic solutions for various flooring applications, this Shower Drain Body Outlet has a 110mm vertical spigot and three fixing screws for stainless steel gratings (VX-S270 - VX-S271). It's made to connect to cast iron BS EN 877 systems and ca... Read More

Create a wishlist

"Came when said and no problems"

Roy Bowler

Description

From the VortX range that makes fantastic solutions for various flooring applications, this Shower Drain Body Outlet has a 110mm vertical spigot and three fixing screws for stainless steel gratings (VX-S270 - VX-S271). It's made to connect to cast iron BS EN 877 systems and can be attached to any pipework material or system when using the correct adaptors and standard couplings.

Saint Gobain's VortX range is suited to tile, vinyl and screed floors and makes choosing drainage effortlessly easy. The range includes registered designs with removable bottle traps with twist lock fitting of dip tubes and cups. Gratings are NPSM thread fitted or directly fitted if a gully isn't needed, and the range also utilises clever P and S trap gully designs. S traps need only a 180mm borehole which is a chance to cut down on costs.

Features & Benefits: VortX Cast Iron Shower Drain Body Vertical 110mm Outlet

  • 130mm in height
  • 110mm spigot
  • Gully Diameter of 210mm
  • Three fixing screws for stainless steel gratings (VX-S270 - VX-S271)
  • VortX range is suited to tile, vinyl and screed floors
  • Product weighs 2.4kgs
  • Made from durable cast iron

Product Specification

  • Spigot Diameter: 110mm
  • Height: 130mm
  • Weight: 2.4kg

Standards & Certification

  • Manufactured to BS EN 877

Details

Material Cast Iron Product Type Gully Diameter 210mm Gully Type Vertical
Floor Type Vinyl/sheet Purpose Shower
