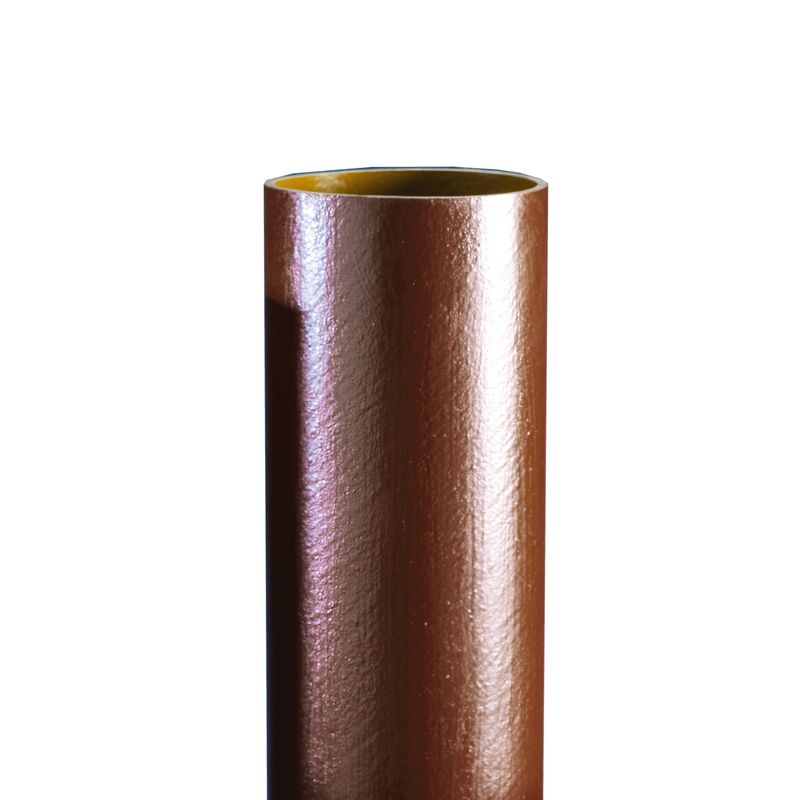

Cast Iron Underground Drain Pipe 150mm x 3m - SML Harmer

Code:

232057

Brand:

This Harmer SML Cast Iron Underground Drain Pipe is part of a sturdy and flexible dry-jointed pipework system that is easy to install and suited to various applications. It is lightweight yet durable, making it resistant to accidental external damage and vandalism, and eco-fri... Read More

View full product details

View questions about this product

Pipe Diameter

£275.00 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Darren

Description

With a choice of ductile or stainless steel couplings, the complete soil and waste pipework system covers installation from pipework connection to stack to underground sewer connection. It is compatible with rainwater installations alongside Harmer Roof Outlets with pipes in lengths of 3m and diameters ranging from 50mm to 400mm. You can construct your system using the twin screw couplings. Socketless fixing between pipe and fittings is easy but secure without special installation equipment.

Features & Benefits: Cast Iron Underground Drain Pipe 150mm x 3m - SML Harmer

Lightweight but strong cast iron
High tensile strength
Easily assembled with socketless fixing
Resilient primer and epoxy coatings for low maintenance
Recyclable after use
System suited to various applications

The pipes and fittings from this system are crafted from grey iron to DIN 1691 (exceeds BS 1452 Grade 150 ISO 185 Grade 15), while the couplings feature stainless steel and ductile cast iron constructions. The pipes are coated with a primer (minimum thickness of 40 µm) on their exteriors and an epoxy coating (minimum thickness of 120 µm) on their interiors. Fittings, however, are coated both externally and internally with an epoxy coating (minimum thickness 60 µm). These epoxy coatings mean that pipes and fittings will only require minimal maintenance during their service life.

High in tensile strength and non-combustible to prevent the need for fire protection collars, Harmer SML stands as a cutting-edge cast iron technology, with BBA certification, full compliance with BS EN 877, Kitemark certification, and CE Mark conformity.

Standards & Certification

Meets British and European Standards: BS EN 877 and BS EN 14366; 2004 for excellent noise attenuation
Certification: BBA Agrément certified
CE Mark: European product conformity to harmonised standard BS EN 877 in accordance with Construction Products Regulation 2013
Kitemark Certification: in accordance with BS EN877
