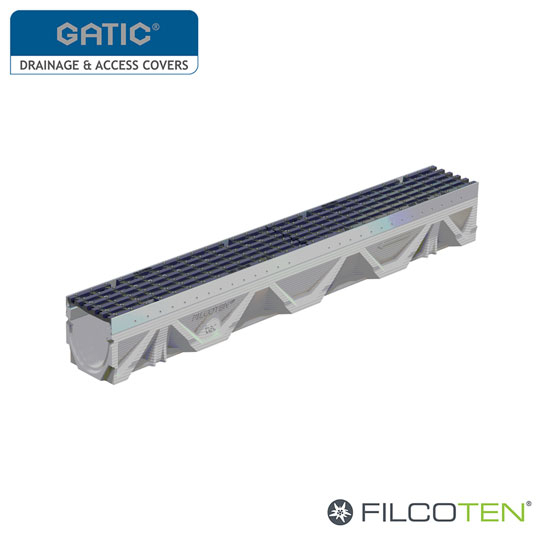

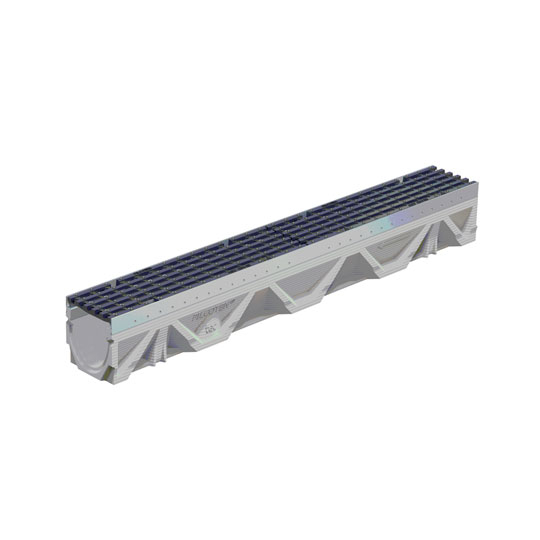

Filcoten Tec NW100 Channel with D400 Ductile Iron Heelsafe Grate - 1000mm

Code:
10410700
Free UK Delivery

This item is out of stock and not available to purchase.

The Filcoten TEC channel system offers the superior product characteristics of Filcoten along with additional safety aspects. Anchoring ribs ensure a secure bonding with the surrounding concrete bed. The special design of the galvanised steel rails allows for secure grating lo... Read More

Create a wishlist

"Easy to order and Timely delivery."

Farhad

Description

The Filcoten TEC channel system offers the superior product characteristics of Filcoten along with additional safety aspects. Anchoring ribs ensure a secure bonding with the surrounding concrete bed. The special design of the galvanised steel rails allows for secure grating locking with the snap-on locking system.

Features of Filcoten Tec Channel

  • Temperature, frost and UV resistant
  • Improved impact stability
  • Up to 70% lighter than concrete channels
  • 100% recyclable
  • Non-flammable
  • High compressive strength

Technical

Length: 1000mm
Width: 130mm
Height: 135mm
Invert: 100mm
Load rating: D400
Grate: Heelsafe
Weight: 19.8kg

Dimensions

Length 1m Depth 135mm Width 130mm

Details

Material Galvanised Steel Features Heelguard Grate Weight Class D400

Downloads

There are no product downloads to show.

Questions & Answers

Question:

What does weight class 'D400' mean on the Filcoten Tec NW100 channel with D400 ductile iron heelsafe grate - 1000mm?

Answer:

The D400 load rating for the Filcoten Tec NW100 channel with D400 ductile iron heelsafe grate - 1000mm means that this is suitable for 40 Tonne vehicles. This would be for highways use suitable for HGVs to travel over.

Question:

How do you lift the grating to allow cleaning of the channel?

Answer:

The Filcoten Tec NW100 channel with D400 ductile iron heelsafe grate - 1000mm can be lifted using lifting tools such as product code 1018J
