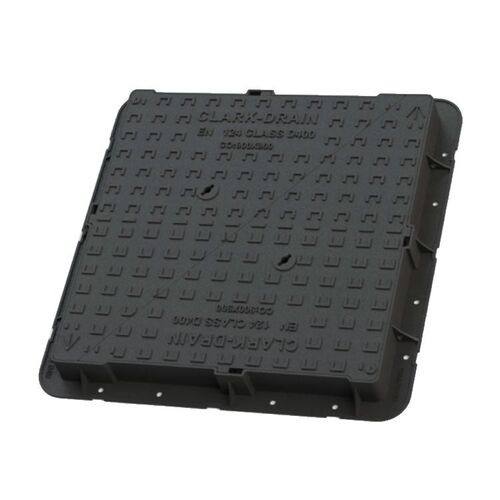

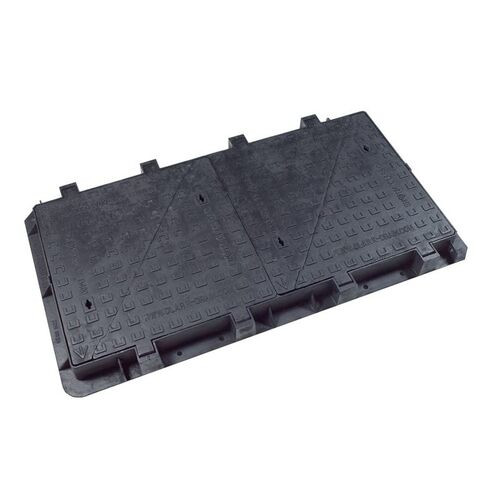

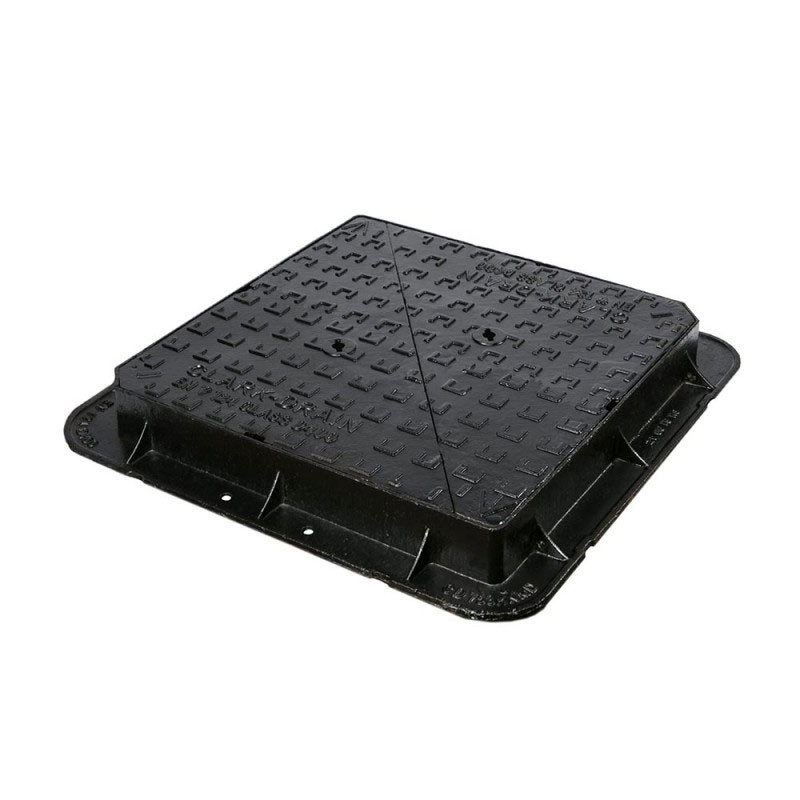

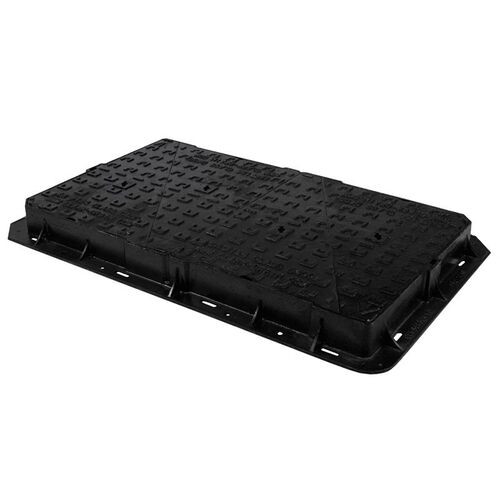

Clark Drain Cast Iron Manhole Cover & Frame For Carriageways 100mm - D400

Code:
CLARK-DRAIN-100M-CD-H-KMD
Brand:
Clark Drain

This robust Clark Drain Cast Iron Manhole Cover and Frame is engineered for the tough demands of highways and carriageways in commercial or industrial areas. This heavy-duty solution is primed to handle D400 loading up to 40 tonnes, ensuring reliable performance even in high-t... Read More

View full product details
View questions about this product
from
£198.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Configure & Buy
Delivery from: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"The item I ordered was delivered r…"

Mr Maggs
Description Specification Downloads Q&A Product options

Description

This robust Clark Drain Cast Iron Manhole Cover and Frame is engineered for the tough demands of highways and carriageways in commercial or industrial areas. This heavy-duty solution is primed to handle D400 loading up to 40 tonnes, ensuring reliable performance even in high-traffic areas. Featuring integral keyholes, it is compatible with CD 552 lifting keys.

Certified to the rigorous standards of BS EN124:1994 and boasting the trusted BSI Kitemark, this product offers exceptional quality and durability. Its double-triangular solid top design guarantees superior strength, while the sleek black bitumen coating adds an extra layer of protection against the elements.

Features & Benefits: Clark Drain Cast Iron Manhole Cover & Frame For Carriageways 100mm - D400

  • Ideal for highways/carriageway use
  • D400 loading capacity with up to 40-tonnes load-bearing strength for heavy traffic areas
  • Integral lifting keyholes, compatible with CD 552 lifting keys
  • Double-triangular solid top for added strength
  • Black bitumen coating for enhanced durability
  • Non-rock three-point suspension cover

Standards & Certification

  • Spheroid Graphite Iron Material: Grade EN-GJS-500-7 to BS EN 1563: 2011
  • Temporary Bitumen-based paint coating: to BS 3416
  • BSI Kitemark: Certified to BS EN124: 1994

Dimensions

Length 600mm
675mm
750mm
900mm
1200mm
1500mm Depth 100mm Width 600mm
675mm
750mm
900mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Weight Class D400 Profile Solid Top
Internal Dimensions 1200mm x 675mm
1500mm x 750mm
600mm x 600mm
675mm x 675mm
750mm x 600mm
750mm x 750mm
900mm x 600mm
900mm x 900mm External Dimensions 1050mm x 1050mm
813mm x 813mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes
