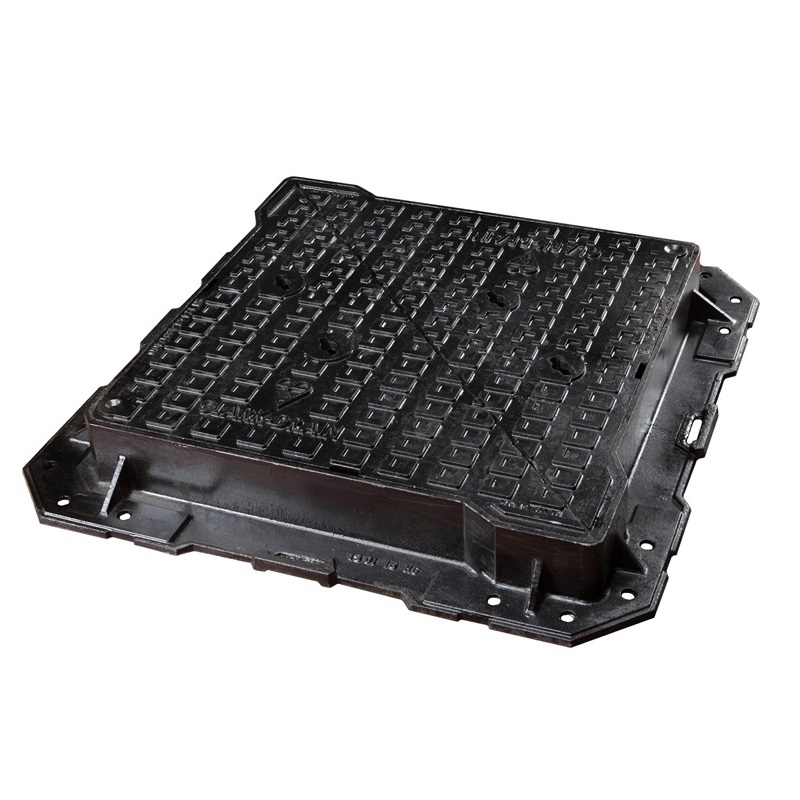

Clark Drain D400 Cast Iron High Max Manhole Cover & Frame For Carraigeways - 600 x 600 x 100mm

Name: Clark Drain D400 Cast Iron High Max Manhole Cover & Frame For Carraigeways - 600 x 600 x 100mm
Brand: Clark Drain
SKU: CD 901H KMD
Price: 449.95 GBP
Availability: Discontinued

Code:

CD 901H KMD

Brand:

Clark Drain

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

High max double triangular cover & frame Application: Highways (Carriageway) & Industrial areasLoading: D400Lifting Key: CD 552LAccreditations:BS EN124:1994. BSI Kitemark Certified. HA104/09 (Low & High risk areas) compliant. Product Features Cover & Frame: Cover and frame ... Read More

View full product details

View questions about this product

Create a wishlist

malcolm jamieson

Description

High max double triangular cover & frame

Application: Highways (Carriageway) & Industrial areas
Loading: D400
Lifting Key: CD 552L
Accreditations:
BS EN124:1994. BSI Kitemark Certified. HA104/09 (Low & High risk areas) compliant.

Product Features

Cover & Frame: Cover and frame is capable of withstanding a 44 tonne test load. Made from high grade ductile iron for optimum strength and durability. Double-Triangular cover. Solid flange. Ductile iron.
Frame: Non-rock three point suspension using oversized cover corners direct the loading stresses for best-case frame and bedding interaction. The shape of the flange has been optimised to increase the area where the load is concentrated. Flared frame helps to transfer dynamic loads around the corners to minimise the stresses on the bedding. The solid flange meets the the minimum 75mm width conforming to BS 7903
Components: Product accessories to enhance, protect and increase safety include options for:- Drop in ductile iron low leak plate; Bolt-down steel sealing plate; GRP sealing plate; Safety Grids;Security grills
Material: Ductile iron
Finish: Black bitumen coating
Lifting: Non slip safety key holes compatible with long handle lifting keys and other mechanical lifting devices supports safe manual handling
Suitable for: Existing, older installations that need replacement covers.The 600mm x 600mm clear opening incorporates a frame design to accommodate imperial 24’’x 24’’ pit sizes
Suitable for: Highways (Carriageway) & Industrial areas

Dimensions

External Dimensions: 847mm x 847mm x 100mm
Clear Opening: 600mm x 600mm x 100mm

Specification

Dimensions

Length 600mm Depth 100mm Width 600mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Weight Class D400 Profile Solid Top

Internal Dimensions 600mm x 600mm External Dimensions 847mm x 847mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes
