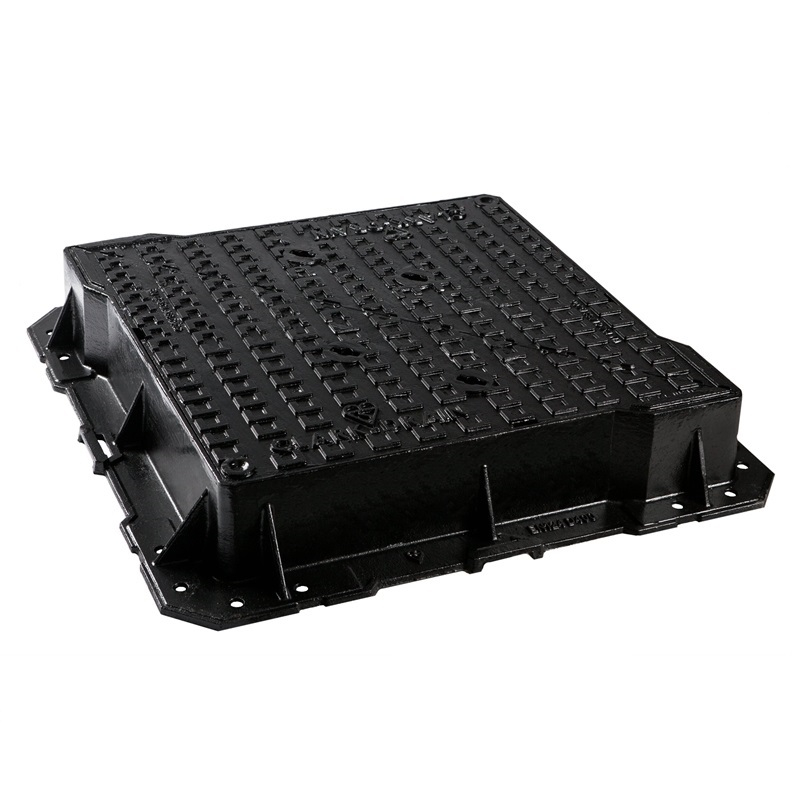

Clark Drain D400 Cast Iron High Max Manhole Cover & Frame For Carriageways - 675mm x 675mm x 150mm

Code:
CD 902AH KMD
Brand:
Clark Drain

Ideal for highways, carriageways, industrial areas and existing projects needing replacement covers, this Clark Drain Cast Iron High Max Manhole Cover and Frame has a loading class of D400 and is capable of withstanding 44-tonne test loads. The double-triangular cover and fram... Read More

View full product details
View questions about this product
£475.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 5-7 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Oct 29th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"No pipe ducting blues."

Tony Woodhead
Description Specification Downloads Q&A

Description

Ideal for highways, carriageways, industrial areas and existing projects needing replacement covers, this Clark Drain Cast Iron High Max Manhole Cover and Frame has a loading class of D400 and is capable of withstanding 44-tonne test loads. The double-triangular cover and frame with solid flange are crafted from durable high-grade ductile iron, finished with a black bitumen coating.

With a non-rock three-point suspension and oversized cover corners, the frame directs the loading stresses for the best-case frame and bedding interaction. The shape of the 75mm wide solid flange is enhanced, improving the area where the load is concentrated, and the flared frame aids in the transfer of dynamic loads around the corners to alleviate stress and pressure on the bedding.

Features & Benefits: Clark Drain D400 Cast Iron High Max Manhole Cover & Frame For Carriageways - 675mm x 675mm x 150mm

  • Ideal for highways, carriageways, industrial areas and existing projects needing replacement covers
  • Loading class of D400, capable of withstanding 44-tonne test loads
  • Double-triangular cover and frame with 75mm wide solid flange
  • Crafted from durable high-grade ductile iron, finished with a black bitumen coating
  • Non-rock three-point suspension and oversized cover corners
  • Flared frame aids transfer of dynamic loads around the corners to alleviate stress on the bedding
  • Non-slip safety keyholes for CD 552L lifting keys/mechanical lifting devices that support safe manual handling
  • 925mm x 925mm x 150mm External Dimensions
  • 675mm x 675mm x 150mm Clear Opening

To help with lifting, the non-slip safety keyholes can be used with long-handle lifting keys, CD 552L lifting keys, as well as similar mechanical lifting devices that support safe manual handling.

Standards & Certification

  • Solid flange meets the minimum 75mm width conforming to BS 7903
  • Conforms to BS EN124 1994
  • BSI Kitemark Certified
  • HA104/09 (Low and High-risk areas) compliant

Please note:

  • Product accessories to enhance, protect and increase safety include options for drops in low leak plates, bolt-down steel sealing plates, GRP sealing plates, safety grids and security grills.

Dimensions

Length 675mm Depth 150mm Width 675mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Weight Class D400 Profile Solid Top
Internal Dimensions 675mm x 675mm External Dimensions 925mm x 925mm Use Location High Traffic
Highways
Main Roads
Public Car Parks Load-Bearing Strength 40 Tonnes

Downloads

There are no product downloads to show.

Questions & Answers

There are currently no questions for this product.
