DISCON - Clark Drain D400 Cast Iron SW Badged Manhole Cover & Frame 675mm x 675mm x 150mm

Code:
CD 1659AKMDSW
Free UK Delivery

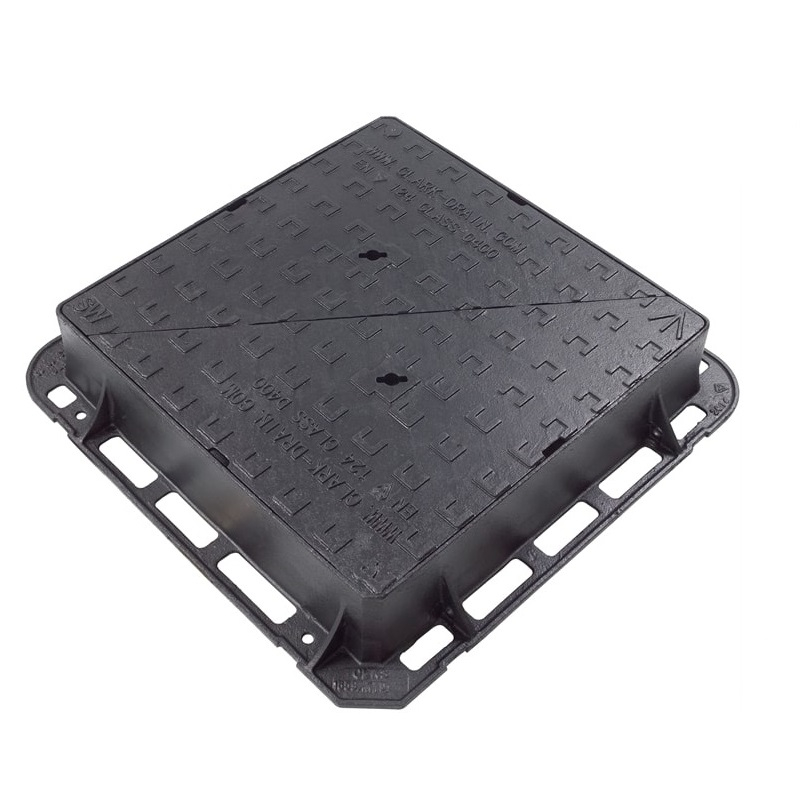

From Clarke Drain, this Double Triangular Manhole Cover and Frame is badged 'SW'. With a sturdy ductile iron structure, black bitumen coating and skeletal flange, it can be used in residential, light industrial and commercial estates. Thanks to its loading class of D400, it ca... Read More

Create a wishlist

"Excellent service and very speedy…"

Chris Wallader

Description

From Clarke Drain, this Double Triangular Manhole Cover and Frame is badged 'SW'. With a sturdy ductile iron structure, black bitumen coating and skeletal flange, it can be used in residential, light industrial and commercial estates. Thanks to its loading class of D400, it can withstand 40-tonne test loads and is compatible with a CD 552 lifting key.

Features & Benefits: DISCON - Clark Drain D400 Cast Iron SW Badged Manhole Cover & Frame 675mm x 675mm x 150mm

  • Double-triangular cover and frame with skeletal flange
  • Badged 'SW'
  • Sturdy ductile iron structure and black bitumen coating
  • Can be used in residential, light industrial and commercial estates
  • Loading class of D400, withstands 40-tonne test loads
  • Compatible with a CD 552 lifting key
  • 821mm x 821mm x 150mm External Dimensions
  • 675mm x 675mm Clear Opening

Standards & Certification

  • Conforms to BS EN124 1994
  • BSI Kitemark Certified

Please note:

  • Not for carriageway use.

Dimensions

Length
600mm
675mm
1200mm
Depth
150mm
Width
600mm
675mm

Details

Material
Cast Iron
Product Type
Manhole Cover and Frame
Weight Class
D400
Profile
Solid Top
Internal Dimensions
675mm x 675mm
External Dimensions
821mm x 821mm
Use Location
High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength
40 Tonnes
