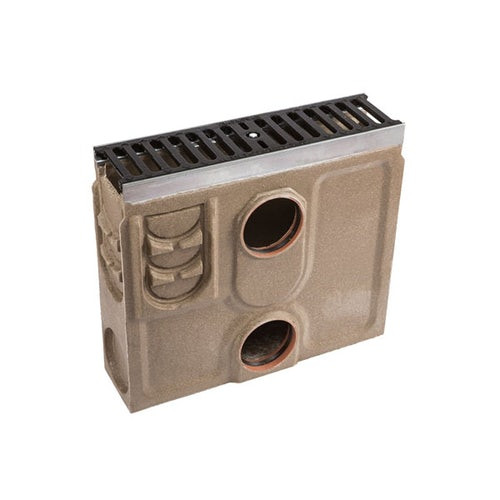

Clark Drain D400 Channel Drain Sump with Ductile Iron Grating - 500mm x 135mm x 454mm

Code:
CLARK-DRAIN-CD-D10-SBG

This item is out of stock and not available to purchase.

External Dimensions: 500 (L) x 135 (W) x 454 (H)Clear Opening: 500 (L) x 100 (W) x 440 (H)Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking... Read More

Create a wishlist

"Perfect service"

lisa goncalves

Description

External Dimensions: 500 (L) x 135 (W) x 454 (H)
Clear Opening: 500 (L) x 100 (W) x 440 (H)
Channel & Grate: Polymer concrete with galvanised steel edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. Locking bar slots. 1x 500mm ductile iron slotted grate.
Finish: Ductile iron grates are coated with black bitumen.
Locking: Locking bar & bolt fitted.
Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.

Dimensions

Length 500mm Depth 454mm Width 135mm

Details

Material Concrete
Ductile Iron
Weight Class D400 Grate Design Features Heelguard Grate
Slotted Grate
Grate Material Ductile Iron
