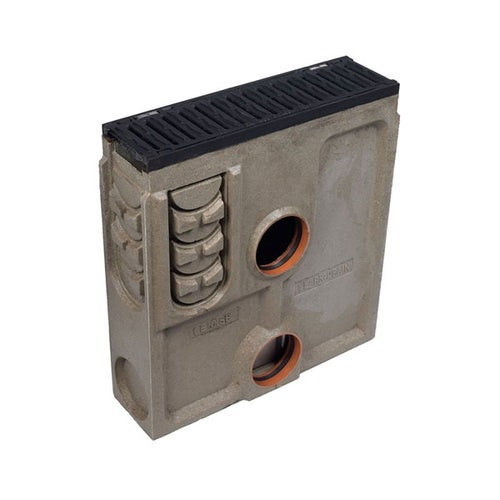

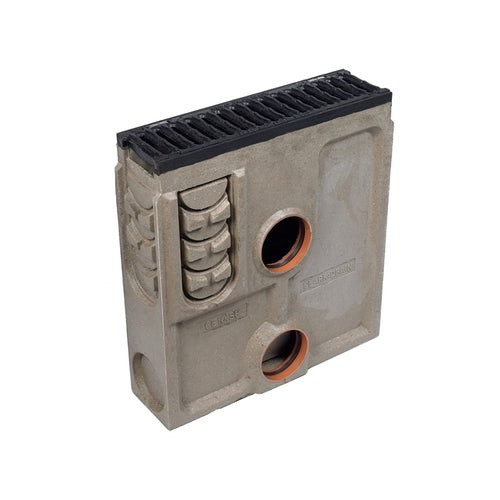

Clark Drain F900 Channel Drain Sump with Ductile Iron Grating - 500mm x 142mm x 550mm

Code:
CLARK-DRAIN-CD-F10-SBC

This item is out of stock and not available to purchase.

External Dimensions: 500 (L) x 142 (W) x 550 (H)Clear Opening: 475 (L) x 100 (W) x 536 (H)Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. 1x 500mm ductile... Read More

Create a wishlist

"Brilliant from start to finish"

L Munday

Description

External Dimensions: 500 (L) x 142 (W) x 550 (H)
Clear Opening: 475 (L) x 100 (W) x 536 (H)
Channel & Grate: Polymer concrete with ductile iron edge rails. Multiple knockout sections and blanking caps offering a variety of inlet and outlet options. 1x 500mm ductile iron slotted grate.
Finish: Ductile iron grates are coated with black bitumen.
Locking: Catchlock clips fitted.
Mud Basket: Galvanised steel.
Multi-Directional: Fits in-line with channel run or at 90 degree angle.
Suitable for: CD F10-63 Channel.

Applications

  • Airports
  • Loading Bays
  • Industrial Sites
  • Service Stations
  • Service Yards

Dimensions

Length 500mm Depth 550mm Width 142mm

Details

Material Concrete
Ductile Iron
Weight Class F900 Grate Design Features Heelguard Grate
Slotted Grate
Grate Material Ductile Iron
