DISCON - Clark-Chamber Ducting Access Panel 300mm x 300mm - B125

Name: DISCON - Clark-Chamber Ducting Access Panel 300mm x 300mm - B125
Brand: Clark Drain
SKU: CD 251
Price: 9.31 GBP
Availability: LimitedAvailability

Code:

CD 251

Brand:

Clark Drain

Free UK Delivery

Designed for use with the Clark-Chamber system, this Ducting Access Panel offers a secure pathway for footways and road verges. Its ingenious honeycomb structure provides unmatched sturdiness, enhancing the durability of the chamber panels. Made from 100% recycled polypropylene... Read More

View full product details

Ask a question about this product

Create a wishlist

Stephen Marsh

Description

Made from 100% recycled polypropylene, this panel not only ensures safety and longevity but also presents a lightweight and robust solution, significantly reducing time for electrical and groundwork contractors on site. With its effortless installation and maintenance features, accessing underground utilities has never been safer or more convenient.

Features & Benefits: DISCON - Clark-Chamber Ducting Access Panel 300mm x 300mm - B125

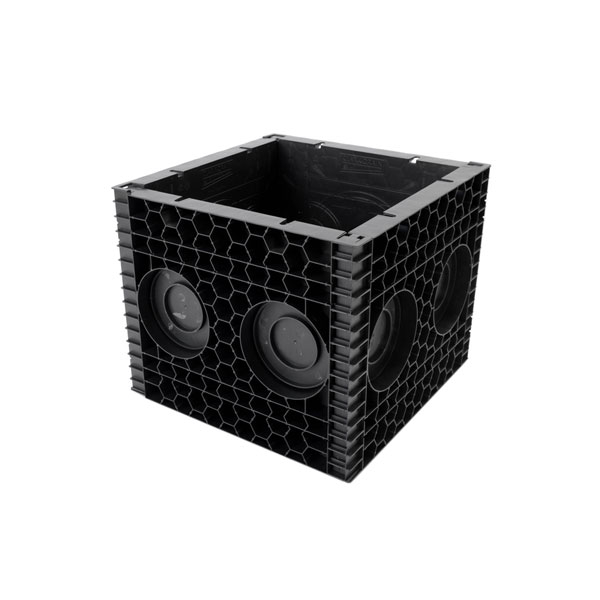

Designed for use with the Clark-chamber system

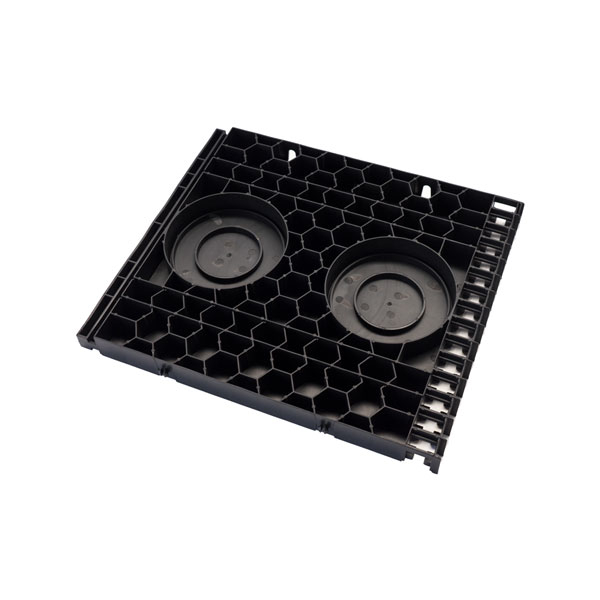

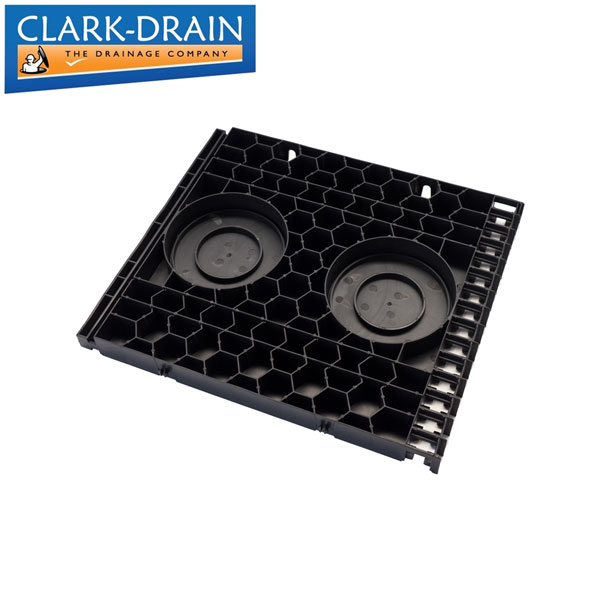

Unique honeycomb design for enhanced structural strength and durability
Constructed from 100% recycled polypropylene
Quick and easy assembly and installation with push-fit connections and trepanned duct entries
Resistant to chemicals, deformation, rust and corrosion
Suitable for pedestrian and light vehicular traffic up to 12.5-tonnes with a B125 load class rating
Captive cage nut locking for fixing lid to frame using two stainless steel cap-head screws
Traffic signals/street lighting badging as standard
300mm x 300mm clear opening

The B125 chamber boasts push-fit connections, enabling swift and efficient assembly of interlocking panels, perfectly suited for various utility applications at recommended depths. Leveraging the convenience of sliding T-Slot corner connections, it facilitates seamless levelling and hassle-free assembly, while the provision for trepanned entries eliminates the need for intricate measuring or marking during duct entries.

Safeguarding pedestrians in diverse environments, the non-ferrous B125 composite cover with a galvanised louvre frame is engineered to be non-conductive, effectively mitigating the risk of voltage dispersion, especially in wet conditions. Its exceptional resistance to chemicals, deformation, rust and corrosion ensures prolonged longevity, assuring an optimal product lifespan. Furthermore, with a remarkable PSRV slip resistance value of 60, the cover proves to be an excellent fit for both pedestrian and light vehicular traffic, accommodating loads of up to 12.5 tonnes with ease.
