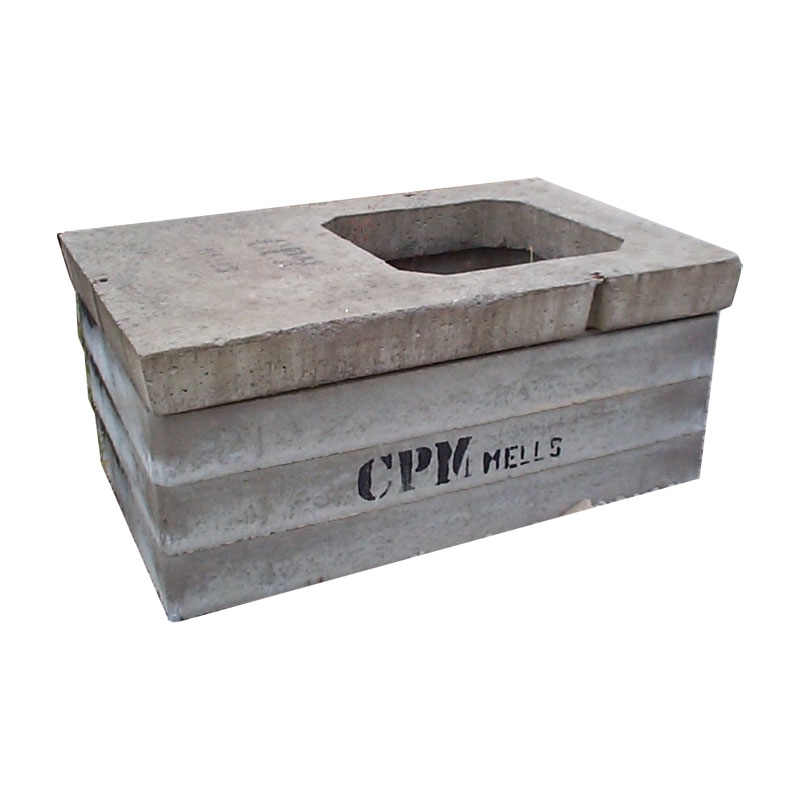

Concrete Chamber Section 750mm x 600mm Manhole Biscuit Cover Slab

Code:
750600T

This item is out of stock and not available to purchase.

Dimensions of manhole biscuit Internal Dimension : 750 x 600mm External Dimension : 865 x 715mm Height : 120mm Weight : 67kgs Description CPM produce a range of precast concrete house inspection chambers (HIC), also known as precast concrete cover slabs or manhole cover slab... Read More

Create a wishlist

"No problems"

Richard Langley

Description

Dimensions of manhole biscuit
Internal Dimension : 750 x 600mm
External Dimension : 865 x 715mm
Height : 120mm
Weight : 67kgs

Description

CPM produce a range of precast concrete house inspection chambers (HIC), also known as precast concrete cover slabs or manhole cover slab products, in a variety of depths, with tongue and groove joints to BS EN 1917:2002/BS 5911-4:2002.

HIC units can be supplied banded as detailed in the tables on weights and dimensions.

The chambers, which are economic and versatile to meet the demands of domestic drainage installation, are easily handled and excavation below ground level is reduced to a minimum.

For depths in excess of 1.5m the use of a concrete surround is recommended.

There are no product specifications to show.

Downloads

There are no product downloads to show.

Questions & Answers

Question:

My drain hole is inside dimensions of 750mm by 600mm, is this cover designed to cover that, or is this products dimensions 750mm by 600mm ? And I would need a bigger size???

Answer:

The internal dimensions of the chamber are 750 x 600mm so a cover of 750x600mm will fit ontop of it.
