Clark Drain D400 Double Sealed Recessed Manhole Cover and Frame 600mm x 600mm x 100mm

Code:
CD D630J-DSL
Brand:
Clark Drain

This Clark Drain Double Sealed Recessed Manhole Cover and Frame is a robust solution designed for commercial and industrial zones and perfect for estates. Made from high-quality Spheroid Graphite Iron Grade EN-GJS-500-7, it's an assurance of durability. The temporary Bitumen-b... Read More

View full product details
View questions about this product
£336.00 Incl. VAT
Was: £375.00 Incl. VAT
You save: £39.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great communication"

Daniel McBride
Description Specification Downloads Q&A

Description

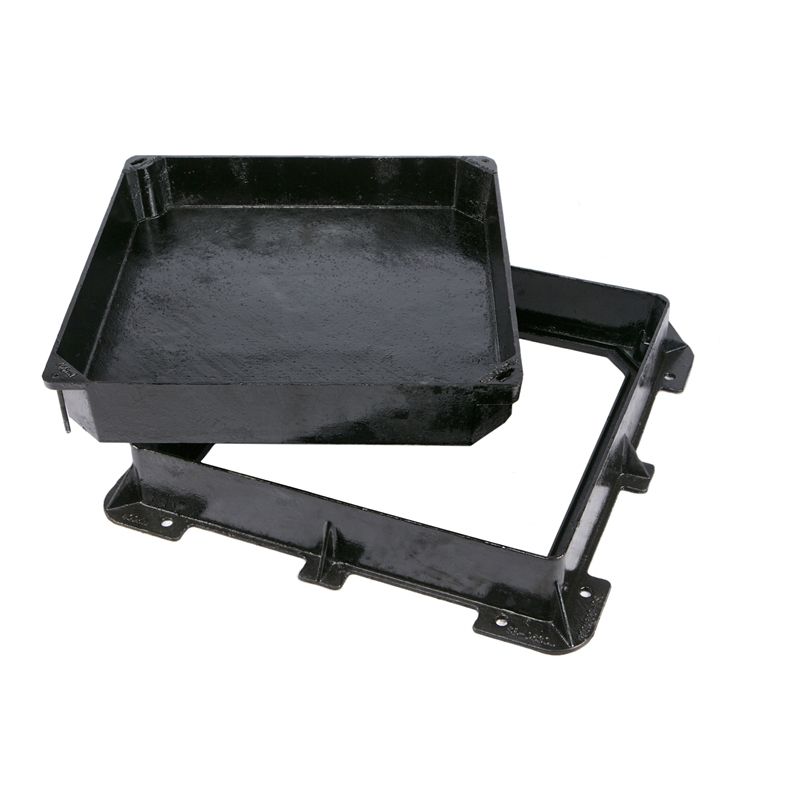

This Clark Drain Double Sealed Recessed Manhole Cover and Frame is a robust solution designed for commercial and industrial zones and perfect for estates. Made from high-quality Spheroid Graphite Iron Grade EN-GJS-500-7, it's an assurance of durability. The temporary Bitumen-based paint coating, compliant with BS 3416:1991, adds an extra layer of protection against wear and tear.

This D400-grade cover boasts a double seal mechanism and comes with integrated keyholes, ensuring enhanced security. You can rely on its sturdy build, certified by the Kitemark, to meet the rigorous standards of BS EN124:1994 (copy certificate available on request). Equipped with locking screws, it offers added peace of mind.

Features & Benefits: Clark Drain D400 Double Sealed Recessed Manhole Cover and Frame 600mm x 600mm x 100mm

  • Suitable for commercial/industrial areas and estates
  • Spheroid Graphite Iron Grade EN-GJS-500-7
  • Bitumen-based paint coating for extra protection
  • Double-seal design with locking screws and integral keyholes
  • External dimensions of 800mm length x 800mm width x 125mm height
  • Clear opening of 600mm length x 600mm width x 100mm height
  • 172mm overall depth, 125mm frame depth and 100mm internal tray depth
  • 94kg weight
  • 1.9N/mm² frame pressure bearing area
  • D400 load rating classification (40 tonnes)

This Manhole Cover and Frame measures 800mm x 800mm externally, with a clear opening of 600mm x 600mm and an overall depth of 172mm. The frame depth of 125mm and internal tray depth of 100mm ensure efficient functionality. It weighs 94kg with a remarkable frame pressure-bearing area of 1.9N/mm². The impressive load rating classification of D400 ensures its reliability and strength to withstand up to 40 tonnes.

Standards & Certification

  • Kitemark: Certified to BS EN124: 1994 (copy certification available on request)

Dimensions

Length 600mm Depth 100mm Width 600mm

Details

Material Cast Iron Product Type Manhole Cover and Frame Seal Double-Sealed Features Recessed
Weight Class D400 Profile Recessed Internal Dimensions 600mm x 600mm External Dimensions 800mm x 800mm Use Location High Traffic
Highways
Main Roads
Public Car Parks
Load-Bearing Strength 40 Tonnes

Questions & Answers

Question:

what weight is the lid when filled with a suitable product

Answer:

This will depend on the weight of the material you use to fill it as this can vary considerably.
