DS System 100mm Heated Vertical Roof Drain & Dome Strainer

Name: DS System 100mm Heated Vertical Roof Drain & Dome Strainer
Brand: DS System
SKU: DRAIN 30.12
Price: 301.80 GBP
Availability: LimitedAvailability

Code:

DRAIN 30.12

Brand:

DS System

View full product details

View questions about this product

Create a wishlist

Bharat Patel

Description

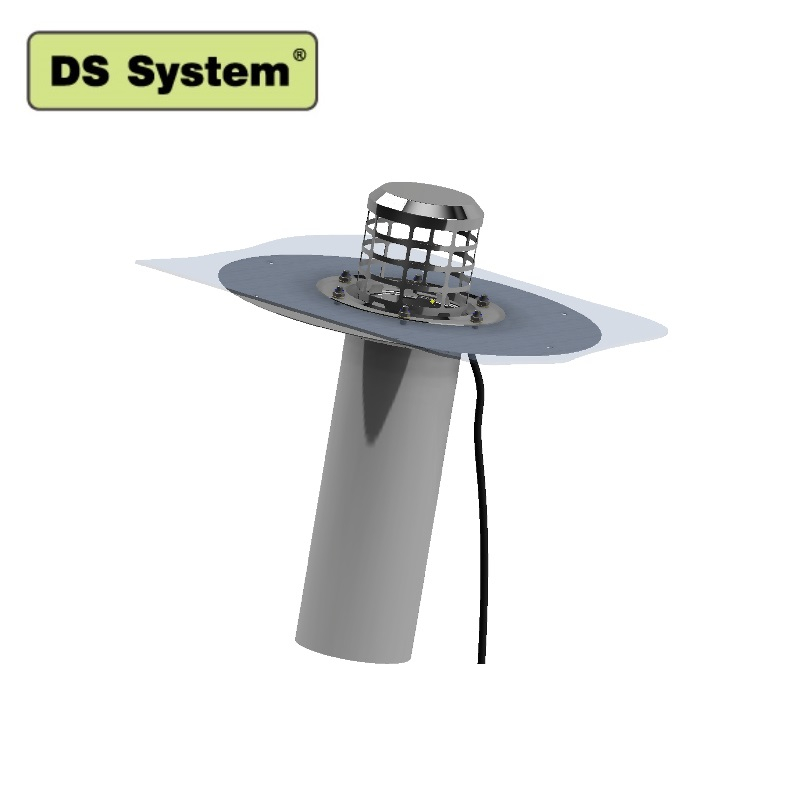

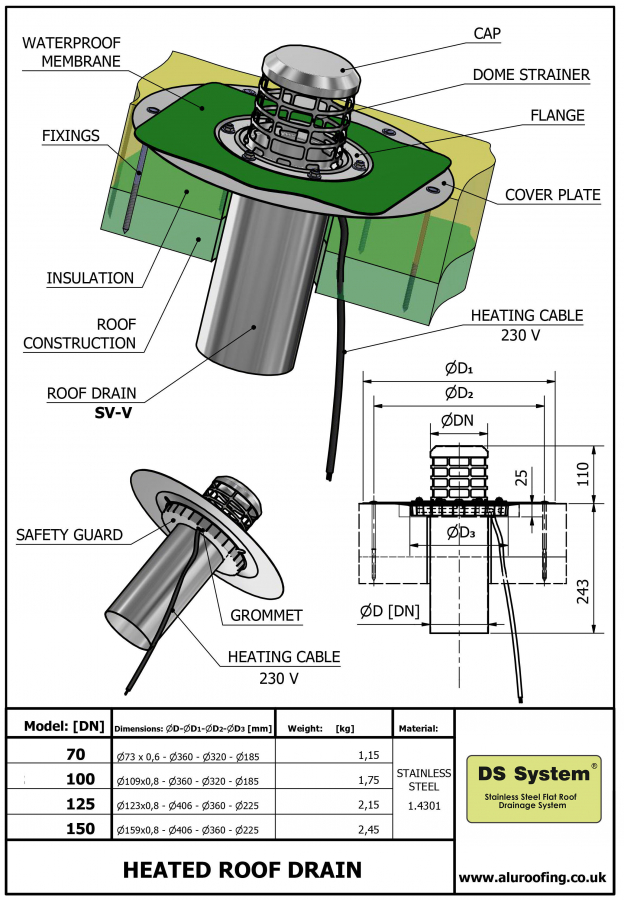

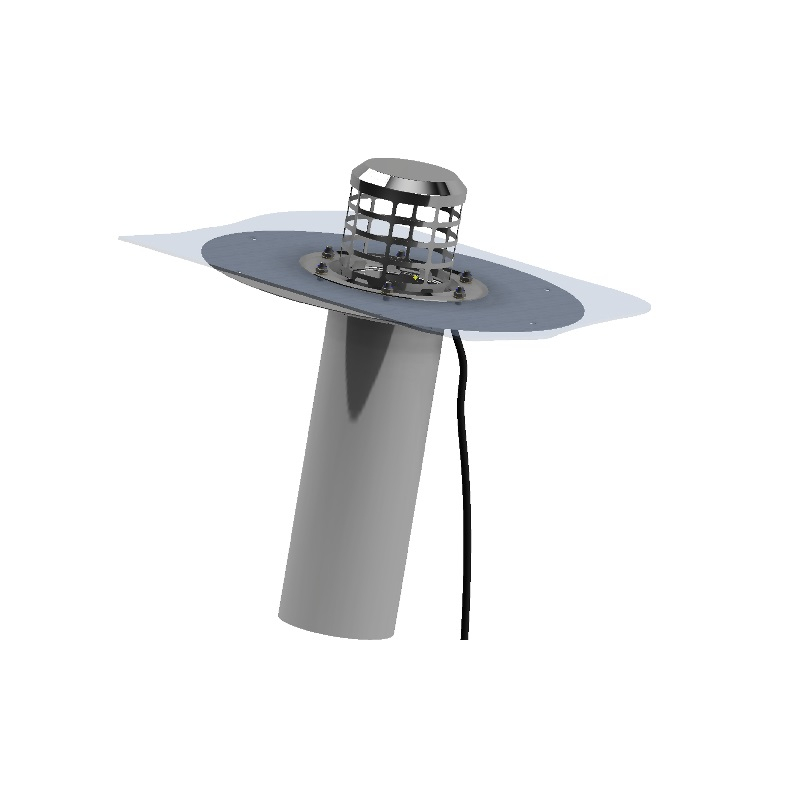

This DS System heated vertical roof drain is manufactured from 0.8mm thick stainless steel for all types of waterproofing membrane. Compatible with standard drain pipes, like type HT and type KG, this vertical roof drain has been designed with a low body to allow for installation into shallow insulation. High mechanical resistance and resistance to both frost and to UV increase the longevity and durability of this product.

The heated element of this roof drain prevents the build-up of ice during colder months to enable free-flowing and year-long efficient drainage. The heating cables for this roof drain are hidden under a bottom cover which should not be removed. Removing this can void any warranty on the product as the cover is welded to protect the cable against damage.

Attaching to the roof drainage via a flange, the greased roof drain pipe is easily connected to the drain pipes without losing any of the waterproofing qualities of the membrane as a seal comes with each roof drain as standard. For safety purposes, this DS System heated roof drain must be installed by a qualified electrician and then issued a safety certificate on commission. It takes a 230V power supply through the circuit breaker.

When installing this DS System vertical roof drain it’s recommended that ample lubricant is used to avoid tearing the seal on any drain pipe. Tearing can also be avoided by using round-head or oval-head screws. The roof drain is tightened into place by stainless steel nuts which are self-locking. When fitting into insulation you must fit 3 to 5cm below the level of hydro isolation and use a low compression adhesive foam for strength and stability of the roof drain.
