Harmer ABS Vertical Shower Drain with Pebble Cap 150mm x 150mm - Tiled Floor

Name: Harmer ABS Vertical Shower Drain with Pebble Cap 150mm x 150mm - Tiled Floor
Brand: Harmer
SKU: CVS/CP/T15
Price: 62.50 GBP
Availability: InStock

Code:

CVS/CP/T15

Brand:

Harmer

Manufactured from white ABS plastic and treated with an antimicrobial coating, this Harmer vertical shower drain with a pebble cap finish offers an attractive aesthetic while reducing bacterial growth and increasing hygiene. With a 150mm x 150mm tile frame, it is suitable for ... Read More

View full product details

View questions about this product

£62.50 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

CALLAN

Description

Made to provide high flow drainage rates from a plastic compound body, this Harmer ABS shower drain does not compromise on hygiene, durability or style. Plus, ABS plastic can be fully recycled after its useful life and is non-toxic. This shower drain meets BS EN 1253 requirements of flow, design and load testing and is resistant to impact. Thanks to its under-ribbed flange, it has been made even more secure.

Features & Benefits: Harmer ABS Vertical Shower Drain with Pebble Cap 150mm x 150mm - Tiled Floor

White ABS Pebble Cap
K3 Load Class to BS EN 1253
1.3 litres per second flow rate
Manufactured from ABS plastic with antimicrobial coating
Ideally suited for tiled sheet flooring
Suitable for timber and concrete floor applications
Resistant to impact
Excellent durability and stability

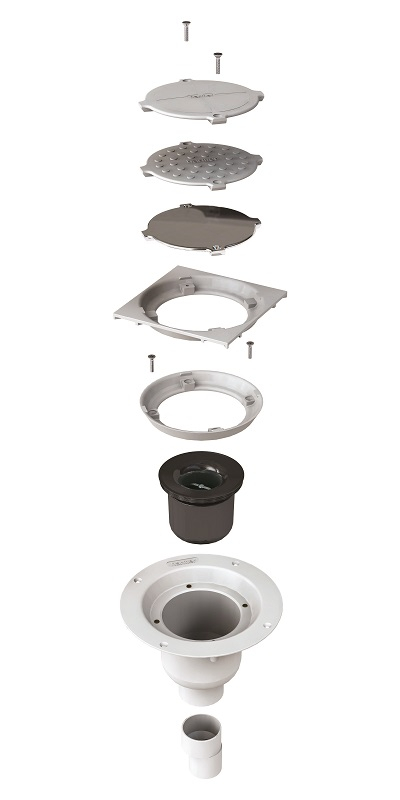

Harmer ABS Vertical Shower Drain Contents

1 x pair of screws for attaching the clamp to the drain body
Stainless steel screws for securing caps
1 x 150mm x 150mm tile frame
1 x cap
1 x 50mm foul air trap
1 x clamp for fastening the flooring, in matching colour and material to chosen cap
1 x reducer for connecting 43mm ABS pipework
1 x 2" outlet vertical drain body

Product Specification

Weight: 0.7kg
Flow Rate: 1.3l/s
Load Class: K3

Standards & Certification

Manufactured to BS EN 1253

Please note:

A connection can be made to PVC pipes using connectors; however, it is recommended that this ABS shower drain is joined directly to ABS solvent cement pipes.
Security fixings are available on request to inhibit any unauthorised access or removal of the caps and are ideally suited for public areas. When the security fixings are detached, the top access trap in vertical and horizontal ABS plastic shower drains is easy to remove and replace if needed.
