Harmer Aluminium Horizontal Drain with Mirror Clamp & Plain Cap - Tile Floor 150 x 150mm

Code:
AHS/CH/T15
Brand:
Harmer
Free UK Delivery

With a mirrored finish for the aluminium clamp, plain drain cap and 150mm x 150mm tile frame, this horizontal shower drain from Harmer is robust and strong yet lightweight thanks to its LM6 aluminium alloy manufacture and polyester powder-coated finish for increased protection... Read More

View full product details
View questions about this product
£185.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great Customer service..Delivered…"

Lee davies
Description Specification Downloads Q&A

Description

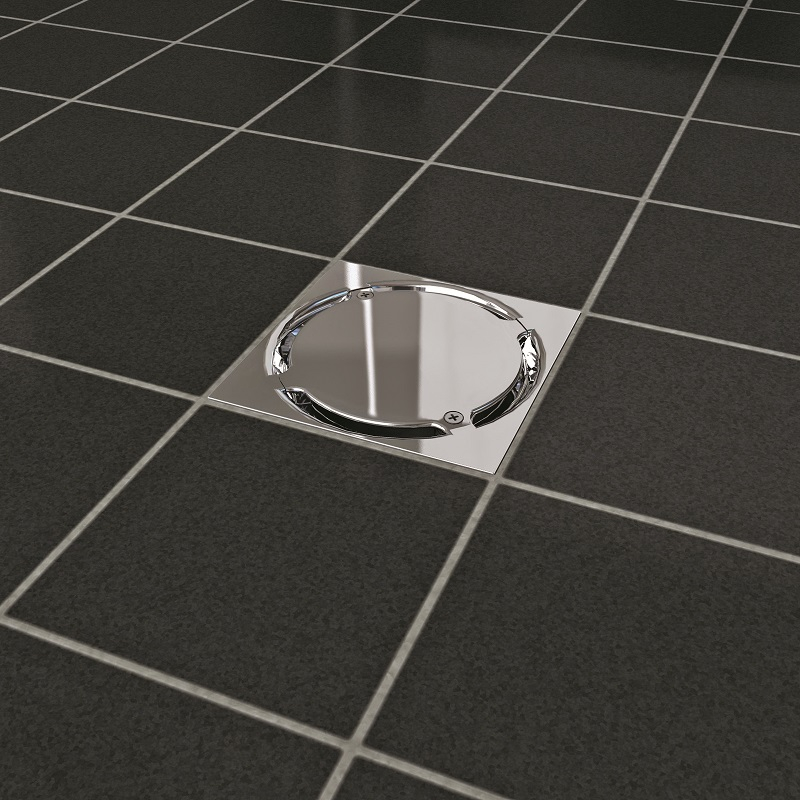

With a mirrored finish for the aluminium clamp, plain drain cap and 150mm x 150mm tile frame, this horizontal shower drain from Harmer is robust and strong yet lightweight thanks to its LM6 aluminium alloy manufacture and polyester powder-coated finish for increased protection.

Made from completely recycled aluminium, this Harmer shower drain's body can also be recycled once again at the end of its life cycle. The LM6 aluminium alloy ensures that it can endure marine and general atmospheric environments due to its high corrosion resistance. With an integrated fall in the sump for the elimination of silt collection, it is compatible with 56mm PVC, cast iron and HDPE pipes. The drain cap is straightforward to remove to be replaced, cleaned or provide access to the removable 50mm foul air trap below.

Features & Benefits: Harmer Aluminium Horizontal Drain with Mirror Clamp & Plain Cap - Tile Floor 150 x 150mm

  • Plain mirror finish cap
  • Suitable for use in timber and concrete floors
  • K3 Load Class to BS EN 1253
  • Compatible with 56mm PVC, cast iron and HDPE pipes
  • 0.8 litres per second flow rate
  • High corrosion resistance
  • 150mm x 150mm tile frame
  • Strong and robust yet lightweight
  • LM6 aluminium alloy manufactured with protective polyester powder-coated finish

Offering a flow rate of up to 0.8 litres per second, this Harmer aluminium shower drain is ideally suited for use in timber and concrete floors and perfect for tiled flooring applications. Tolerating up to 300kg of vertical loading, it complies with the British and European standard BS EN 1253 requirements for flow performance, design and loading whilst delivering an efficient yet attractive solution for your shower.

Harmer Aluminium Horizontal Drain Contents

  • 1 x plain mirror finish cap
  • 1 x aluminium clamp
  • 1 x 150mm x 150mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of BS EN 1253 standard for flow performance, design and loading

Please note:

  • There is an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Timber

Questions & Answers

Question:

Does this come with the relevant screws?

Answer:

I can confirm that the Harmer Alu Horizontal Drain Mirror Clamp & Plain Cap does come with the relevant stainless steel screws.
