Harmer Aluminium Horizontal Drain with Nickel Clamp & Ring Grate - Tile Floor 150mm x 150mm

Code:
AHS/RN/T15
Brand:
Harmer

From Harmer, this aluminium horizontal shower drain features a nickel bronze clamp, concentric ring drain grate cap and tile frame measuring 150mm x 150mm. The cap is easily removable for cleaning, replacement or for access to the removable 50mm foul air trap below. LM6 alumin... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great Coping Stones"

mr peter lumkin
Description Specification Downloads Q&A

Description

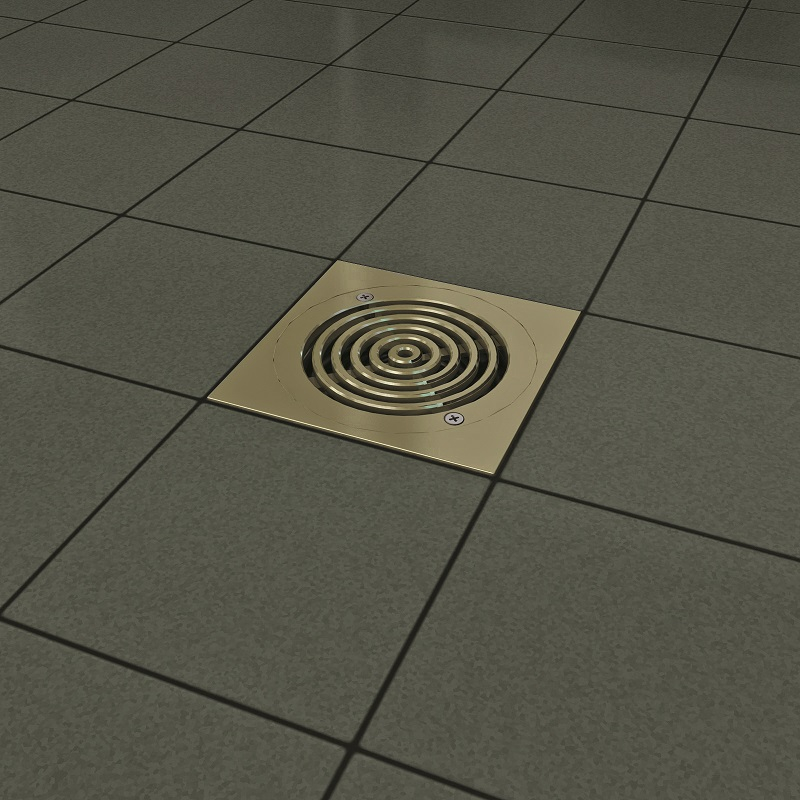

From Harmer, this aluminium horizontal shower drain features a nickel bronze clamp, concentric ring drain grate cap and tile frame measuring 150mm x 150mm. The cap is easily removable for cleaning, replacement or for access to the removable 50mm foul air trap below.

LM6 aluminium alloy material ensures this product is lightweight, durable and strong, with a polyester powder for increased protection. Perfect for timber and concrete floor applications where tiled and sheet flooring is used. Offering a flow rate of up to 0.8 litres per second. As a horizontal drain, this Harmer shower drain body is compatible with 56mm cast iron, HDPE and PVC pipes. Complete with an integral fall in the sump to eliminate silt collection.

Features & Benefits: Harmer Aluminium Horizontal Drain with Nickel Clamp & Ring Grate - Tile Floor 150mm x 150mm

  • Suitable for timber and concrete floors where tiled and sheet flooring are used
  • Ring grate cap style
  • 0.8 litres per second flow rate
  • K3 to BS EN 1253 load class
  • High corrosion resistance
  • Manufactured with 100% recyclable aluminium alloy
  • Complies with British and European standard BS EN 1253 for design, flow performance and loading
  • Easy to clean and maintain

Harmer aluminium shower drains are designed specifically to meet British and European standard BS EN 1253 for design, flow performance and loading. All without disturbing the attractive and efficient shower drain. Once it has reached the end of its lifecycle, the aluminium product can also be 100% recycled. The LM6 aluminium alloy used in the drain body's creation is done so in marine conditions and general atmospheric circumstances. With displayed high resistance to corrosion for a more durable and efficient system.

When it comes to vertical loading, the Harmer shower drains can withstand up to 300kg. There is an option available to order secure fixings for drain caps in areas where the cap may otherwise be tampered with. Contact for more information if required.

Harmer Aluminium Horizontal Drain Contents

  • 1 x concentric ring drain grate cap
  • 1 x nickel bronze clamp
  • 1 x 150mm x 150mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Design, flow and loading testing: Meets BS EN 1253 requirements

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Sheet Flooring
Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
