Harmer Aluminium Horizontal Drain with Nickel Clamp & Star Grate - Tile Floor 150mm x 150mm

Code:
AHS/SN/T15
Brand:
Harmer

From Harmer's visually appealing and recyclable aluminium range of shower drains, this horizontal drain includes a 150mm x 150mm tile frame and nickel bronze star drain grate cap that can be removed without hassle. This is great for replacements, cleaning, or to get to the 50m... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 10-15 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Dec 30th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Delivery on time and polite"

Gregory - Essex region
Description Specification Downloads Q&A

Description

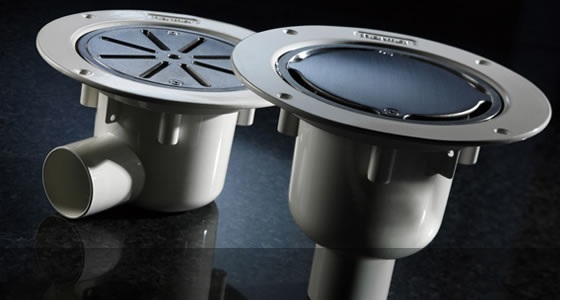

From Harmer's visually appealing and recyclable aluminium range of shower drains, this horizontal drain includes a 150mm x 150mm tile frame and nickel bronze star drain grate cap that can be removed without hassle. This is great for replacements, cleaning, or to get to the 50mm foul air trap under it.

The LM6 aluminium alloy structure is lightweight and durable, as well as coated with a protective polyester powder. It successfully resists corrosion in marine and general atmospheric conditions. Ideal for installation in timber and concrete floors, the drains from Harmer feature caps and grates that come in numerous materials. These include stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Horizontal Drain with Nickel Clamp & Star Grate - Tile Floor 150mm x 150mm

  • Star grate cap style
  • Recyclable and visually appealing
  • 0.8 litres per second flow rate
  • Made from lightweight LM6 aluminium alloy
  • Load Class of K3 to BS EN 1253
  • Protective polyester powder coating
  • Resists corrosion in marine and general atmospheric conditions
  • Tolerates up to 300kg of vertical loading

Horizontal shower drains are designed for use with 56mm pipes, such as cast iron, HDPE and PVC. They also feature an integral fall in the sump to reduce the collection of silt. Flow rates are up to 0.8 litres a second.

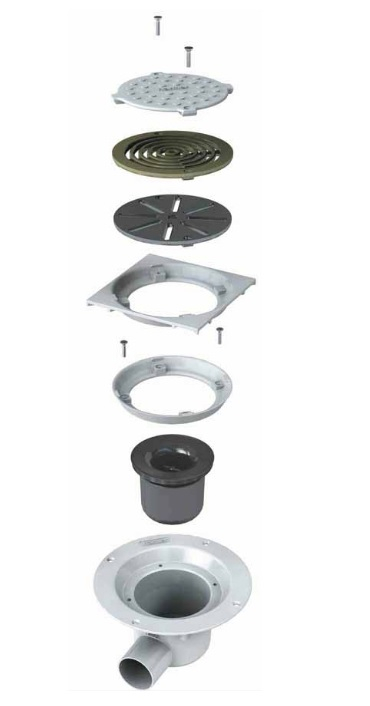

Harmer Aluminium Horizontal Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x nickel bronze clamp
  • 1 x 150mm x 150mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber

Questions & Answers

Question:

What is the dimension from top of grating to centre line of outlet?

Answer:

The dimension from the top of the Drain to C/L is approx 87mm.

The grate is not fixed to the body, we do recommend that the grate is no more than 20mm to 25mm above the body.
