Harmer Aluminium Horizontal Drain with Nickel Clamp & Star Grate - Tile Floor 200mm x 200mm

Code:
AHS/SN/T20
Brand:
Harmer

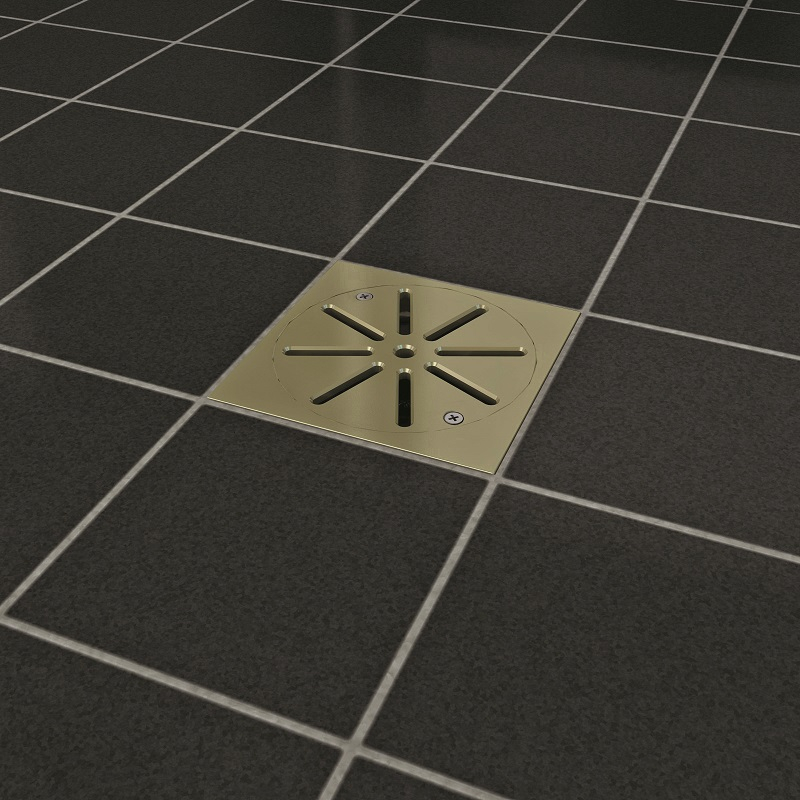

This lightweight and durable all-in-one Harmer horizontal shower drain unit combines a star pattern grate cap, nickel bronze clamp and a 200mm x 200mm tile frame. The unit is easy to remove and replace for inspection and clearing thanks to the detachable drain cap, cutting dow... Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Nov 26th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Use regularly always prompt delive…"

Stephen Moss
Description Specification Downloads Q&A

Description

This lightweight and durable all-in-one Harmer horizontal shower drain unit combines a star pattern grate cap, nickel bronze clamp and a 200mm x 200mm tile frame. The unit is easy to remove and replace for inspection and clearing thanks to the detachable drain cap, cutting down on maintenance time and hassle. These shower drain units are fully compatible with 56mm cast iron, HDPE and PVC pipes. The unit is also supplied with a removable 50mm foul air trap and integral fall in the sump to eliminate common silt build-up.

Light, tough, and highly durable, these shower units utilise marine-quality aluminium alloys and durable polyester powder coatings to produce a dependable system. This shower drain model boasts impressive flow rates of up to 0.8 litres a second and is ideal for timber and concrete floors. These drains are topped off by a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Horizontal Drain with Nickel Clamp & Star Grate - Tile Floor 200mm x 200mm

  • Comes supplied with a range of fittings to install
  • Excellent flow rates across the range
  • Compatible with 56mm cast iron, HDPE and PVC pipes
  • Integral fall-in sump combats silt build-up
  • Easy to install, clean, and inspect
  • Lightweight and durable aluminium construction with polyester coating

The entirety of Harmer aluminium shower drains have been specifically designed to meet the requirements of British and European standard BS EN 1253 for design, flow rates and loading whilst still providing a sleek look. Harmer shower drain bodies are manufactured from LM6 aluminium alloy, a perfect pairing for challenging marine applications owing to excellent resistance to corrosion.

Harmer Aluminium Horizontal Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x nickel bronze clamp
  • 1 x 200mm x 200mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic
