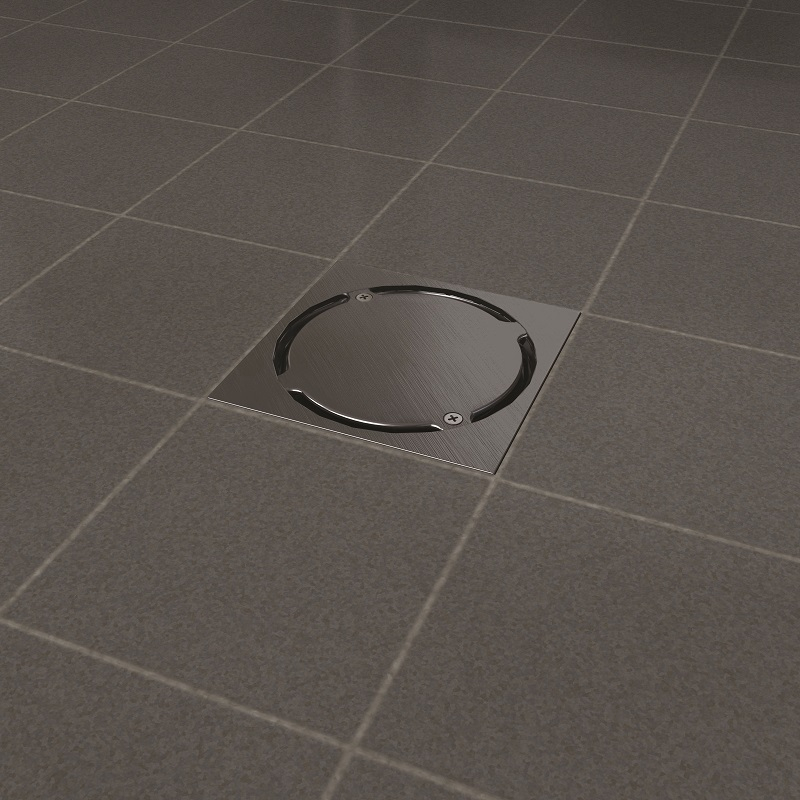

Harmer Aluminium Horizontal Drain Stainless Steel Clamp & Plain Cap 200mm x 200mm - Tile Floor

Code:
AHS/CS/T20
Brand:
Harmer

Including a stainless steel clamp with a plain drain cap and a 200mm x 200mm tile frame, this Horizontal Drain is from the Harmer aluminium shower drain range. It is crafted from lightweight and durable LM6 aluminium alloy with a protective polyester powder coating, in turn re... Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Had a few problems with my order"

Philip Coles
Description Specification Downloads Q&A

Description

Including a stainless steel clamp with a plain drain cap and a 200mm x 200mm tile frame, this Horizontal Drain is from the Harmer aluminium shower drain range. It is crafted from lightweight and durable LM6 aluminium alloy with a protective polyester powder coating, in turn resisting corrosion under marine and general atmospheric conditions.

The drain cap itself is removable for cleaning, replacement, and access to the supplied 50mm foul air trap below. Suited to use with 56mm cast iron, HDPE and PVC pipes, horizontal shower drains have integral fall in the sump to reduce the presence of silt.

Features & Benefits: Harmer Aluminium Horizontal Drain Stainless Steel Clamp & Plain Cap 200mm x 200mm - Tile Floor

  • Harmer shower drains tolerate up to 300kg of vertical loading
  • Plain stainless steel cap and clamp
  • 0.8 litres per second flow rate
  • Load Class K3 (to BS EN 125)
  • 200mm x 200mm tile frame
  • Corrosion resistant LM6 aluminium alloy structure
  • Recyclable after use
  • Polyester powder coating for resilience

Harmer aluminium shower drains have flow rates of up to 0.8 litres a second which, alongside designs and loading class, meet British and European standards (BS EN 1253). They are visually pleasing and completely recyclable, as well as compatible with timber and concrete floors. Drains feature caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Harmer Aluminium Horizontal Drain Contents

  • 1 x plain drain cap
  • 1 x stainless steel clamp
  • 1 x 200mm x 200mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option to order security fixings for drain caps in areas where the cap could be interfered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
