Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 150mm x 150mm

Code:
AHS/RS/T15
Brand:
Harmer

This Harmer aluminium horizontal shower drain unit features a stainless steel clamp, ring grate drain cap and a 150mm x 150mm tile frame. The unit is easily cleaned or replaced for inspection or clearing thanks to the detachable drain cap, cutting down on maintenance. These sh... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Dec 5th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Very helpful staff"

Neil Randall
Description Specification Downloads Q&A

Description

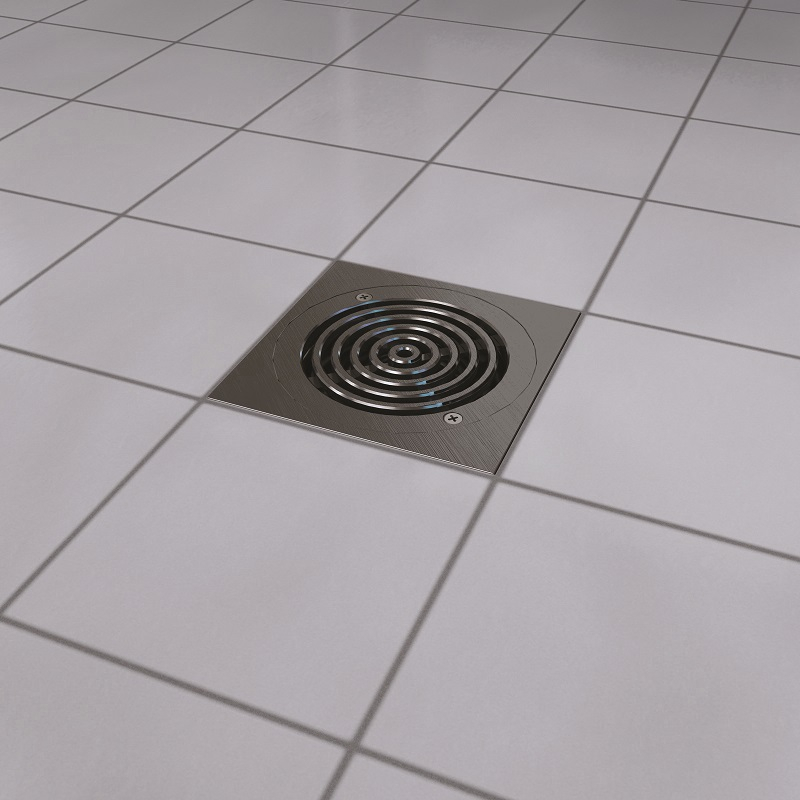

This Harmer aluminium horizontal shower drain unit features a stainless steel clamp, ring grate drain cap and a 150mm x 150mm tile frame. The unit is easily cleaned or replaced for inspection or clearing thanks to the detachable drain cap, cutting down on maintenance. These shower drain bodies are fully compatible with 56mm cast iron, HDPE and PVC pipes and have an integral fall in the sump to eliminate troublesome silt build-up. The unit is also supplied with a removable 50mm foul air trap.

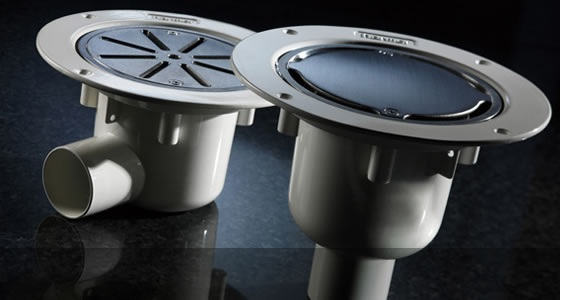

Light, strong, and durable, these units take advantage of advanced aluminium alloy manufacture and polyester powder coating processes to produce a reliable platform. Harmer aluminium shower drains can boast flow rates of up to 0.8 litres a second and are ideal for timber and concrete floors. These drains are topped off by a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 150mm x 150mm

  • Lightweight and durable aluminium construction with polyester coating
  • Excellent flow rates across the range
  • Comes supplied with a range of fittings to install
  • Compatible with 56mm cast iron, HDPE and PVC pipes
  • Integral fall-in sump combats silt build-up
  • Easy to install, clean, and inspect

Harmer aluminium shower drains have been designed specifically to meet the requirements of British and European standard BS EN 1253 for design, flow rates and loading whilst still providing a sleek look. Harmer shower drain bodies are manufactured from LM6 aluminium alloy, a perfect pairing for challenging marine applications owing to excellent resistance to corrosion.

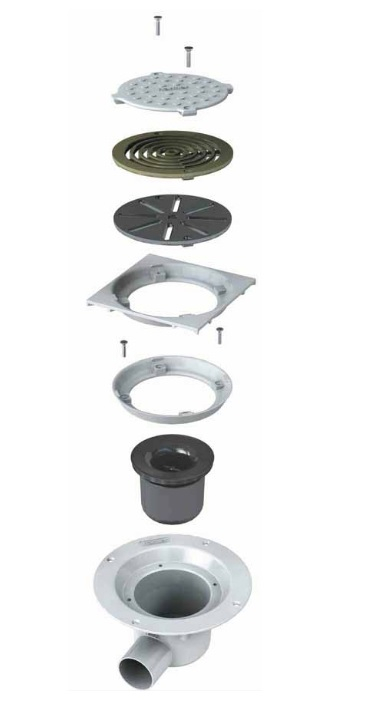

Harmer Aluminium Horizontal Drain Contents

  • 1 x ring grate drain cap
  • 1 x stainless steel clamp
  • 1 x 150mm x 150mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option to order security fixings for drain caps in areas where the cap could be interfered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Floor Type Sheet Flooring
Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
