Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 200mm x 200mm

Code:
AHS/RS/T20
Brand:
Harmer

Completed with a stainless steel clamp, a ring drain grate cap and a 200mm x 200mm tile frame, this horizontal shower drain from Harmer is manufactured from LM6 aluminium alloy with a polyester powder coating for enhanced protection, withstanding up to 300kg of vertical loadin... Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Excellent advice and service"

stuart smith
Description Specification Downloads Q&A

Description

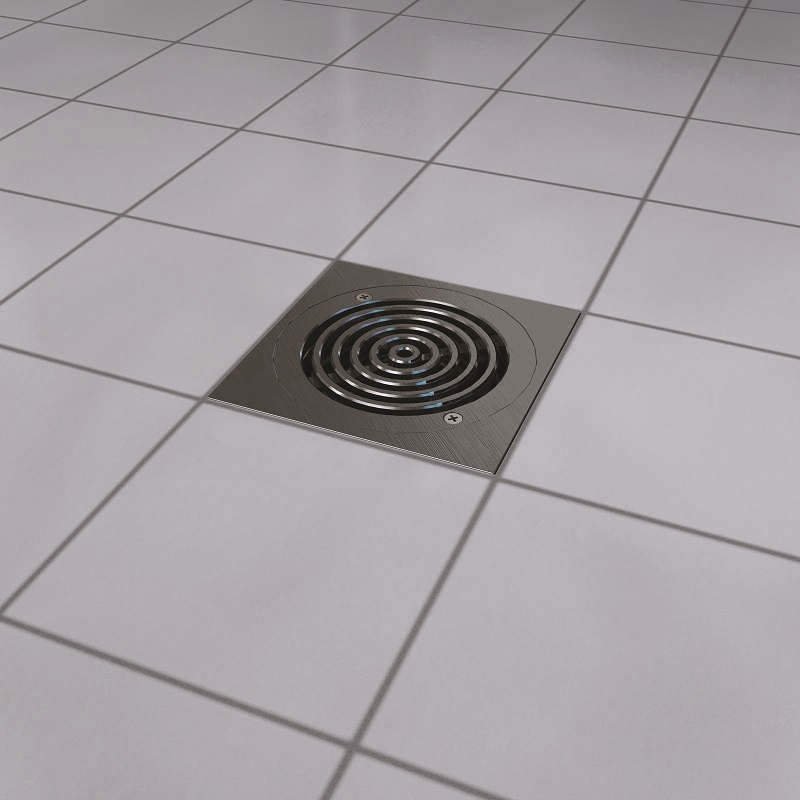

Completed with a stainless steel clamp, a ring drain grate cap and a 200mm x 200mm tile frame, this horizontal shower drain from Harmer is manufactured from LM6 aluminium alloy with a polyester powder coating for enhanced protection, withstanding up to 300kg of vertical loading.

Strong and durable yet lightweight, this horizontal drain delivers a flow rate of up to 0.8 litres per second. Ideal for concrete and timber floor applications with tiled flooring, it has an easy-to-remove drain cap which can be cleaned, replaced or provide access to the removable 50mm foul air trap below. Compatible with 56mm PVC, HDPE and cast iron pipes, the shower drain body features an integral sump to eliminate silt collection.

Features & Benefits: Harmer Aluminium Horizontal Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 200mm x 200mm

  • Infinitely recyclable
  • Manufactured from LM6 aluminium alloy with protective polyester powder coating
  • Ideal for tiled flooring
  • Suitable for timber and concrete floors
  • 0.8 litres per second flow rate
  • K3 Load Class to BS EN 1253
  • Stainless steel ring grate
  • Lightweight yet strong and durable
  • Highly corrosion resistant

Specially made to meet the requirements of British and European standard BS EN 1253 for loading, flow performance and design, this Harmer aluminium shower drain provides an effective yet visually pleasing solution. Constructed from 100% recycled aluminium, it can be recycled once again at the end of its lifespan. The LM6 aluminium alloy utilised to create the drain body has a high resistance to corrosion, enduring general atmospheric environments and marine conditions.

Harmer Aluminium Horizontal Drain Contents

  • 1 x ring grate drain cap
  • 1 x stainless steel clamp
  • 1 x 200mm x 200mm tile frame
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Clamp screws
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Floors
Timber
