Harmer Aluminium Horizontal Drain with White Clamp & Pebble Cap - Tile Floor 150 x 150mm

Code:
AHS/WH/T15
Brand:
Harmer

With a 0.8 litres per second flow rate, this aluminium horizontal shower drain from Harmer is provided with a white PPC aluminium clamp with a pebble drain cap and a 150mm x 150mm tile frame. The structure is comprised of polyester powder-coated LM6 aluminium alloy, which has ... Read More

View full product details
View questions about this product
£165.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great product great price prompt…"

Alwyn Owens
Description Specification Downloads Q&A

Description

With a 0.8 litres per second flow rate, this aluminium horizontal shower drain from Harmer is provided with a white PPC aluminium clamp with a pebble drain cap and a 150mm x 150mm tile frame. The structure is comprised of polyester powder-coated LM6 aluminium alloy, which has excellent corrosion resistance. An integral fall in the sump limits the gathering of silt.

Easy to remove, the drain cap can be cleaned or replaced without hindrance. Removing it also provides access to the 50mm trap.

Features & Benefits: Harmer Aluminium Horizontal Drain with White Clamp & Pebble Cap - Tile Floor 150 x 150mm

  • LM6 aluminium alloy structure
  • Resistant to corrosion across marine and general atmospheric environments
  • Pebble cap included
  • Tolerant of up to 300kg vertical loading
  • 0.8 litres per second flow rate
  • Product is lightweight and durable
  • K3 Load Class to BS EN 1253
  • Recyclable material
  • Stylish and efficient

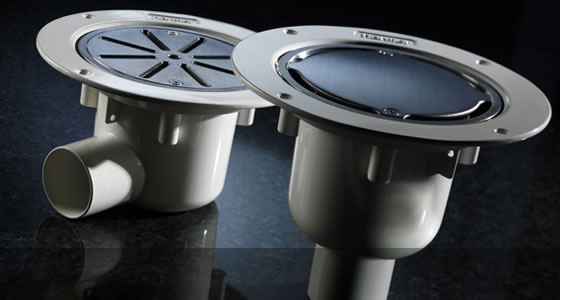

Horizontal shower drains from Harmer are compatible with 56mm pipes that are made from cast iron, HDPE and PVC. They are suited to concrete and timber floors and are provided with caps and grates from a vast selection. The range of materials for tiled and sheet flooring includes nickel bronze, stainless steel, and aluminium.

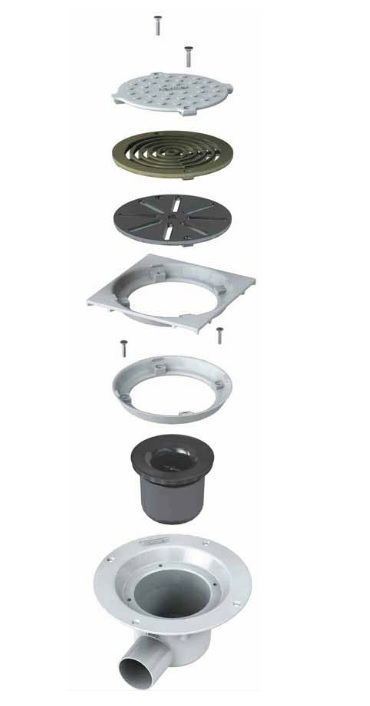

Harmer Aluminium Horizontal Drain Contents

  • 1 x pebble drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x white PPC aluminium clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Floors
Timber
