Home Building Drainage Floor Gullies Domestic Floor Gullies Harmer Aluminium Vertical Drain with Mirror Clamp & Plain Cap - Tile Floor 150mm x 150mm

Harmer Aluminium Vertical Drain with Mirror Clamp & Plain Cap - Tile Floor 150mm x 150mm

Code:
AVS/CH/T15
Brand:
Harmer

Designed for push-fit connection with 110mm ring seal pipe sockets and compatibility with 56mm cast iron, HDPE and PVC pipes, this vertical shower drain from Harmer is equipped with the necessary components. It has a mirror finish clamp with a plain mirrored drain cap, as well... Read More

View full product details
View questions about this product
£185.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Quick delivery of a good product"

Richard Philipps
Description Specification Downloads Q&A

Description

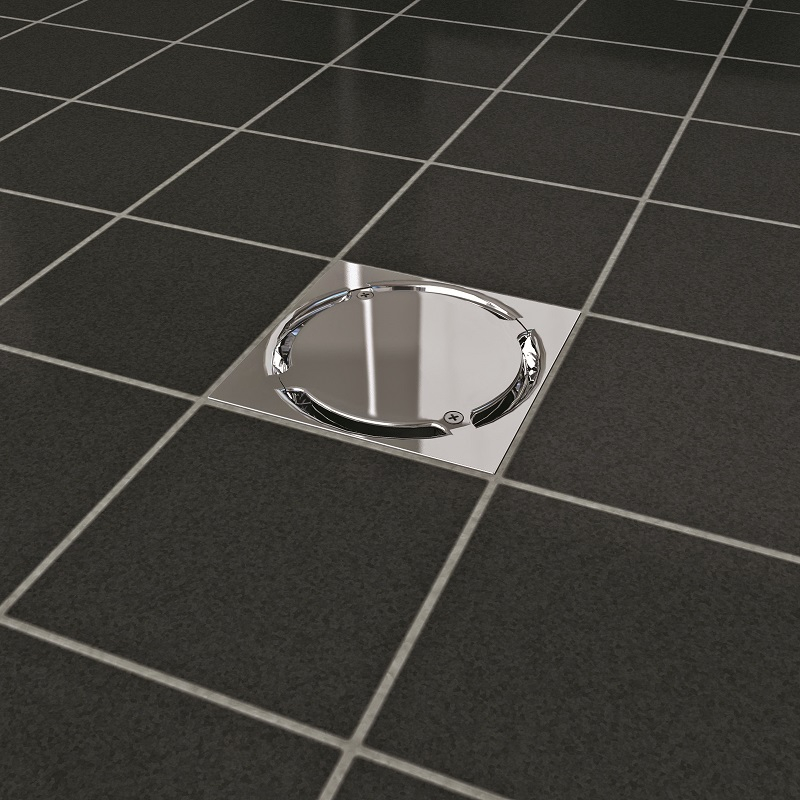

Designed for push-fit connection with 110mm ring seal pipe sockets and compatibility with 56mm cast iron, HDPE and PVC pipes, this vertical shower drain from Harmer is equipped with the necessary components. It has a mirror finish clamp with a plain mirrored drain cap, as well as a 150mm x 150mm tile frame. Ideal for applications in concrete and timber floors, Harmer's aluminium drains are also suited to suspended floors where shallow invert pipes are required.

You can remove the cap to give it a clean or replace it if needed, which also lets you access the beneath 50mm trap. Harmer vertical shower drains offer multiple caps and grates finishes. The choices consist of stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Vertical Drain with Mirror Clamp & Plain Cap - Tile Floor 150mm x 150mm

  • Features a flow rate of 1.3 litres per second
  • LM6 aluminium alloy for strength and durability
  • You can recycle this product after use
  • Load Class of K3 to BS EN 1253
  • Easy to move and replace plain mirror finish drain cap
  • Tolerates 300kg vertical loading
  • Required components supplied

Made from durable and lightweight LM6 aluminium alloy, the vertical drain is protected by the polyester powder coating. Corrosion resistance is commendable with Harmer vertical aluminium drains, being that the material can be used in marine and general atmospheric conditions.

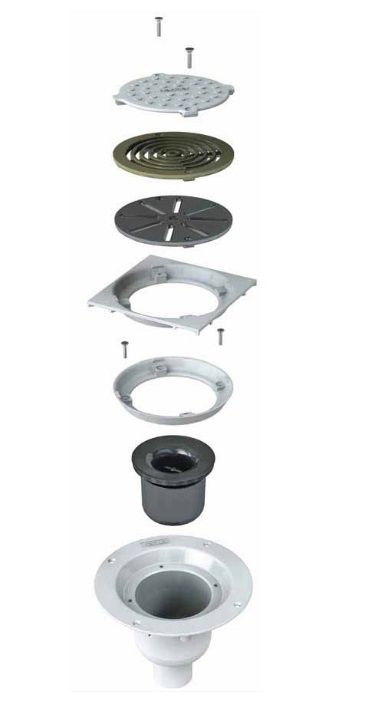

Harmer Aluminium Vertical Drain Contents

  • 1 x plain mirror finish cap
  • 1 x 150mm x 150mm tile frame
  • 1 x mirror finish clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of BS EN 1253 standard for flow performance, design and loading

Please note:

  • Security fixings option available for drain caps in areas where the cap may otherwise be tampered with. Contact our sales team for information.

Details

Material Aluminium Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Floors
Timber
