Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate 150mm x 150mm - Tile Floor

Code:
AVS/SN/T15
Brand:
Harmer

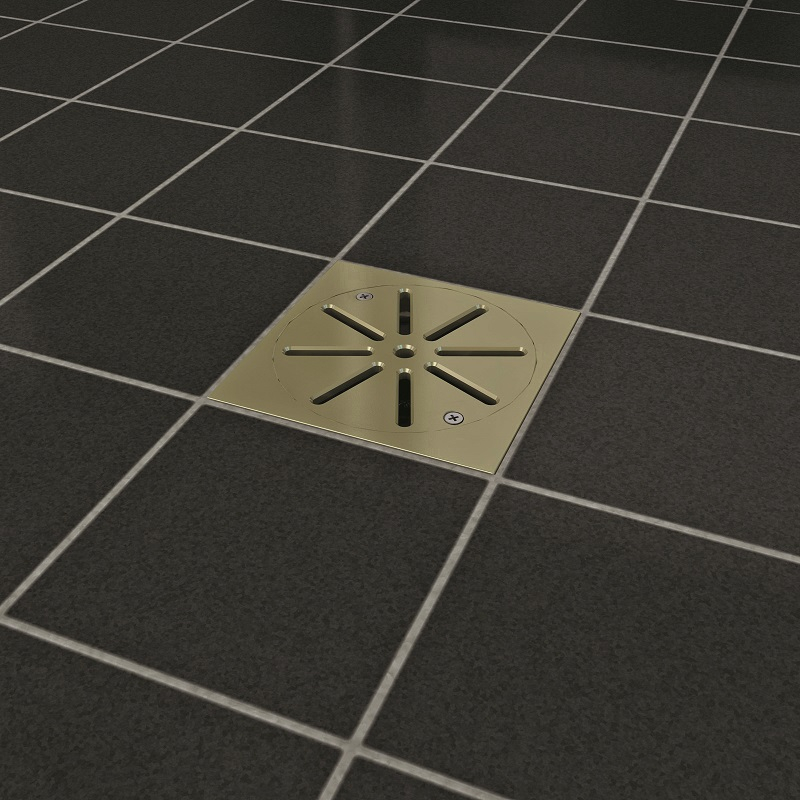

Displaying a nickel bronze clamp with a 150mm x 150mm tile frame and star drain grate, this Harmer vertical shower drain is lightweight yet strong and robust thanks to its LM6 aluminium alloy construction and polyester powder-coated finish for enhanced protection. Fabricated fr... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"I did have a small problem"

DOUG YARDLEY
Description Specification Downloads Q&A

Description

Displaying a nickel bronze clamp with a 150mm x 150mm tile frame and star drain grate, this Harmer vertical shower drain is lightweight yet strong and robust thanks to its LM6 aluminium alloy construction and polyester powder-coated finish for enhanced protection.

Fabricated from 100% recycled aluminium, this Harmer shower drain's body can even be recycled once again at the end of its lifespan. The LM6 aluminium alloy ensures that it can tolerate general atmospheric and marine conditions, demonstrating high resistance to corrosion. Easily push fitting into 110mm ring seal pipe sockets, it is also compatible with 56mm HDPE, cast iron and PVC pipes. The drain cap is simple to remove for replacement, cleaning or giving access to the removable 50mm foul air trap beneath.

Features & Benefits: Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate 150mm x 150mm - Tile Floor

  • Suitable for use in concrete and timber floors
  • Compatible with 110mm ring seal pipe sockets as well as 56mm HDPE, cast iron and PVC pipes
  • High resistance to corrosion
  • Lightweight yet robust and strong
  • LM6 aluminium alloy construction with protective polyester powder-coated finish
  • 150mm x 150mm tile frame
  • Nickel bronze star drain grate
  • 0.8 litres per second flow rate
  • K3 Load Class to BS EN 1253

Providing a flow rate of up to 0.8 litres per second, this Harmer aluminium shower drain is suited for use in concrete and timber floors, including suspended floors where shallow invert pipes are necessary, and is ideal for tiled flooring applications. Enduring up to 300kg of vertical loading, it meets the requirements of British and European standard BS EN 1253 for loading, design and flow performance whilst offering an efficient yet visually pleasing solution for your shower.

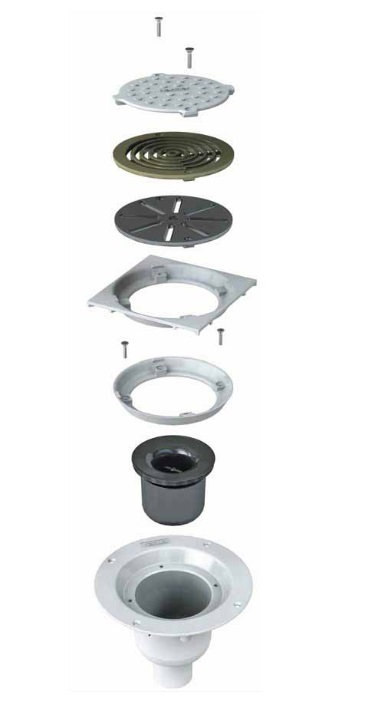

Harmer Aluminium Vertical Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • There is an option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Style Concrete Type Domestic Application Concrete
Floors
Timber
