Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate 200mm x 200mm - Tile Floor

Code:
AVS/SN/T20
Brand:
Harmer

From Harmer, this aluminium vertical shower drain is provided with a nickel bronze clamp with a star drain grate, as well as a 200mm x 200mm tile frame. You can remove the drain cap with ease when required, in turn making for practical maintenance, replacement and access to th... Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Dec 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great quality product from Drainag…"

Tiberiu Comaneci
Description Specification Downloads Q&A

Description

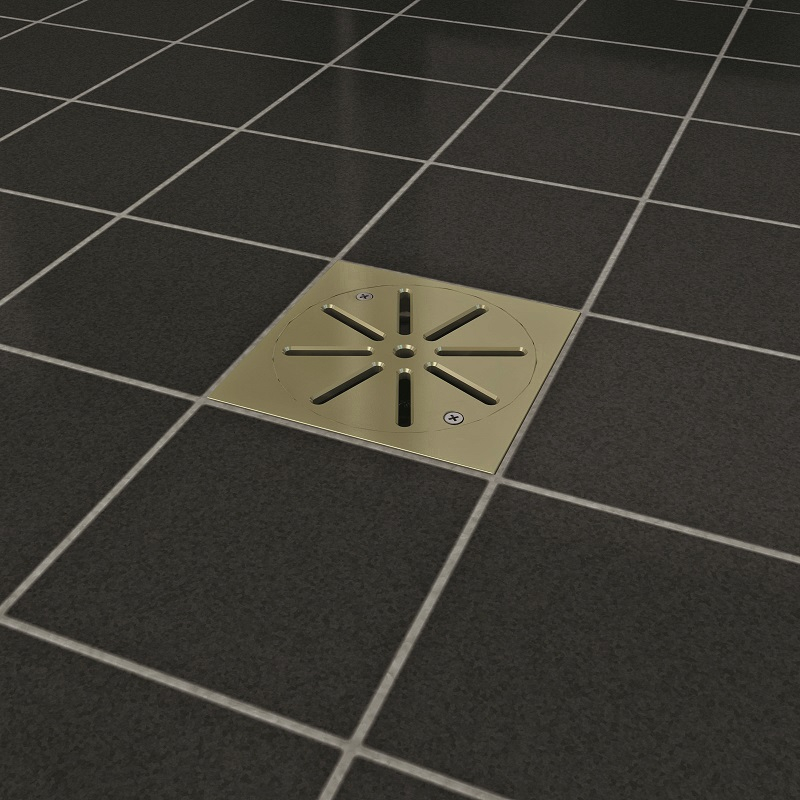

From Harmer, this aluminium vertical shower drain is provided with a nickel bronze clamp with a star drain grate, as well as a 200mm x 200mm tile frame. You can remove the drain cap with ease when required, in turn making for practical maintenance, replacement and access to the 50mm trap below.

The LM6 aluminium alloy structure is light in weight and high in durability, as well as coated with polyester powder to enhance protection. Perfect for both marine and general atmospheric conditions, it withstands corrosion and offers a flow rate of 0.8 litres per second.

Features & Benefits: Harmer Aluminium Vertical Drain Nickel Clamp & Star Grate 200mm x 200mm - Tile Floor

  • Recyclable and aesthetically pleasing
  • Star drain grate cap style
  • 0.8 litres per second flow rate
  • Corrosion resistant
  • LM6 aluminium alloy structure
  • Coated with polyester powder to enhance protection
  • Tolerant of up to 300kg of vertical loading
  • Lightweight and durable

Vertical shower drains from Harmer can push-fit into 110mm ring seal pipe sockets and are suited to 56mm cast iron, HDPE and PVC pipes. These shower drains are ideal in timber and concrete floors, as well as suspended floors when there is a need for shallow invert pipes. The selection of caps and grates is pleasing to the eye with stainless steel, nickel bronze and aluminium options for tiled and sheet flooring.

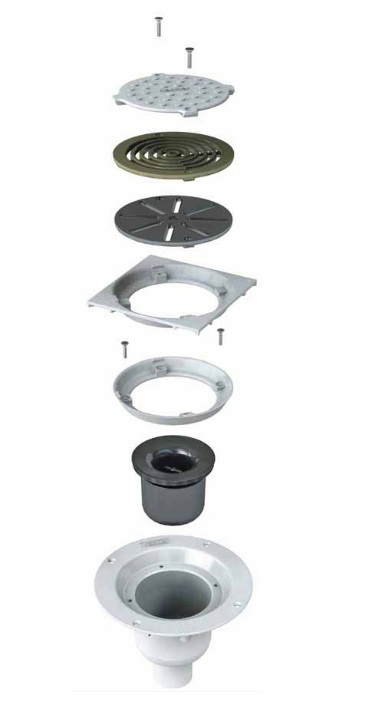

Harmer Aluminium Vertical Drain Contents

  • 1 x star pattern grate drain cap
  • 1 x 200mm x 200mm tile frame
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meet the requirements of British and European standard BS EN 1253 for design, flow performance and loading
  • Load Class of K3 to BS EN 1253

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may otherwise be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Nickel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
