Harmer Aluminium Vertical Drain Stainless Steel Clamp & Plain Cap 150mm x 150mm - Tile Floor

Code:
AVS/CS/T15
Brand:
Harmer

Durable and lightweight, this LM6 aluminium alloy manufactured vertical shower drain from Harmer is resistant to corrosion and supplied with enhanced protection due to the polyester powder coating. It includes a stainless steel clamp with a plain drain cap, a removable 50mm fo... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Dec 24th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Flexible pipe work connections "

Paul Birch
Description Specification Downloads Q&A

Description

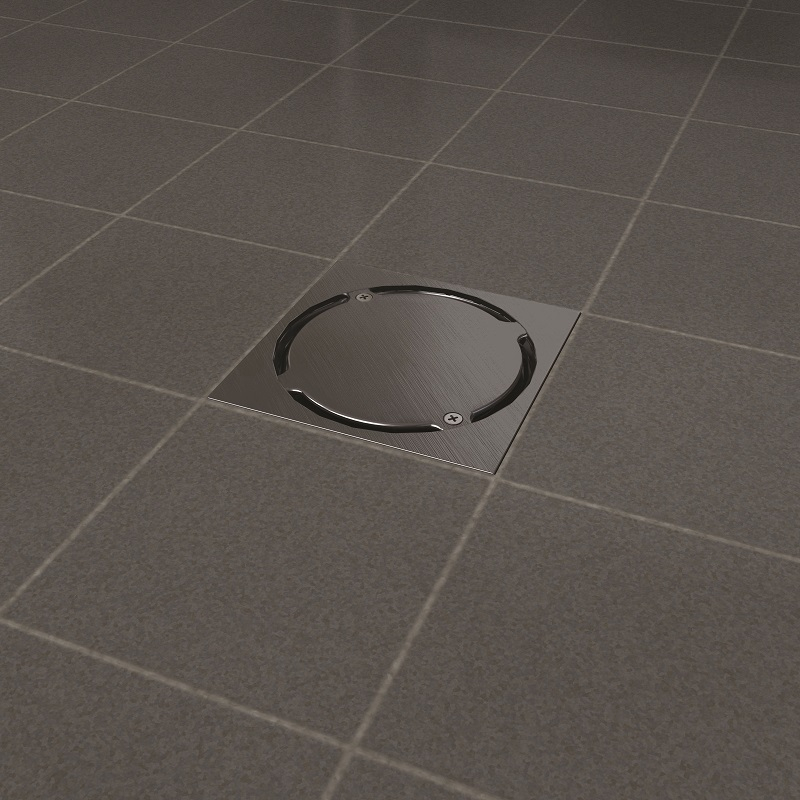

Durable and lightweight, this LM6 aluminium alloy manufactured vertical shower drain from Harmer is resistant to corrosion and supplied with enhanced protection due to the polyester powder coating. It includes a stainless steel clamp with a plain drain cap, a removable 50mm foul air trap and a 150mm x 150mm tile frame that suits tiled floors.

You can remove the drain cap with ease for replacements and maintenance, or to get to the below 50mm trap. Vertical Harmer shower drain bodies simply push-fit into 110mm ring seal pipe sockets and are compatible with 56mm pipes made from cast iron, HDPE and PVC.

Features & Benefits: Harmer Aluminium Vertical Drain Stainless Steel Clamp & Plain Cap 150mm x 150mm - Tile Floor

  • Plain cap and stainless steel clamp
  • Flow Rate of 1.3 litres per second
  • K3 Load Class to BS EN 1253
  • Up to 300kg vertical loading
  • Recyclable after use
  • Durable structure with protective coating
  • Resistant to corrosion in marine and general atmospheric conditions
  • Pleasing to the eye and effective

Intended for concrete and timber floors, as well as suspended floors where shallow invert pipes are required, aluminium shower drains from Harmer have flow rates up to 1.3 litres a second.

A variety of caps and grates are available for Harmer aluminium shower drains. These options include stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

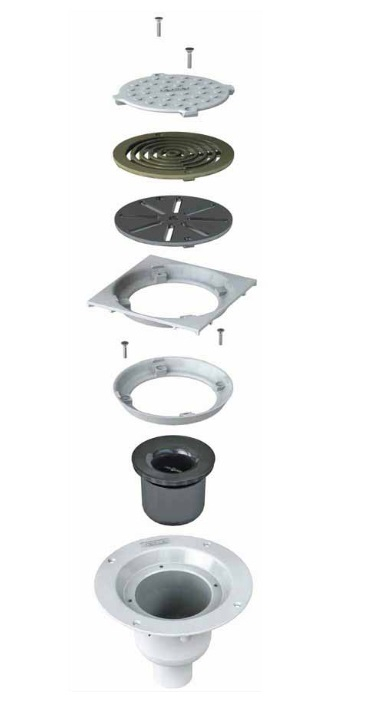

Harmer Aluminium Vertical Drain Contents

  • 1 x plain drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meets British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
