Harmer Aluminium Vertical Drain Stainless Steel Clamp & Plain Cap 200mm x 200mm - Tile Floor

Code:
AVS/CS/T20
Brand:
Harmer

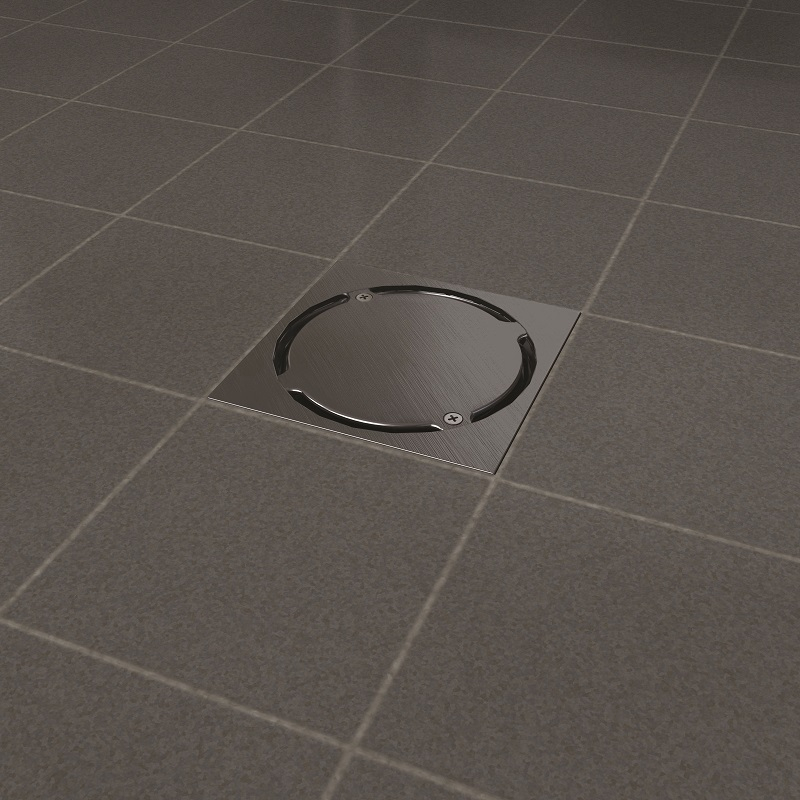

Showcasing a stainless steel clamp with a plain drain cap and a 200mm x 200mm tile frame, this vertical shower drain from Harmer is fabricated from LM6 aluminium alloy with a polyester powder coating for heightened protection which ensures it is robust and strong yet lightweig... Read More

View full product details
View questions about this product
£275.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Dec 30th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Products as described arrived on t…"

Steve L
Description Specification Downloads Q&A

Description

Showcasing a stainless steel clamp with a plain drain cap and a 200mm x 200mm tile frame, this vertical shower drain from Harmer is fabricated from LM6 aluminium alloy with a polyester powder coating for heightened protection which ensures it is robust and strong yet lightweight. The LM6 aluminium alloy is highly corrosion-resistant and can endure marine environments and general atmospheric conditions.

Made from 100% recycled aluminium, this shower drain's body can be recycled once again after completing its life cycle. The body is compatible with 56mm PVC, cast iron and HDPE pipes and can also push fit into 110mm ring seal pipe sockets. Its visually pleasing cap is ideal for tiled flooring and is simple to remove for replacement, cleaning and providing access to the removable 50mm foul air trap below.

Features & Benefits: Harmer Aluminium Vertical Drain Stainless Steel Clamp & Plain Cap 200mm x 200mm - Tile Floor

  • Plain stainless steel cap
  • K3 Load Class to BS EN 1253
  • 1.3 litres per second flow rate
  • Lightweight yet robust and durable
  • Fabricated from LM6 aluminium alloy with polyester powder coating
  • Ideal for tiled flooring
  • Suitable for application in concrete and timber floors
  • 200mm x 200mm tile frame

Specifically designed to comply with the requirements of British and European standard BS EN 1253 for loading, design and flow performance, this Harmer shower drain can endure up to 300kg of vertical loading while coordinating efficiency with an attractive appearance. Providing a flow rate of up to 1.3 litres per second, it is suitable for application in concrete and timber floors, including suspended floors where shallow invert pipes are necessary.

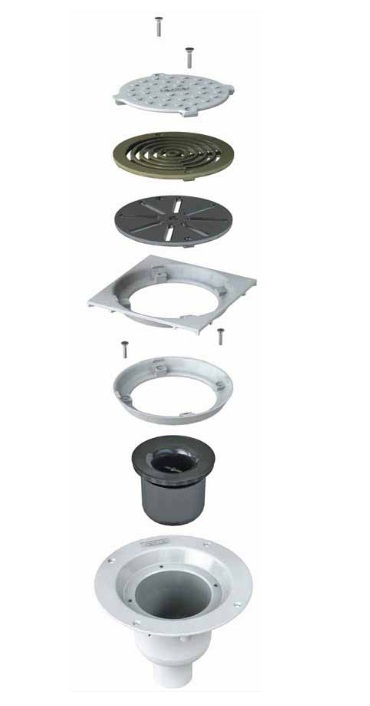

Harmer Aluminium Vertical Drain Contents

  • 1 x plain drain cap
  • 1 x 200mm x 200mm tile frame
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Loading, design and flow performance: Meets the requirements of British and European standard BS EN 1253

Please note:

  • Security fixings are optionally available to order for drain caps in settings where the cap may otherwise be tampered with. Contact us for more information.

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Floor Type Tiled Flooring
Type Domestic Application Concrete
Floors
Timber
