Harmer Aluminium Vertical Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 150 x 150mm

Code:
AVS/RS/T15
Brand:
Harmer

This all-in-one Harmer vertical shower drain unit sports a concentric ring pattern grate, stainless steel clamp and a 150mm x 150mm tile frame. The unit is easily removed and replaced for inspection or clearing thanks to the detachable drain cap, majorly cutting down on mainte... Read More

View full product details
View questions about this product
£230.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Nov 26th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"First class customer service."

Nick Wells
Description Specification Downloads Q&A

Description

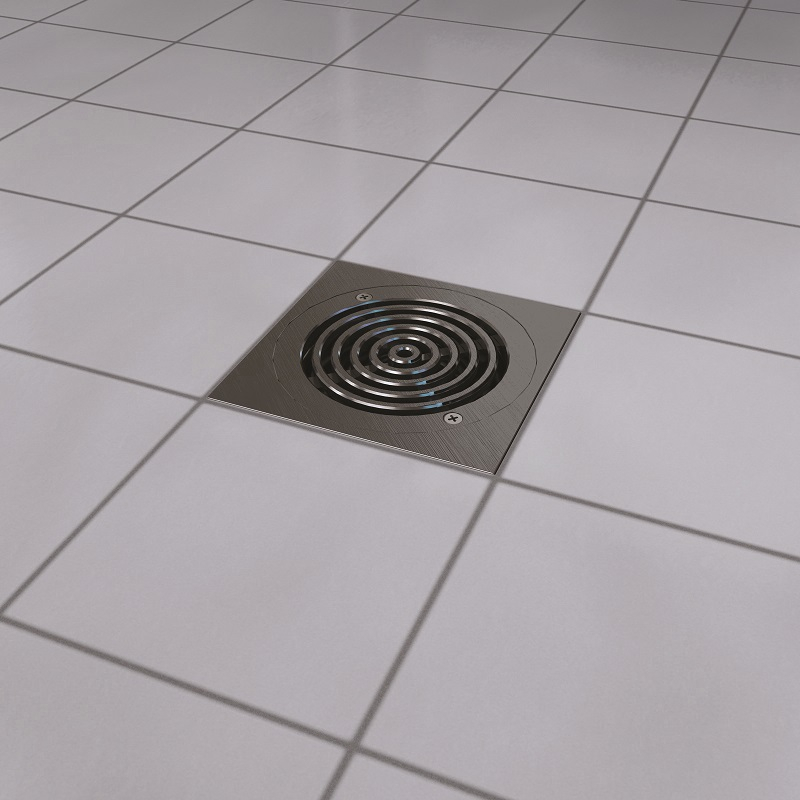

This all-in-one Harmer vertical shower drain unit sports a concentric ring pattern grate, stainless steel clamp and a 150mm x 150mm tile frame. The unit is easily removed and replaced for inspection or clearing thanks to the detachable drain cap, majorly cutting down on maintenance. These shower drain units are fully compatible with 110mm ring seal pipe sockets as well as cast iron, HDPE and PVC pipes. The unit is also supplied with a removable 50mm foul air trap and integral fall in the sump to eliminate common silt build-up.

Light and highly durable, these vertical shower units utilise advanced aluminium alloys and durable polyester powder coatings to produce a dependable system. This shower drain model can boast impressive flow rates of up to 1.3 litres a second and is perfectly suited for timber and concrete floors. These drains are topped off by a range of attractive caps and grates in stainless steel, nickel bronze and aluminium for tiled and sheet flooring.

Features & Benefits: Harmer Aluminium Vertical Drain with Stainless Steel Clamp & Ring Grate - Tile Floor 150 x 150mm

  • Excellent flow rates across the range
  • Comes supplied with a range of fittings to install
  • Compatible with 110mm sealed ring, cast iron, HDPE and PVC pipes
  • Integral fall-in sump combats silt build-up
  • Easy to install, clean, and inspect
  • Lightweight and durable aluminium construction with polyester coating

The entirety of Harmer aluminium shower drains have been specifically designed to meet the requirements of British and European standard BS EN 1253 for design, flow rates and loading whilst still providing a sleek look. Harmer shower drain bodies are manufactured from LM6 aluminium alloy, a perfect pairing for challenging marine applications owing to excellent resistance to corrosion.

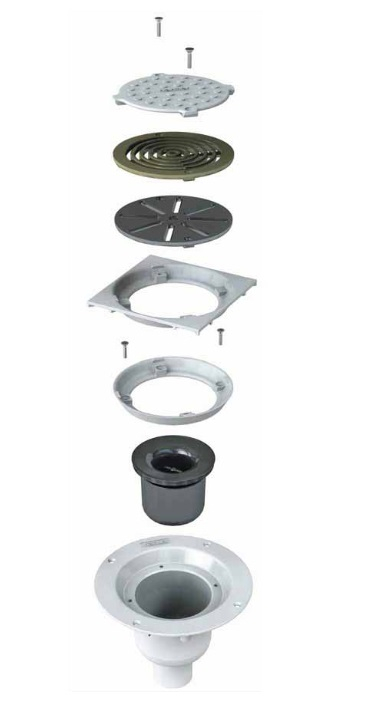

Harmer Aluminium Vertical Drain Contents

  • 1 x ring grate drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x stainless steel clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Loading, design and flow performance: Meets the requirements of British and European standard BS EN 1253

Details

Material Aluminium
Stainless Steel Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Timber
