Harmer Aluminium Vertical Drain with White Clamp & Pebble Cap - Tile Floor 150mm x 150mm

Code:
AVS/WH/T15
Brand:
Harmer

Including a white PPC aluminium clamp with a pebble drain cap and a 150mm x 150mm tile frame, this Harmer vertical aluminium shower drain is one of many. The structure is built from LM6 aluminium alloy which has extra protection through the use of the polyester powder coating.... Read More

View full product details
View questions about this product
£165.00 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Excellent would use again"

Mr David Norman Harris
Description Specification Downloads Q&A

Description

Including a white PPC aluminium clamp with a pebble drain cap and a 150mm x 150mm tile frame, this Harmer vertical aluminium shower drain is one of many. The structure is built from LM6 aluminium alloy which has extra protection through the use of the polyester powder coating. It is also incredibly resistant, as proven in marine and general atmospheric conditions.

Simple to remove, the drain cap takes little effort to clean, replace and put aside to reach the 50mm trap below. Vertical shower drains from Harmer easily push-fit into 110mm ring seal pipe sockets and are functional alongside cast iron, PVC and HDPE 56mm pipes.

Features & Benefits: Harmer Aluminium Vertical Drain with White Clamp & Pebble Cap - Tile Floor 150mm x 150mm

  • Durable LM6 aluminium alloy
  • Recyclable once life cycle is over
  • Pebble cap included
  • Corrosion resistant
  • 1.3 litres a second flow rate
  • Tolerates 300kg vertical loading
  • Structures are lightweight yet strong
  • K3 Load Class (BS EN 1235)
  • Advanced in style and efficiency

Ideal for applications in timber and concrete floors, Harmer's aluminium drains are equally fantastic for suspended floors that need shallow invert pipes. Drains supply caps and grates for tiled and sheet flooring, including stainless steel, nickel bronze and aluminium materials.

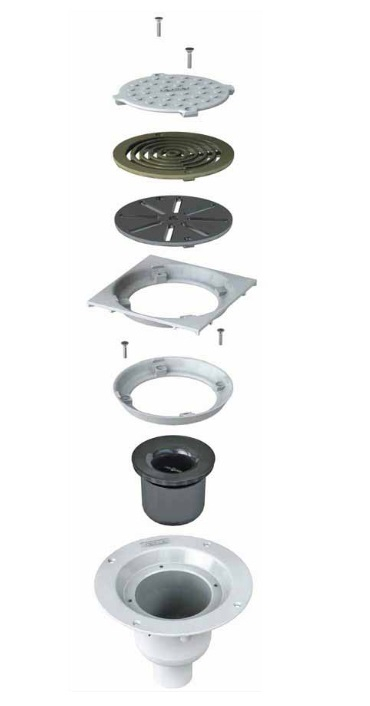

Harmer Aluminium Vertical Drain Contents

  • 1 x pebble drain cap
  • 1 x 150mm x 150mm tile frame
  • 1 x white PPC aluminium clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x vertical drain body
  • Stainless steel screws

Standards & Certification

  • Meets the requirements of British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • Security fixings option available for drain caps in areas where the cap may otherwise be tampered with. Contact our sales team for information.

Details

Material Aluminium Product Type Shower Drain Weight Class K3 Type Domestic
Application Concrete
Floors
Timber
