Harmer Aluminium Horizontal Drain Nickel Clamp & Ring Grate - Sheet Floor

Code:
AHS/RN
Brand:
Harmer

One of Harmer's strong and lightweight LM6 aluminium alloy shower drains, this horizontal shower drain is provided with a nickel bronze clamp and a concentric ring drain grate cap. You can clean and replace the drain cap by easily removing it, which also lets you reach the 50m...Read More

View full product details
View questions about this product
£230.00 Incl. VAT Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Jul 4th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Very helpful staff"

Neil Randall
Description Specification Downloads Q&A

Description

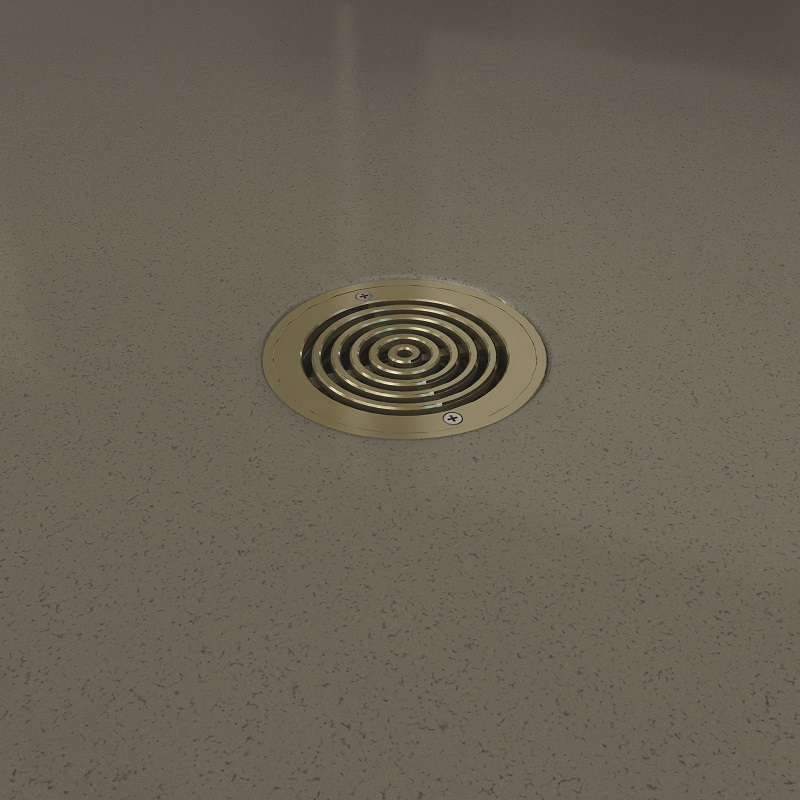

One of Harmer's strong and lightweight LM6 aluminium alloy shower drains, this horizontal shower drain is provided with a nickel bronze clamp and a concentric ring drain grate cap. You can clean and replace the drain cap by easily removing it, which also lets you reach the 50mm trap beneath it.

With up to 0.8 litres a second flow rates, Harmer's horizontal shower drain bodies are resistant to corrosion, polyester powder coated for extra protection, and compatible with 56mm pipes that are made from PVC, HDPE and cast iron. They also feature an integral fall in the sump that in turn stops silt from gathering.

Features & Benefits: Harmer Aluminium Horizontal Drain Nickel Clamp & Ring Grate - Sheet Floor

  • Recyclable after use
  • Resistant to corrosion in marine and general conditions
  • Tolerates up to 300kg vertical loading
  • Ring grate cap
  • Flow Rate of 0.8 litres per second
  • Load Class of K3 (BS EN 1253)
  • Made from quality LM6 aluminium alloy
  • Polyester powder coated to enhance protection
  • Designed to look good and last

Harmer horizontal drains can be used in timber and concrete floor applications and are completed with a selection of stainless steel, nickel bronze and aluminium caps and grates for tiled and sheet flooring.

Harmer Aluminium Horizontal Drain Contents

  • 1 x pebble drain cap
  • 1 x nickel bronze clamp
  • Clamp screws
  • 1 x 50mm foul air trap (FAT)
  • 1 x two-inch outlet horizontal drain body
  • Stainless steel screws

Standards & Certification

  • Meets British and European standard BS EN 1253 for design, flow performance and loading

Please note:

  • This product includes stainless steel screws, a drain cap, a clamp and clamp screws, a 50mm foul air trap and a horizontal drain body with two-inch outlet.
  • Option available to order security fixings for drain caps in areas where the cap may be tampered with. Contact our sales team for more information.

Details

Material Aluminium Product Type Shower Drain Weight Class K3 Type Domestic
